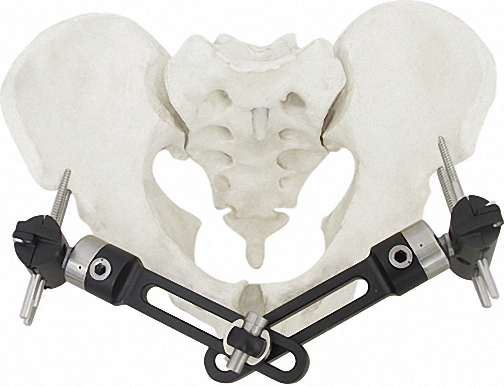

Titanium Bone Fixator Kit in Sleek White and Black

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Basic Information

Model NO.

External Fixation

Feature

Reusable

Certification

CE, ISO13485

Color

White & Black

Usage

Bone Fixation

Material Type

Titanium Alloy & Stainless Steel

Name

External Fixator

Package

Box

Specification

50*50*50CM

Origin

China

HS Code

90211000

Capacity

500,000 Pieces/Year

External Fixator -- The Pinnacle of Modular Fixation Systems

⚙️

Groundbreaking technology and intuitive, user-friendly operation revolutionizes orthopedic treatment.

📍

Facilitates independent arrangement of bone screws for precise proximal and distal fracture management.

⚡

Innovative snap-fit design ensures streamlined and time-efficient surgical procedures.

🔬

Premium medical-grade aluminum and carbon fiber materials provide exceptional clarity and durability.

🛡️

Provides unparalleled stability and flexibility, catering to diverse medical needs with a robust framework.

📦

Compact, space-saving frame for ease of use and convenient transport for medical professionals.

🦴

Expertly designed for complex fractures and soft tissue loss, offering balance and convenience.

✅

Guarantees straightforward, effective, and reliable usage for practitioners and patients alike.

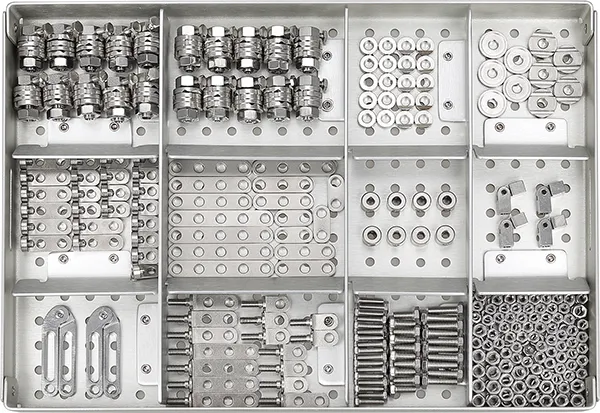

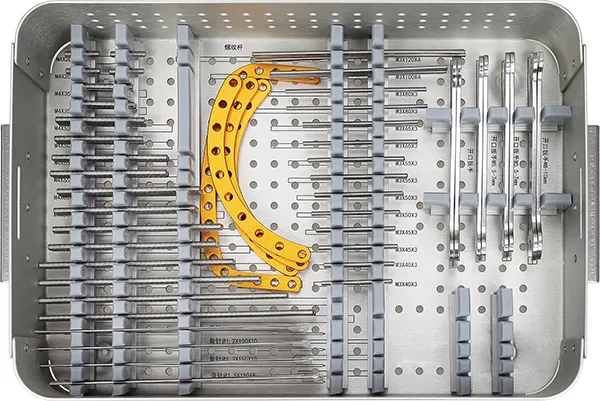

Technical Components List

Component Name	Specifications	Quantity
Independent Coupling	φ6*φ14(1.5-2.0)	10
Independent Coupling	φ6*φ14(1.5)	10
Needle Clip	φ4*φ9 (φ1.0)	5
Needle Clip	φ4*φ9 (φ1.5)	5
Cone Washer	φ4*φ9	10
Double Groove Needle Clamp	φ4*φ14(2.0-2.5)	5
Post With Threaded Post	φ415(1 Hole)M4	8
Connection Plate	φ4*50 (5 Hole)	4
Straight Connection Plate	φ4	4
Hex Nut	M3 / M4	90 each
Bone Screws	1.0150 / 1.2150	20 each

System Applications

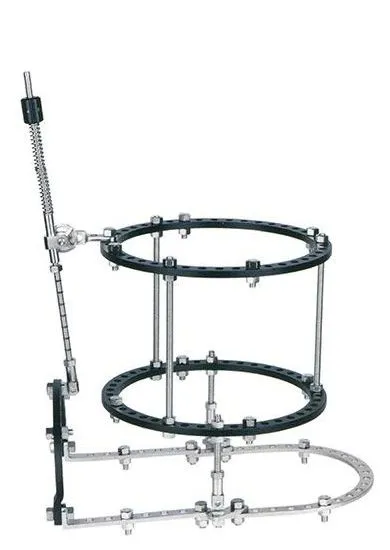

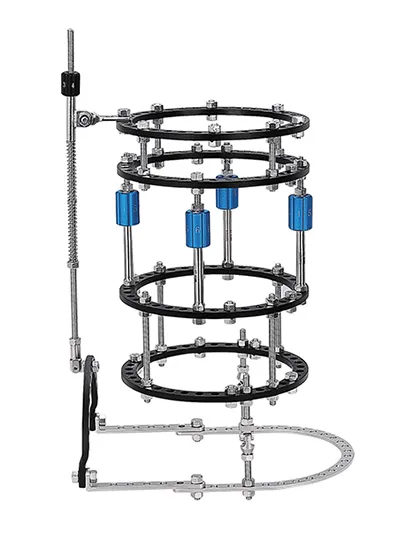

Lower Limbs Lengthening Fixator

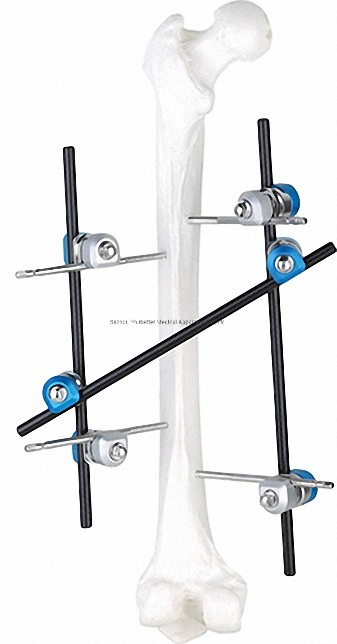

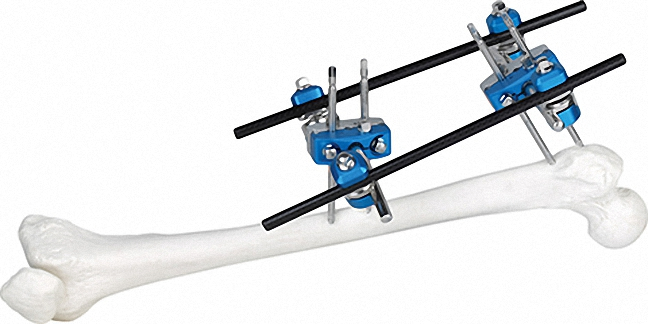

Orthopedic External Fixator

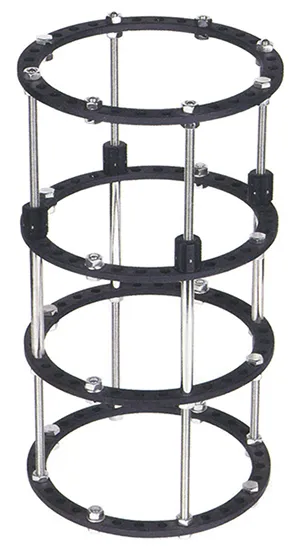

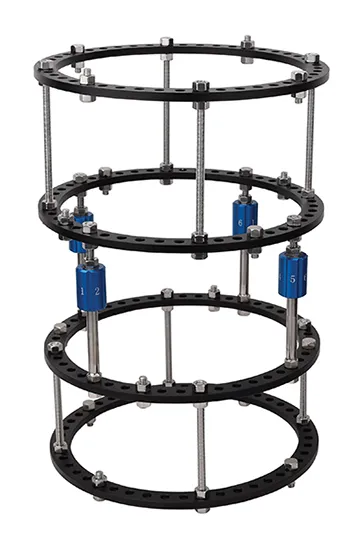

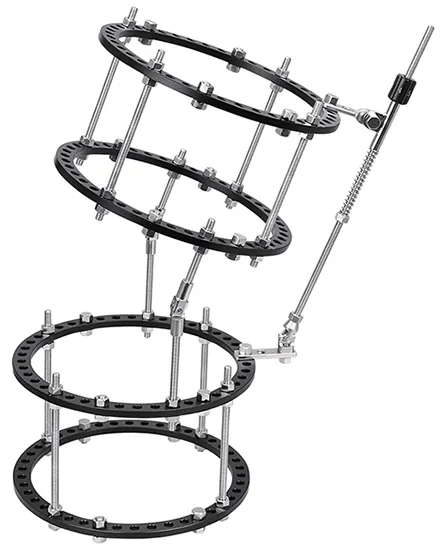

Ring Fixator (Tibia/Femur)

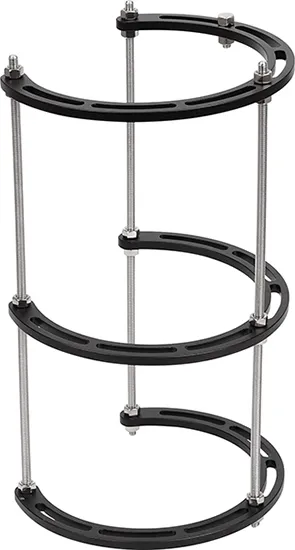

2/3 Ring Fixator

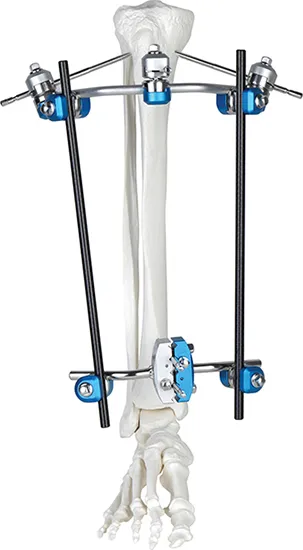

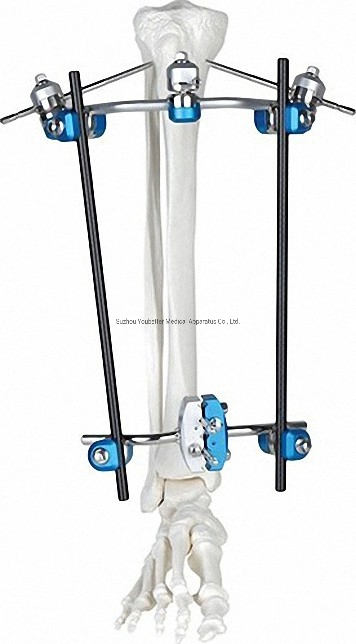

Ankle Joint Fixator

Knee Joint Fixator

Frequently Asked Questions

What materials are used in the External Fixator?

The system is crafted from high-quality Titanium Alloy and Stainless Steel, with some components utilizing medical-grade aluminum and carbon fiber for better X-ray visualization.

Is the External Fixator system reusable?

Yes, the basic information specifies that the features of this external fixation system are designed to be reusable after proper sterilization.

What certifications does the product hold?

This product is fully compliant with international medical standards, holding both CE and ISO13485 certifications.

For which body parts can this fixator be used?

It is highly versatile and can be used for bone fixation in various areas including the Tibia, Femur, Humeral, Ankle joints, and Knee joints.

What is the advantage of the snap-fit design?

The innovative snap-fit design allows for a more streamlined and time-efficient surgical procedure, reducing the overall time required in the operating room.

What is the annual production capacity for this model?

We maintain a high production capacity of approximately 500,000 pieces per year to meet global medical demands.
