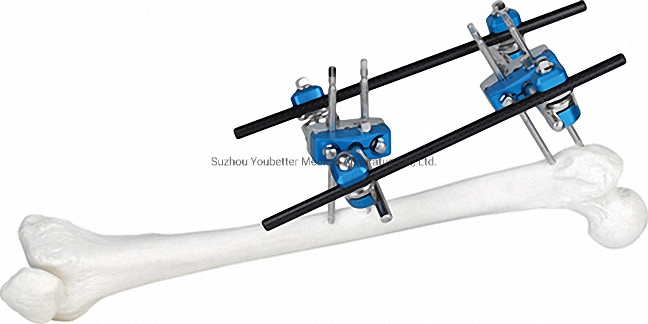

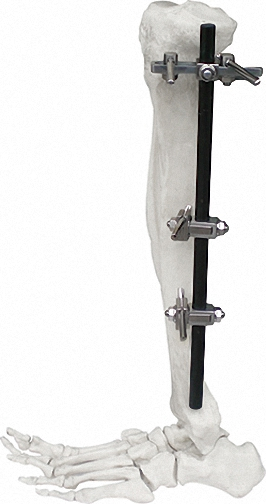

🔬 External Fixator - The Pinnacle of Modular Fixation Systems
Product Features
- Distinguished by groundbreaking technology and intuitive, user-friendly operation.
- Facilitates independent arrangement of bone screws for proximal and distal fractures.
- Innovative snap-fit design ensures streamlined, time-efficient surgical procedures.
- Uses premium Medical aluminum and carbon fiber for enhanced fracture visualization.
- Provides unparalleled stability and flexibility for diverse medical needs.
- Compact, space-saving frame designed for ease of use and effortless transport.
- Addresses complex fractures and soft tissue loss with variety and convenience.
- Guarantees straightforward, effective, and reliable usage for bone fixation excellence.

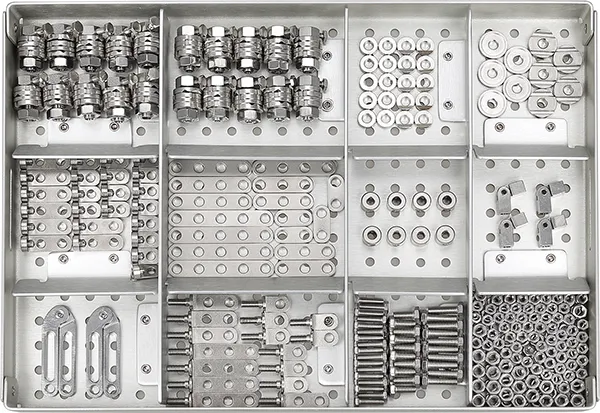

⚙️ Technical Specifications & Components
| Component Description |
Specification |
Qty |
| Independent Coupling | φ6*φ14(1.5-2.0) / φ6*φ14(1.5) | 10/10 |
| Needle Clip | φ4*φ9 (φ1.0) / φ4*φ9 (φ1.5) | 5/5 |
| Cone Washer | φ4*φ9 / φ4*φ14 | 10/5 |
| Double Groove Needle Clamp | φ4*φ14(2.0-2.5) | 5 |
| Post With Threaded Post | φ4*15 / φ4*25 / φ3*15 | 8 each |
| Connection Plate | φ4*20 to φ4*50 (2-5 Holes) | 4 each |
| Straight Connection Plate | φ4 / φ3 / (Hinge φ4*35) | 4 / 4 / 2 |
| Fixator (Hinge) | M4*20mm | 4 |
| Bolts | M3*12 / M4*10 / M4*14 | 17 / 10 / 10 |
| Hex Nut | M3 / M4 | 90 each |
| 1/3 Ring / U Ring | 10 Hole φ4*120 L / 21 Hole φ4*110 L | 1 / 1 |
| Straight Threaded Rod | M3 (40mm-120mm) / M4 (20mm-155mm) | Various |
| Bone Screws | 1.0*150 / 1.2*150 / 1.5*150 | 20 / 20 / 8 |
| Open Spanner | 5.5-7mm / 8-10mm | 4 / 4 |

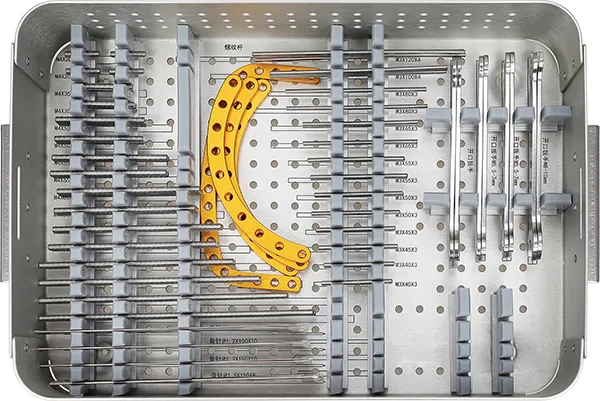

| Instrument Set | Full Professional Kit | 1 |
🔍 Specialized Fixator Variants

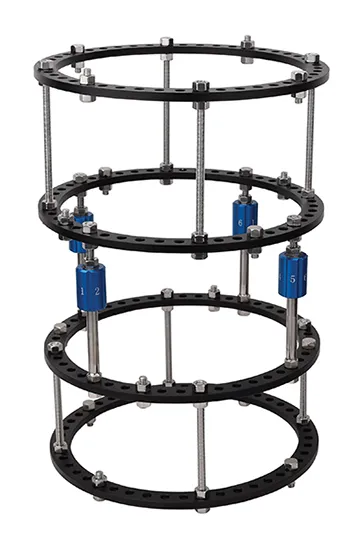

Lower Limbs Lengthening (Tibia/Femur)
Humeral & Tibial Lateral Epicondyle

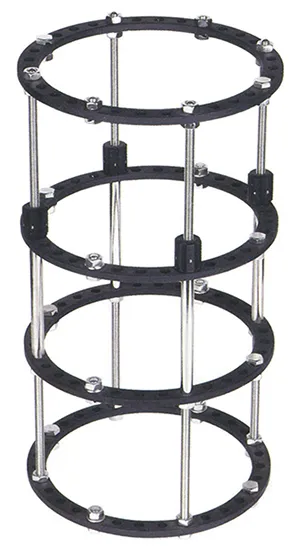

Full Ring Fixator (Tibia/Femur)

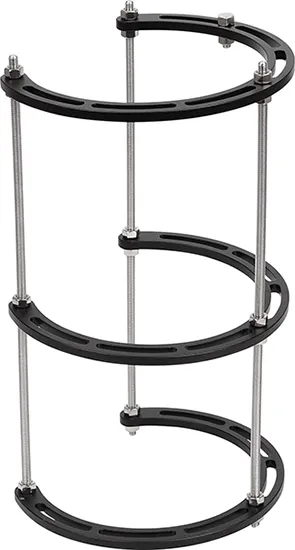

2/3 Ring Fixator (Tibia/Femur)

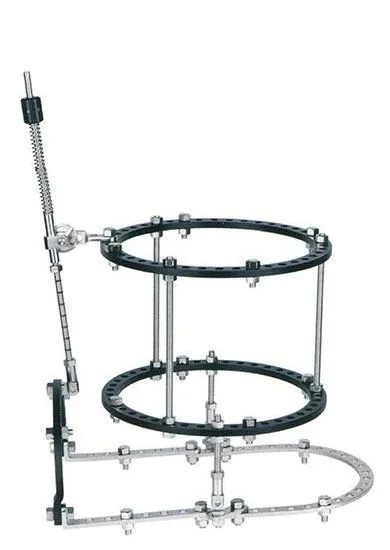

Ankle Joint Fixator (Equinus)

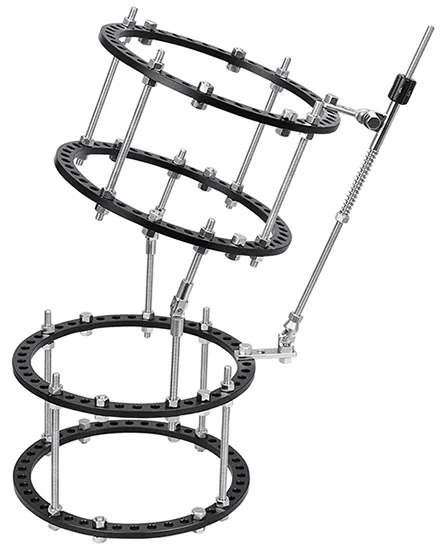

Knee Joint Fixator
❓ Frequently Asked Questions
1. What are the primary applications of this External Fixator?
The system is designed for effective bone fixation, specifically managing proximal and distal fractures, complex fractures, and cases involving soft tissue loss.
2. What materials are used to ensure product quality and visibility?
We utilize premium Medical aluminum, carbon fiber, Titanium Alloy, and Stainless Steel. These materials provide high strength-to-weight ratios and enhance fracture visualization during imaging.
3. How does the snap-fit design benefit surgical procedures?
The innovative snap-fit design allows for a more intuitive and streamlined assembly process, significantly reducing the time required for surgical procedures.
4. Is this external fixation system reusable?
Yes, the components are designed to be reusable, meeting the rigorous sterilization and durability standards required for medical orthopedic equipment.
5. Can the bone screws be arranged independently?
Absolutely. The system facilitates the independent arrangement of bone screws, providing surgeons with maximum flexibility to address specific fracture patterns.
6. What certifications does the product hold?
Our External Fixators are fully certified with CE and ISO13485 standards, ensuring compliance with international medical device quality and safety regulations.
