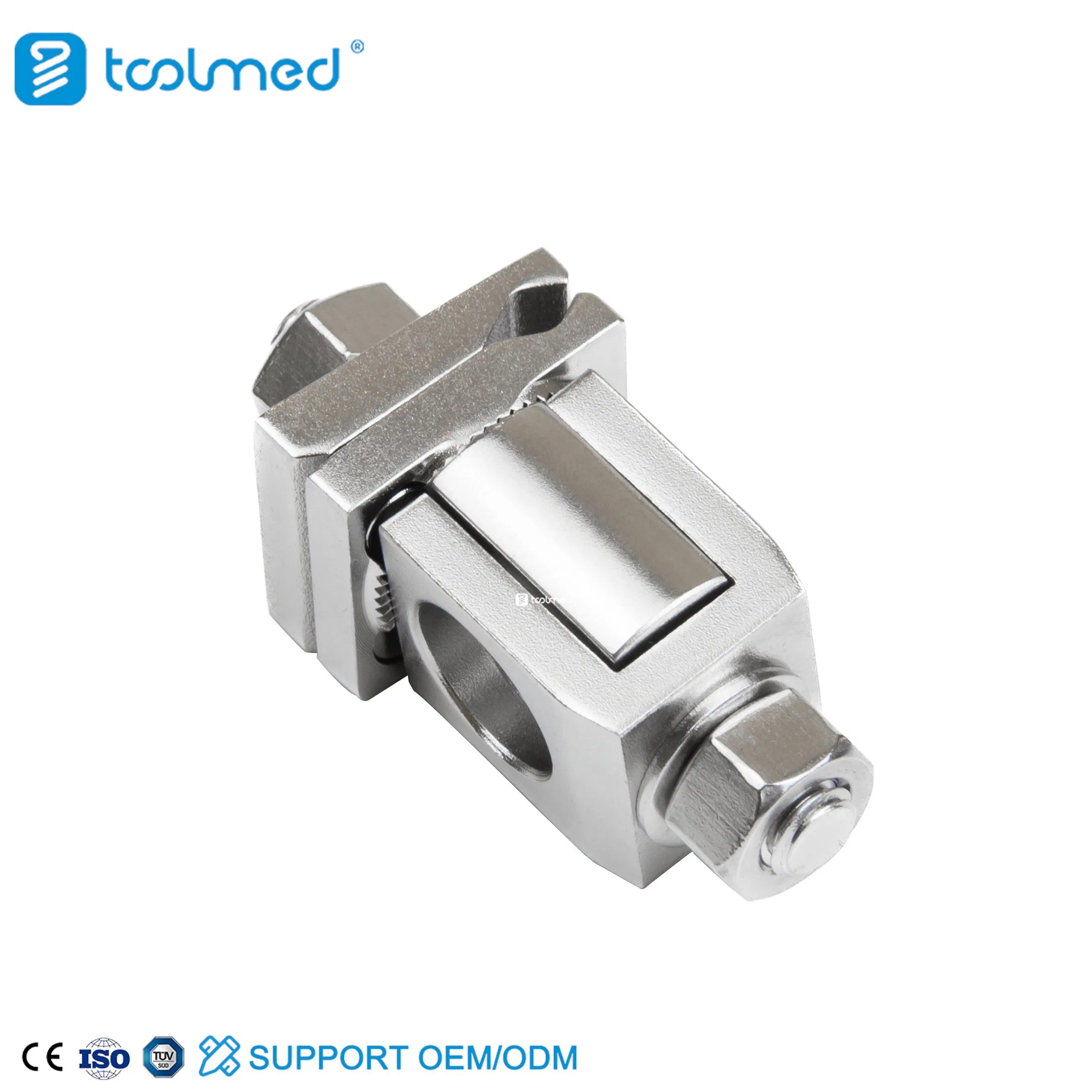

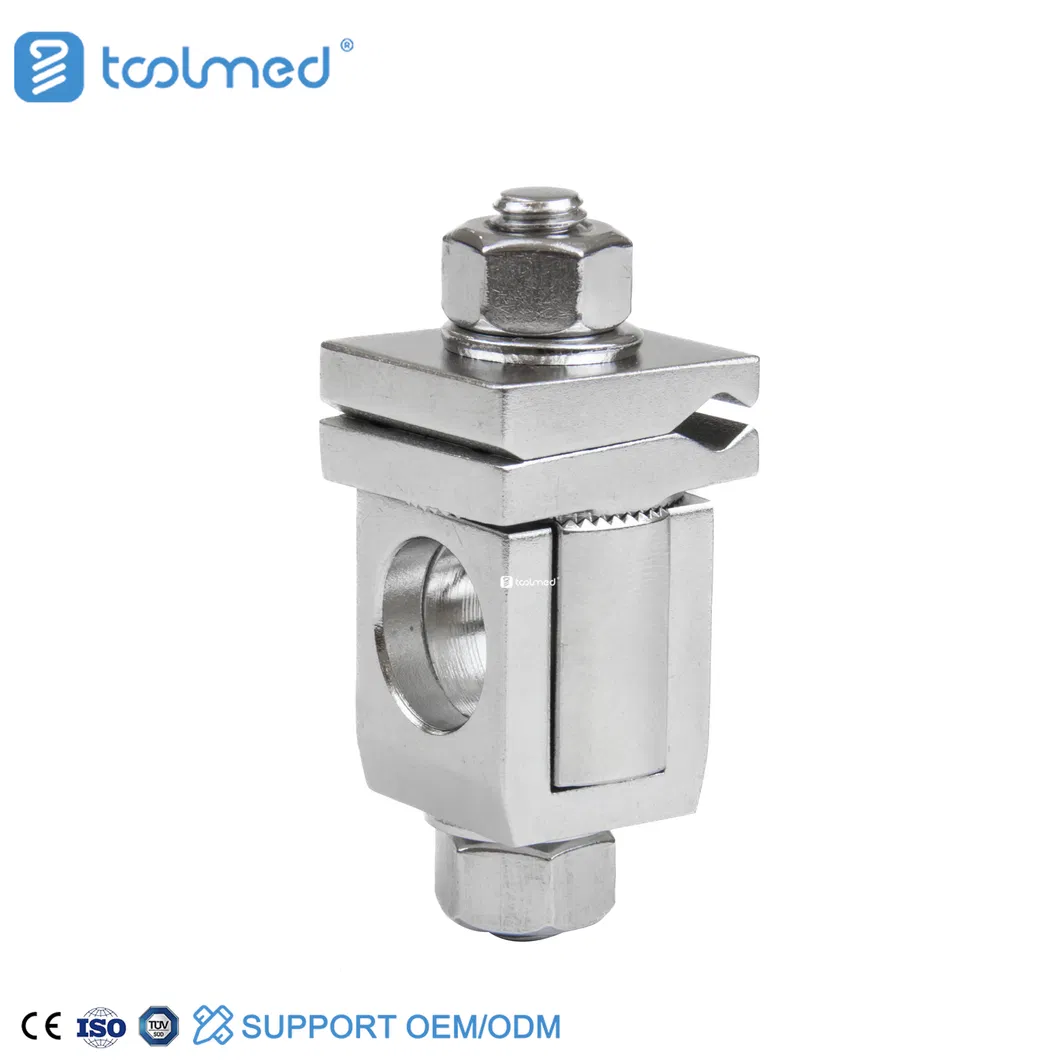

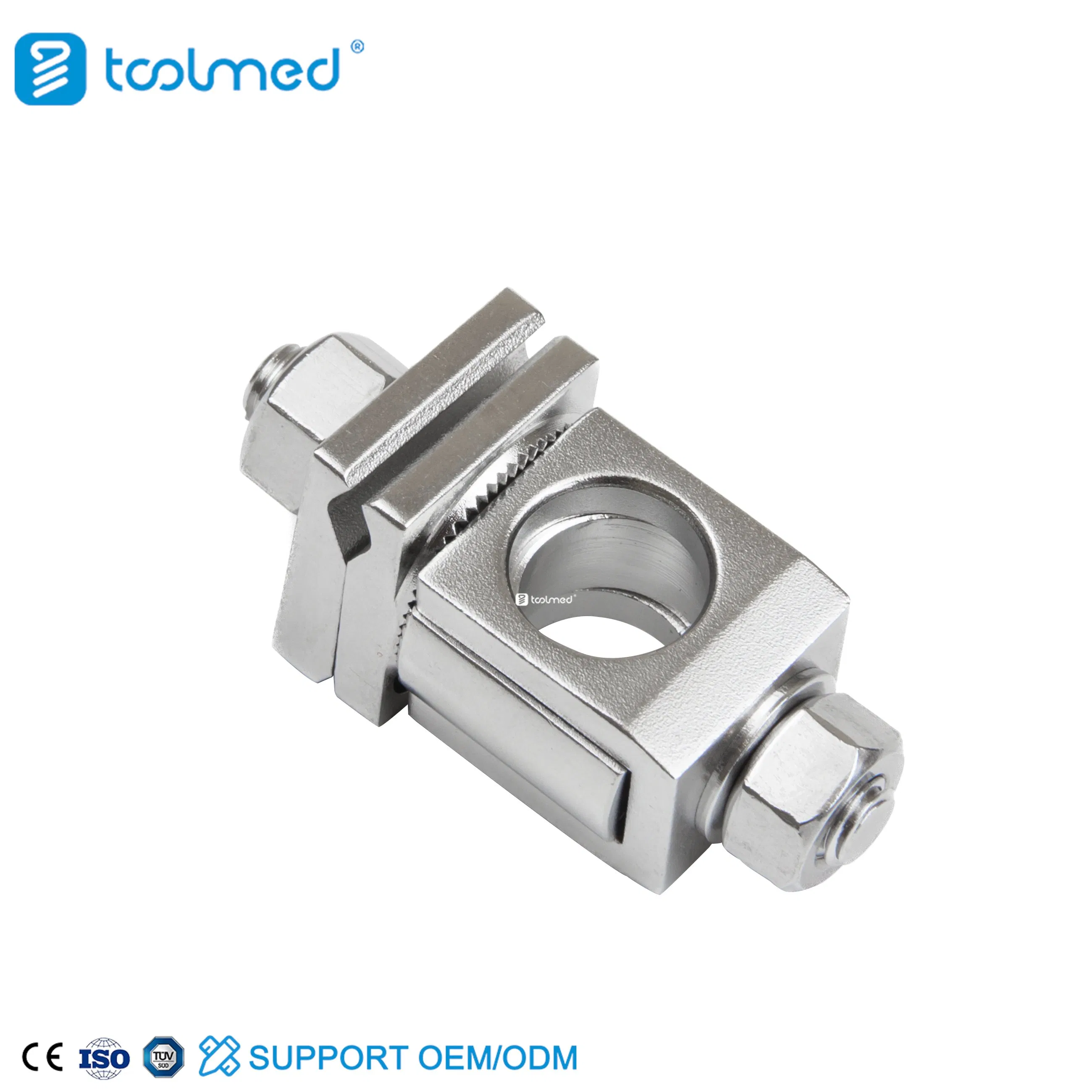

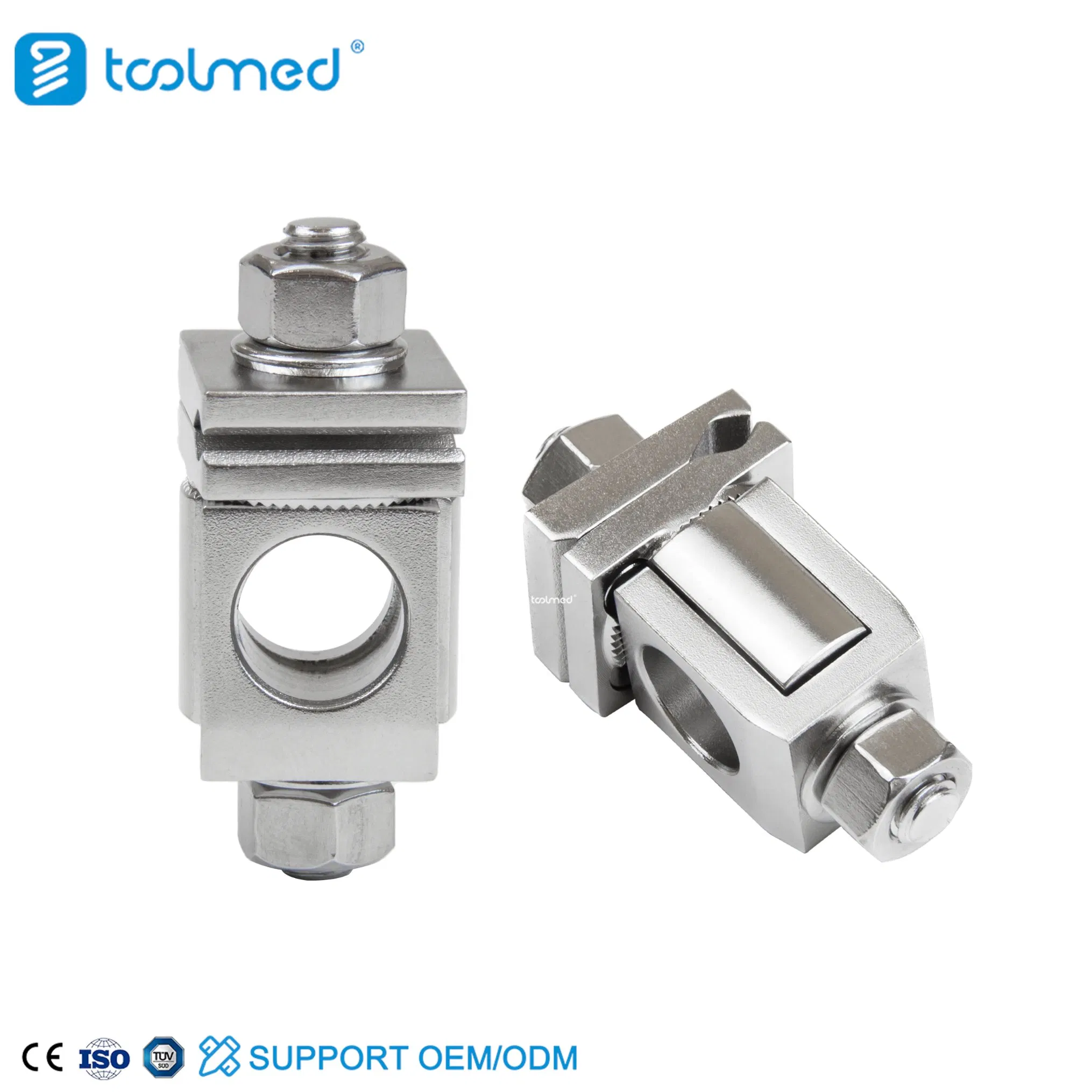

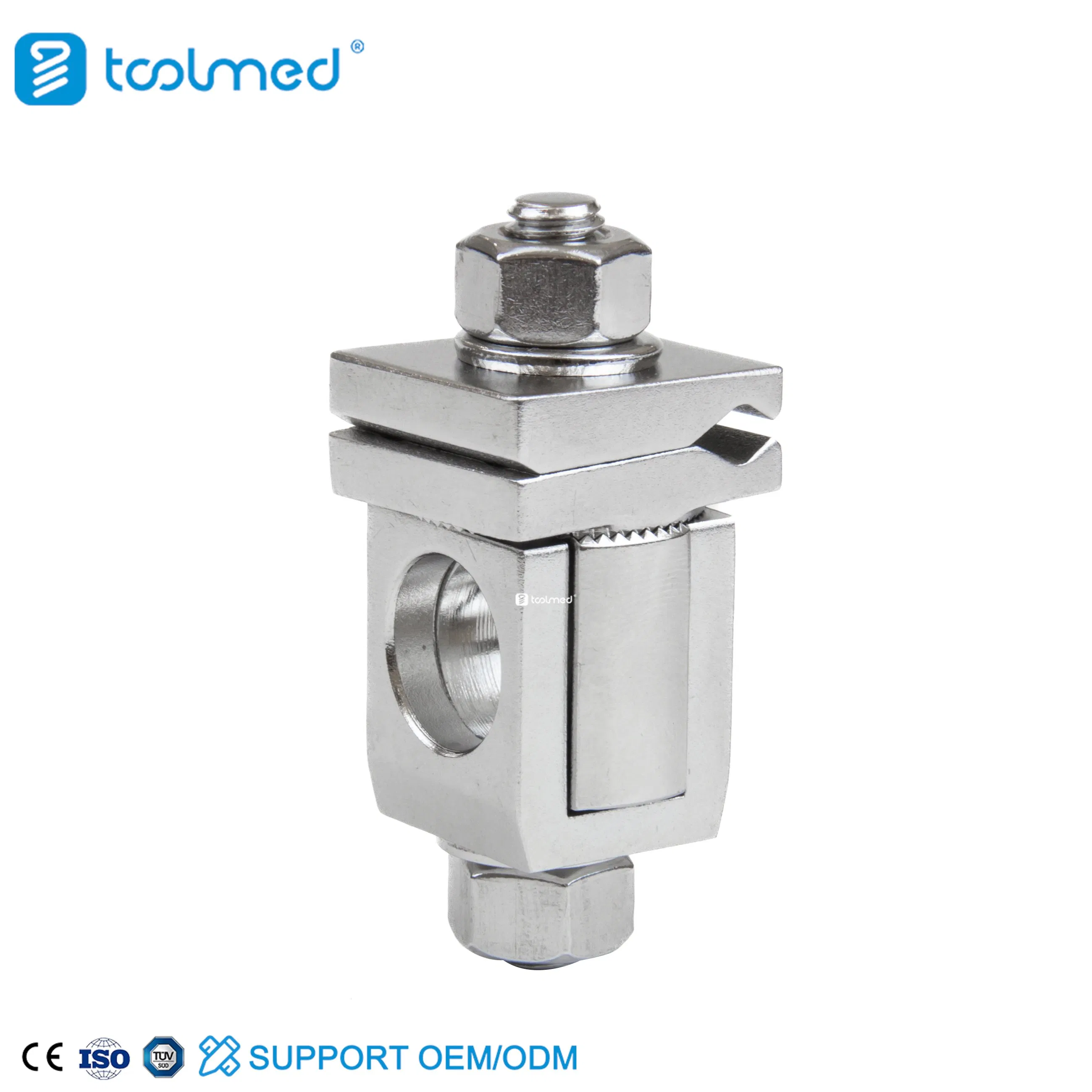

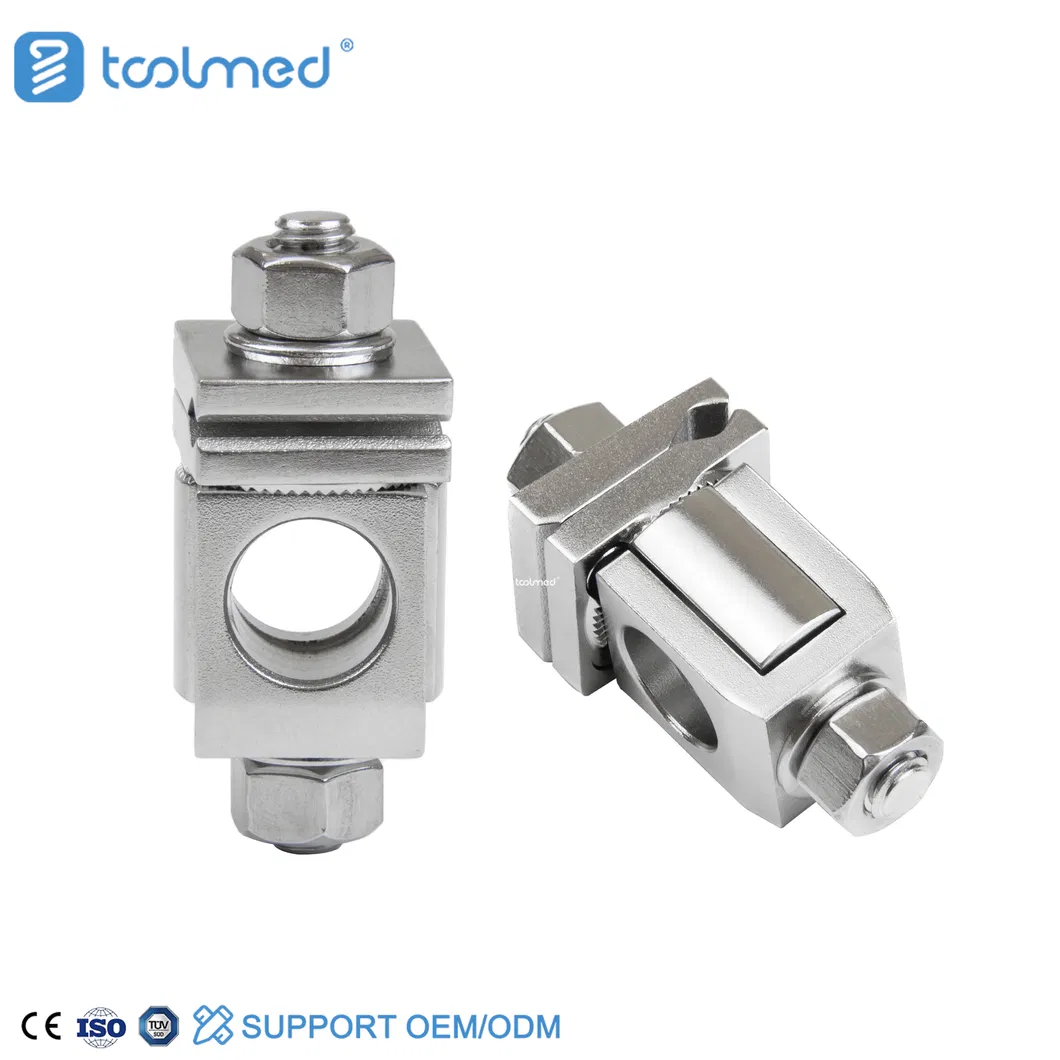

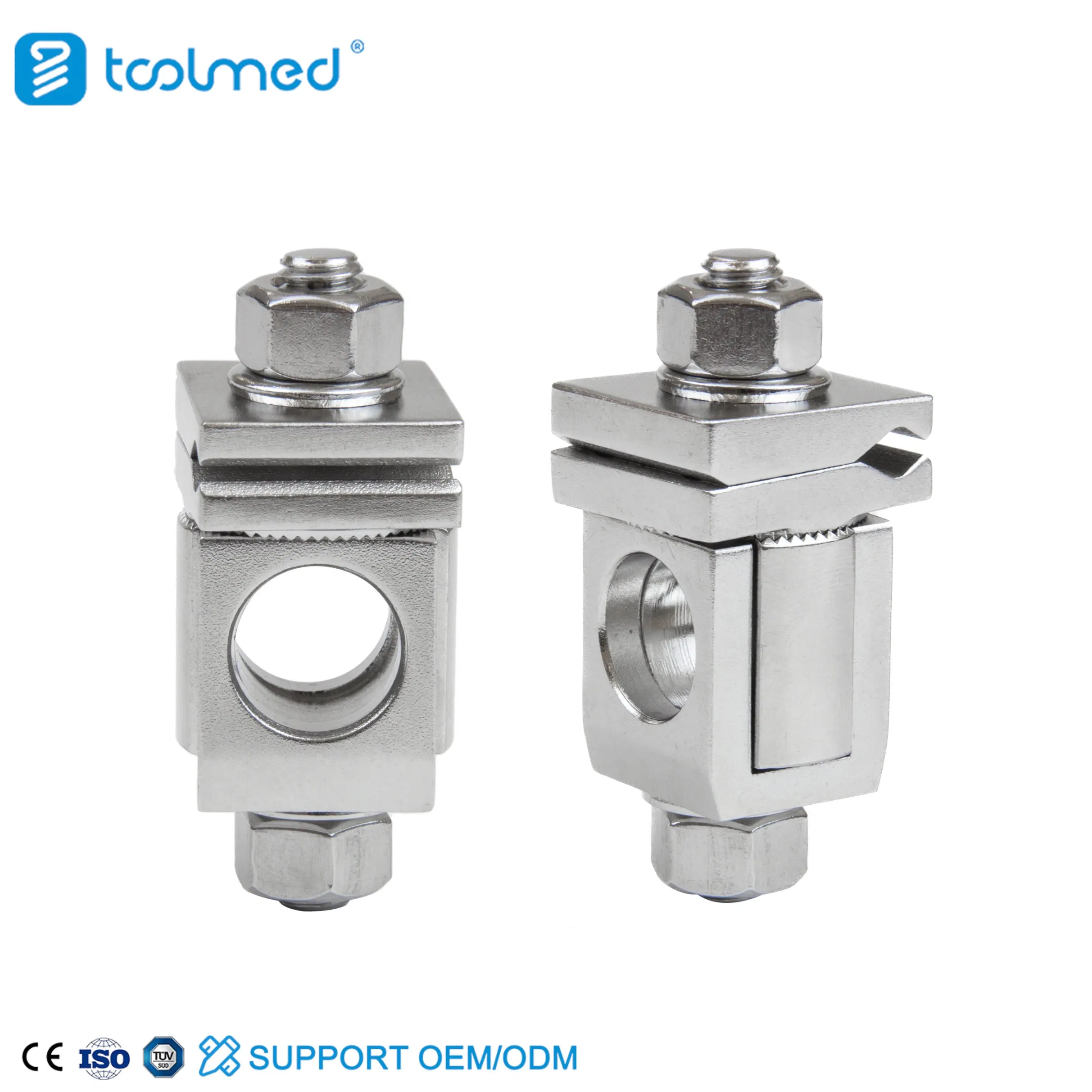

Pin Rod Coupling Connector 11mm to 5mm for Ilizarov / Circular External Fixator System

1 / 5

Pin Rod Coupling Connector 11mm to 5mm for Ilizarov / Circular External Fixator System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

5400-0401

Material

Stainless Steel

Feature

Reusable

Certification

CE, ISO13485

Group

Adult

Warranty

1 Year

After-Sale Service

Online Technical Support

Transport Package

Plastic or Carton

Origin

China

HS Code

9018909999

Production Capacity

10000 Pieces/Month

Product Advantages

Enables Hybrid Frame Construction Provides critical versatility by securely connecting larger 11mm load-bearing rods to smaller 5mm Schanz pins or wires, allowing for stable, customized hybrid external fixator configurations.
Ensures Rigid & Stable Connection Delivers a high-strength, wobble-free interface between components, which is essential for maintaining fracture reduction and preventing micro-motion that could compromise bone healing.
Universal Compatibility & Interchangeability Designed to industry-standard dimensions (Ø11/5mm), serving as a universal spare part compatible with major Ilizarov and circular fixation systems.

Key Features

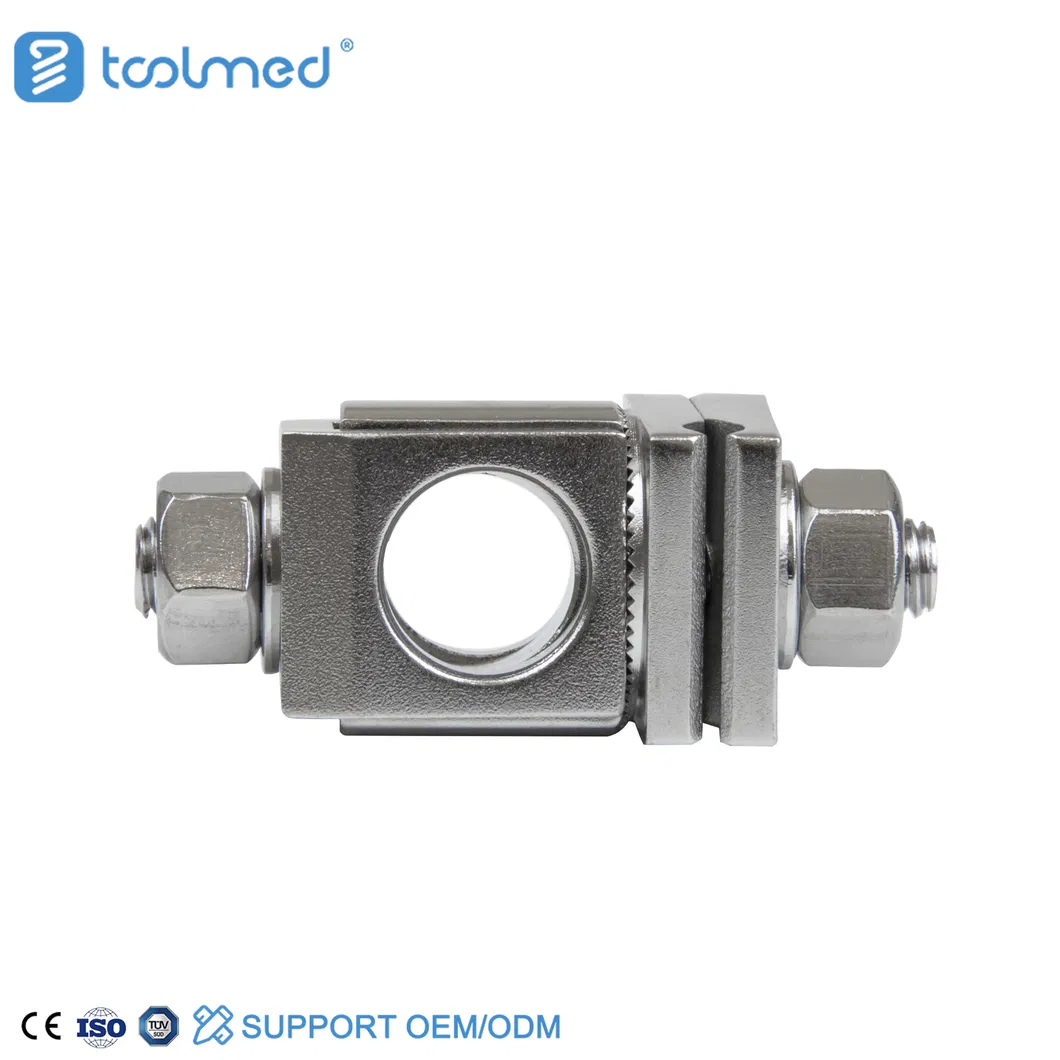

Precision Machined Threads & Locking Mechanism Features accurately tapped threads for the 11mm rod and a smooth bore with a secure locking screw for the 5mm pin.
Compact & Low-Profile Design Engineered with a minimal footprint to reduce bulk around the surgical site, improving patient comfort and wound care.
Corrosion-Resistant Medical-Grade Material Manufactured from ASTM F138 stainless steel or titanium, ensuring long-term durability and resistance to repeated sterilization.

Main Applications

Constructing Multi-Level Circular Frames Core component for building Ilizarov or Taylor Spatial Frames™, connecting longitudinal rods to arches or rings.
Creating Hybrid Fixation Constructs Essential for combining tubular external fixator stability with fine-wire fixation flexibility in complex fractures.
Frame Reinforcement & Revision Surgery Used to add secondary stability to existing frames or replace damaged couplings without dismantling the structure.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional manufacturer specializing in orthopedic medical instruments.

What is your payment method?

We accept various payment methods including T/T, Western Union, and Paypal for your convenience.

What is your delivery time?

We maintain a significant stock of standard products and can typically ship orders within 1 week when stock is available.

What is the delivery way?

Orders are shipped via major international couriers such as DHL, UPS, FEDEX, and TNT to ensure safe and timely delivery.

Do you provide samples?

Yes, we offer free samples for quality evaluation; customers only need to cover the freight costs.

What is the warranty for your products?

We stand by our quality and offer a 5-year warranty for our orthopedic products.
