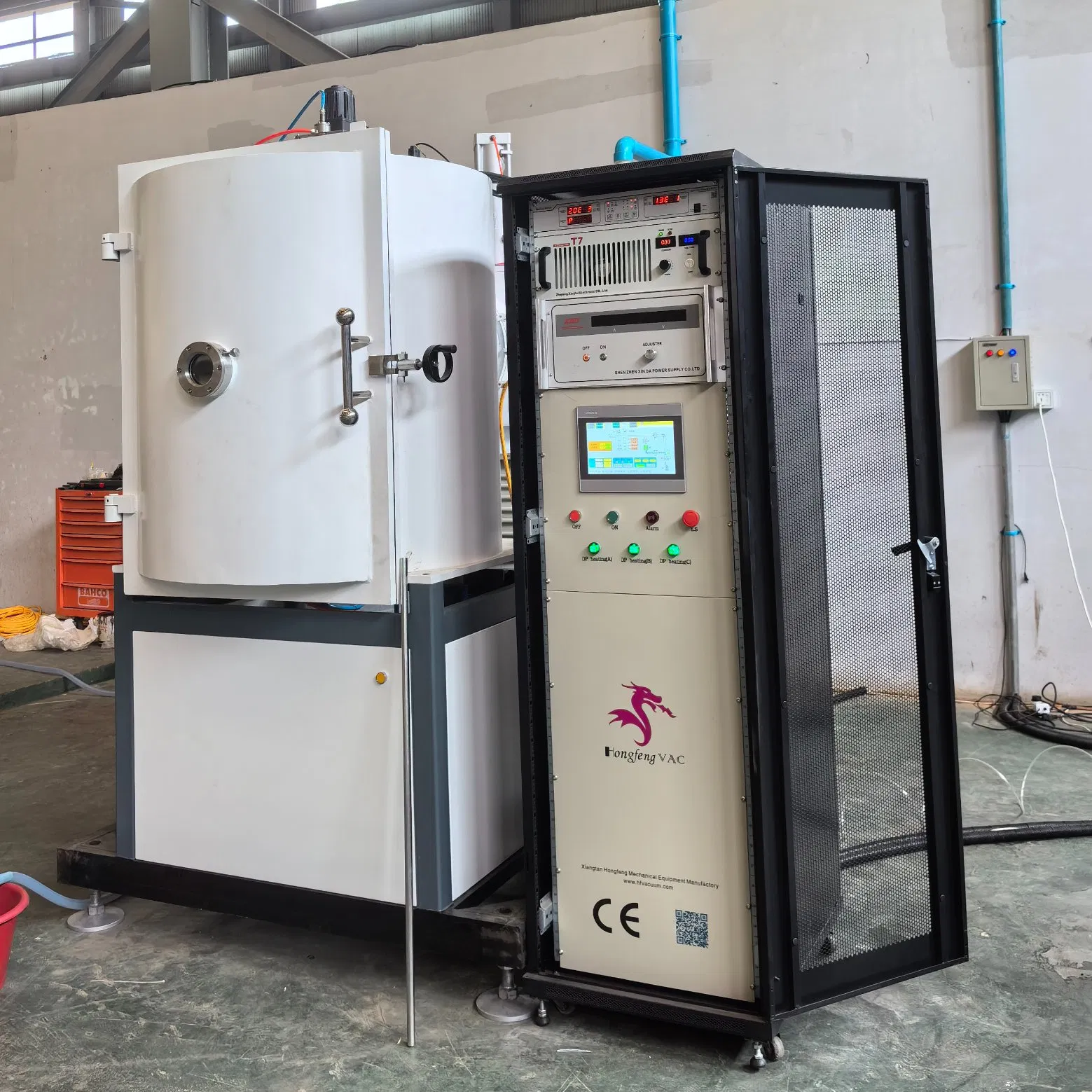

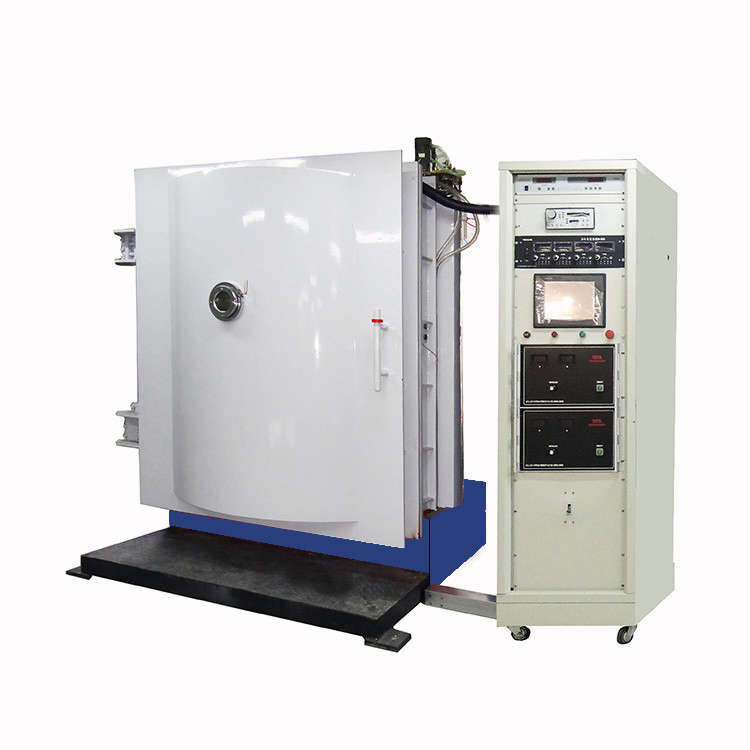

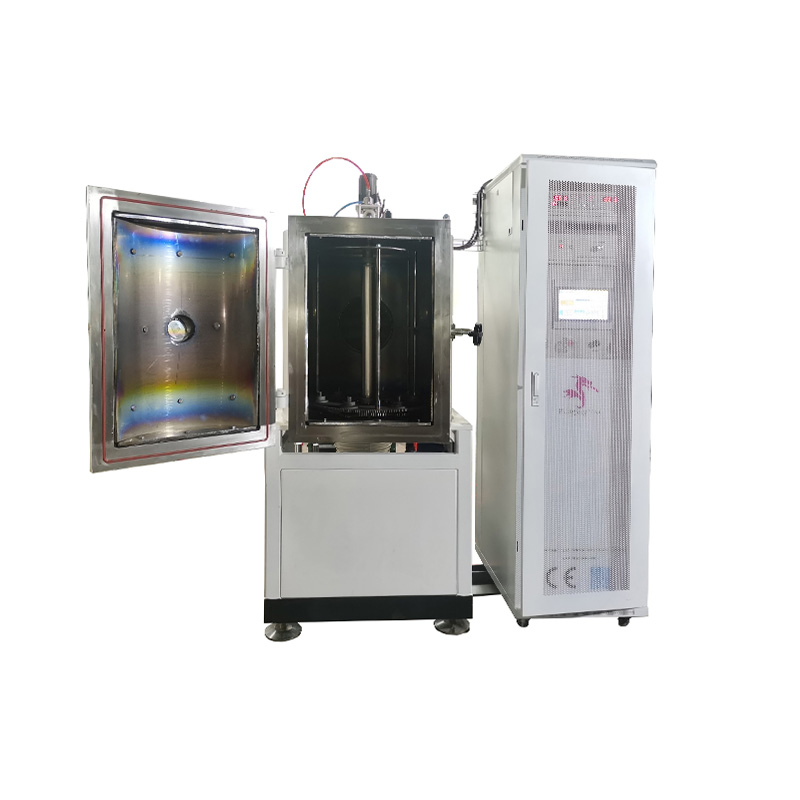

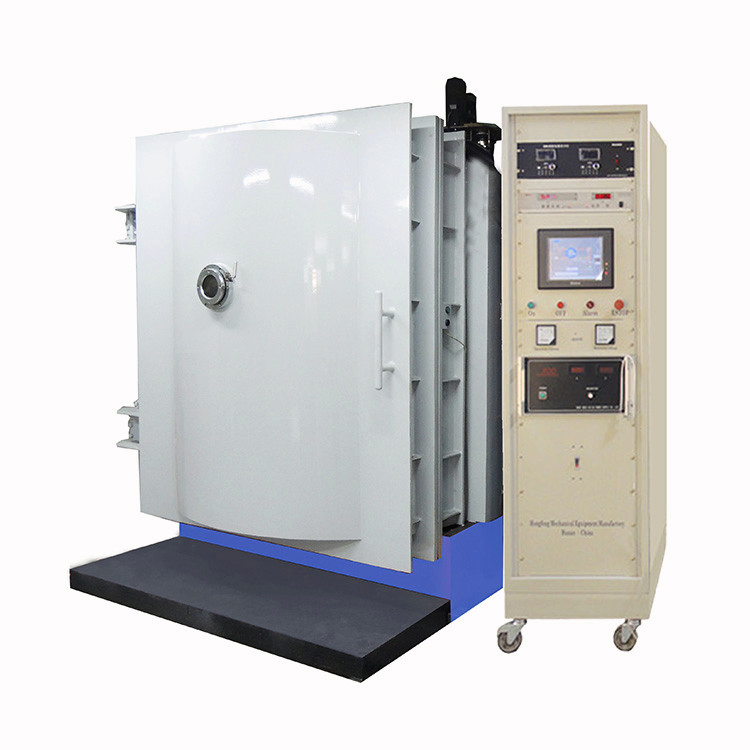

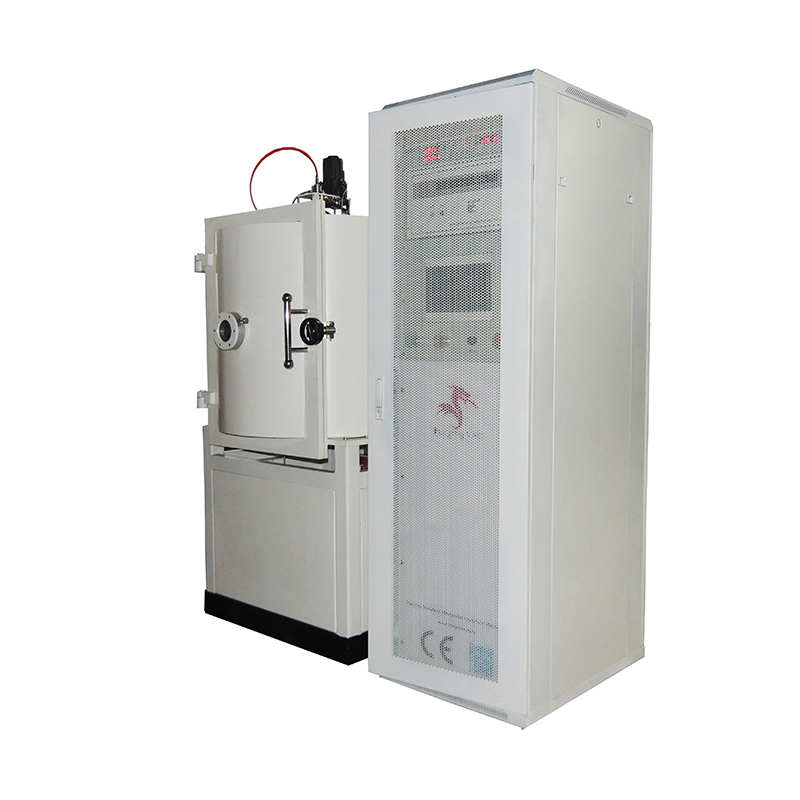

Vacuum Plating Silver Thin Film Deposition Magnetron Sputtering System
The equipment features a reasonable structure, delivering uniform coating of high quality. It offers exceptional pumping speeds, short cycle times, high efficiency, and ease of operation. With low energy consumption and stable performance, it is widely utilized in the automotive, audio, electronics, and various small appliance industries, as well as for toys, mobile phones, reflective cups, and cosmetics.
DC magnetron sputtering coating machines are typically employed for direct sputtering coating across various substrates, including plastics, glass, metals, and ceramics.

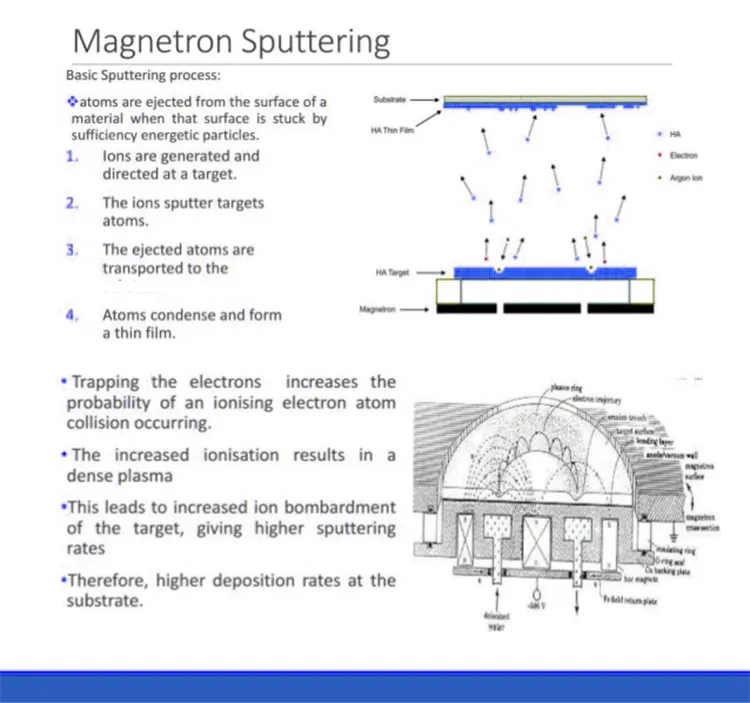

Over a decade has been dedicated to manufacturing and designing magnetrons in rectangular, cylindrical, and circular configurations of various sizes. Specialized targets that can be directly cooled or bonded are available, engineered to fit most magnetron dimensions. Magnetic fields define the behavior and properties of ion-charged particles used for sputtering, enhancing productivity and reproducibility.
| Model Number | SP-1000 | SP-1200 | SP-1400 | SP-1800 |
|---|---|---|---|---|
| Dimension of Vacuum Chamber (dia*h) | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 |
| Chamber Material | Carbon steel, SUS304 or SUS316L | |||
| Sputtering Cathodes | ≥1 sets, DC sputtering system, cylindrical or rectangle | |||
| Pumping System | Turbo molecular pumps or diffusion pump + mechanical pump | |||
| Pumping Time | Atmosphere to 5.0*10-2Pa < 8 minutes | |||
| Gas distribution (MFC) | ≥2 sets | |||
| Ultimate Vacuum | 5.0*10-4 Pa | |||
| Working Mode | Automatic or Manual via PLC touch screen | |||
| Total Power | 40-100kW | 70-1000kW | ||
Note: All specifications can be customized according to specific requests.
