| Model | PD-GM-04 |
|---|---|

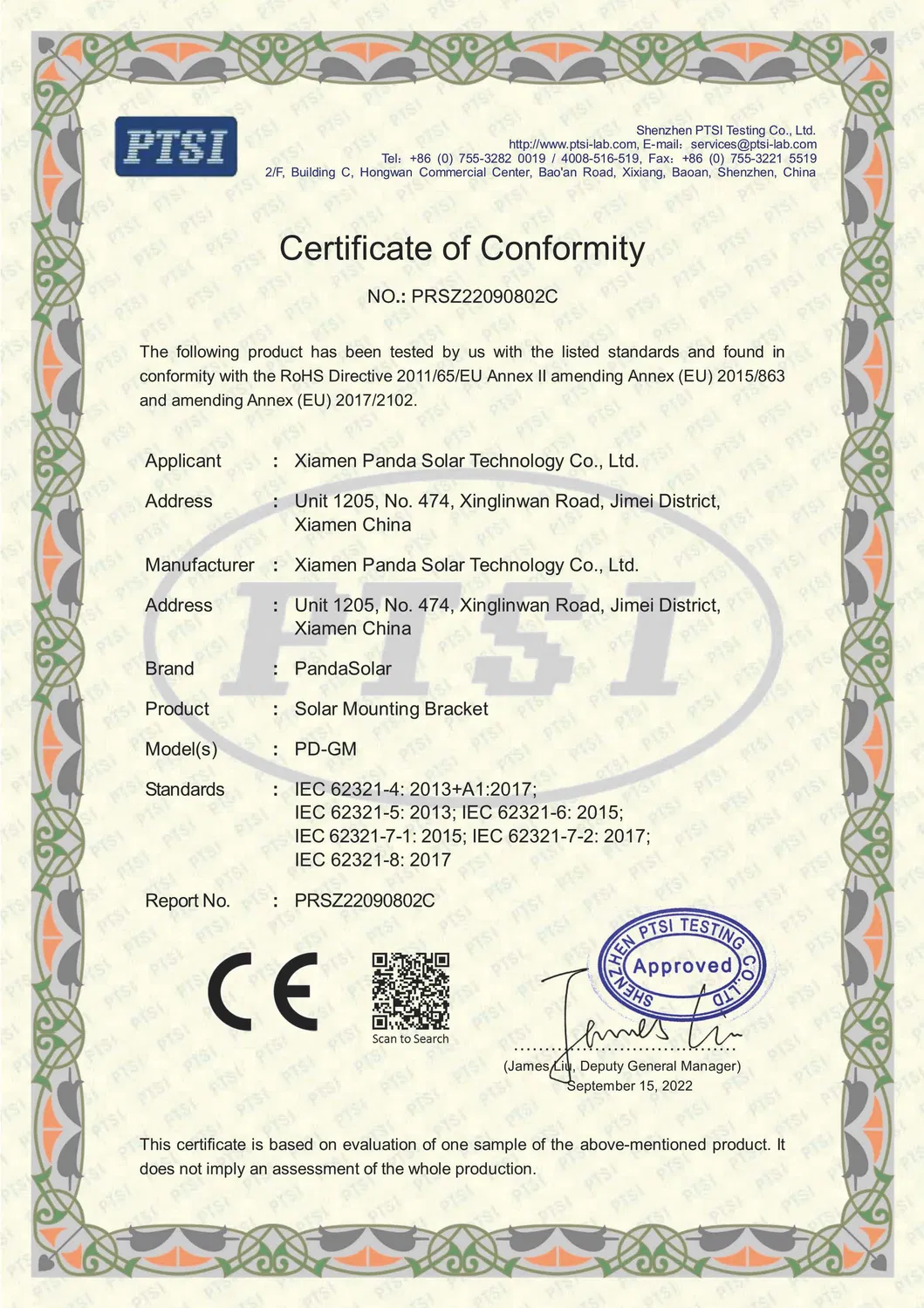

| Certification | CE |
| Application | Commercial Ground Mounting |
| Material | High-Strength Steel |
| Wind Speed | 60m/s |
| Snow Load | 1.4kn/m² |
| Surface Treatment | Magnesium Aluminum Zinc Plating |
| Design Standards | AS/NZS1170, JISC8955:2017 |

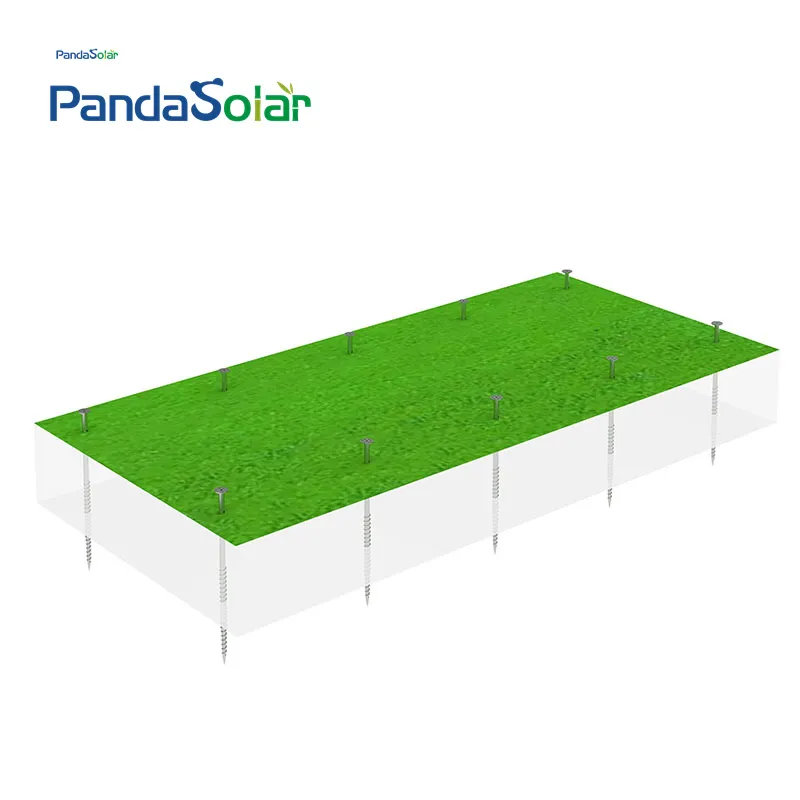

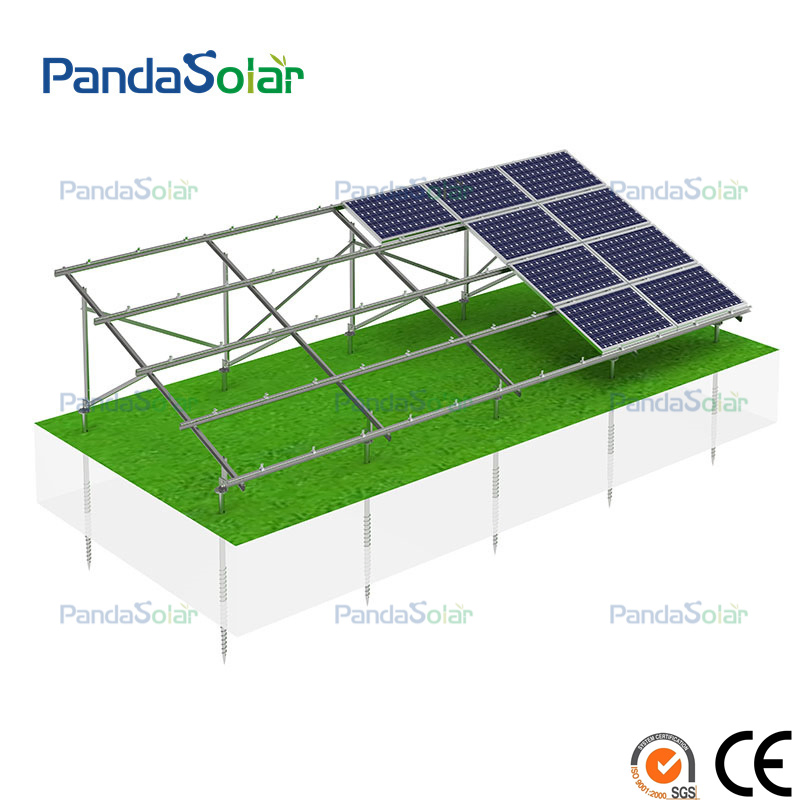

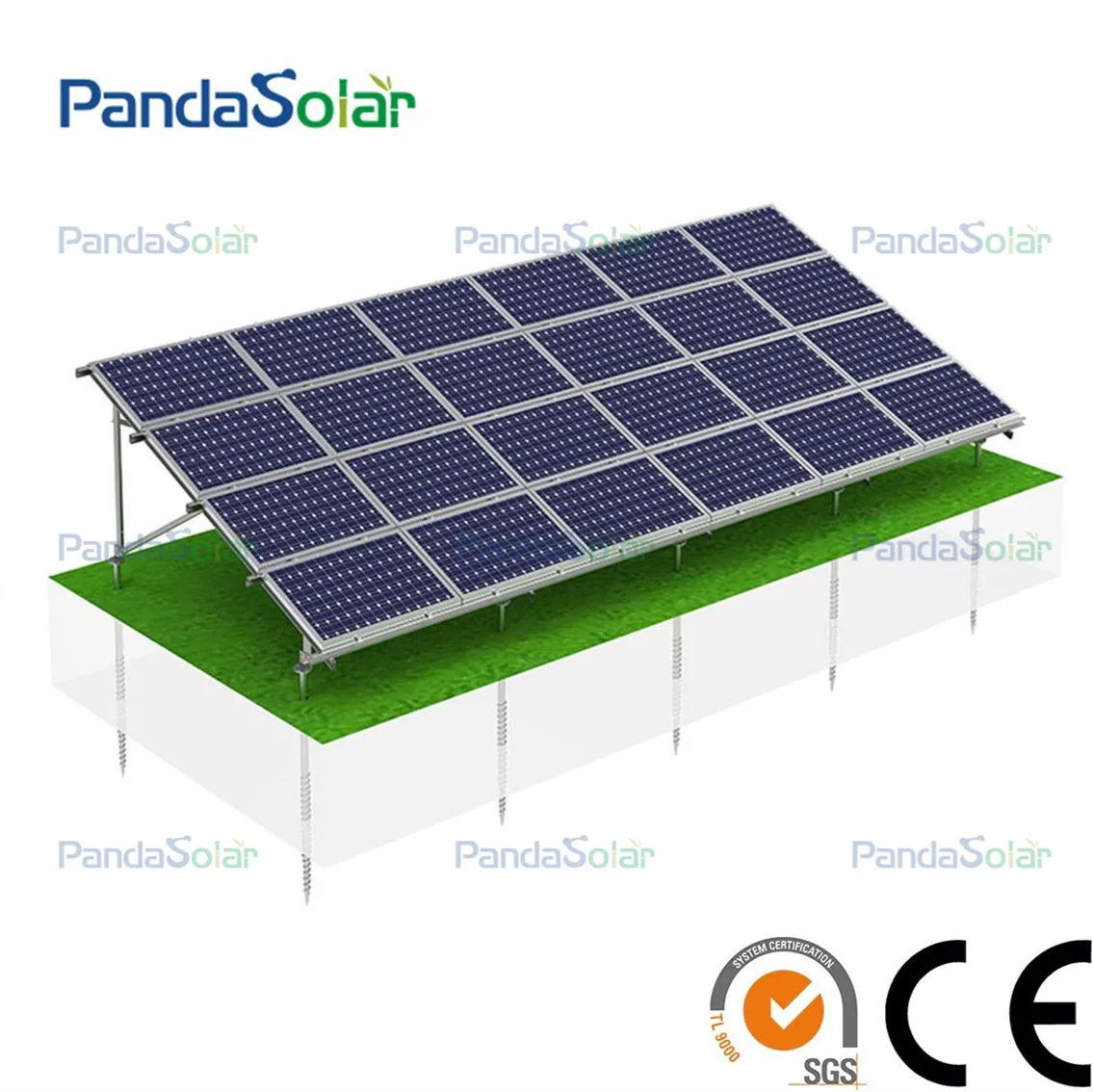

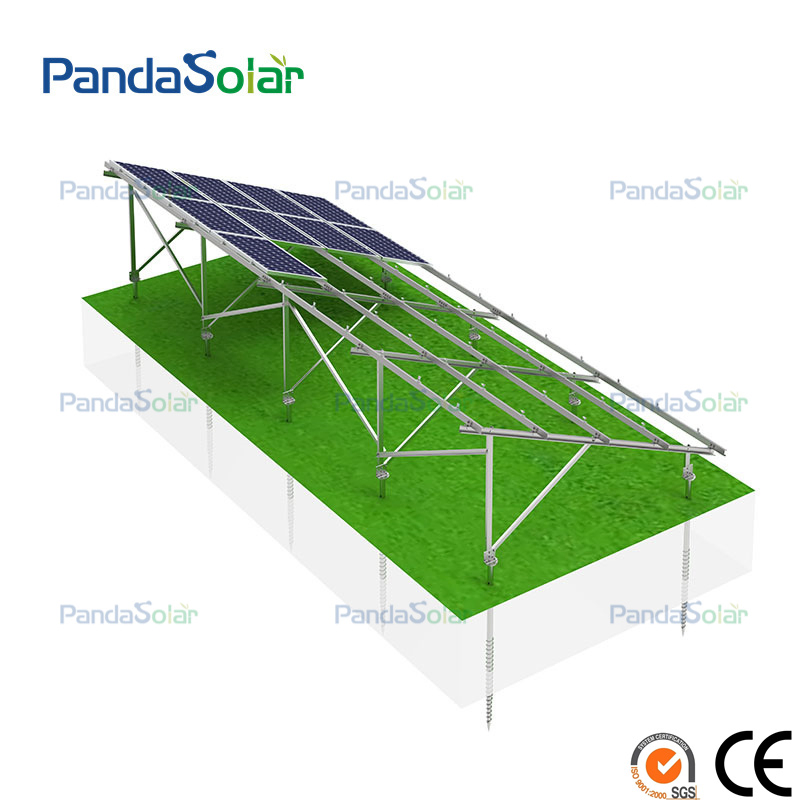

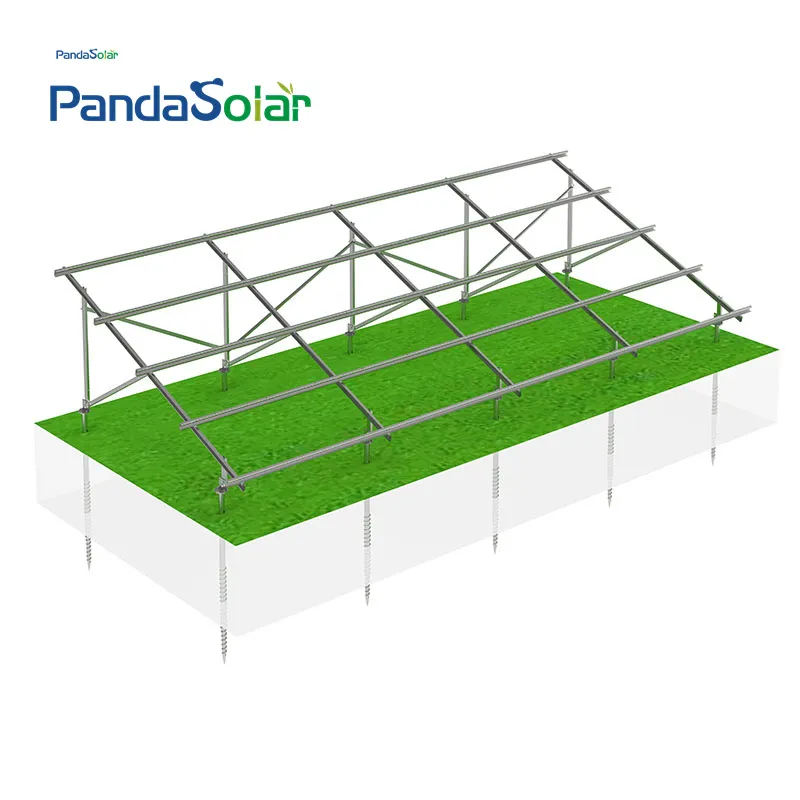

The solar ground mounting bracket is strictly designed according to maximum wind speed, snow load, and specific solar panel requirements. This system ensures high strength while optimizing installation efficiency and reducing labor costs. The support foundations are versatile, accommodating straight-to-ground, ground screws, and cement piers.

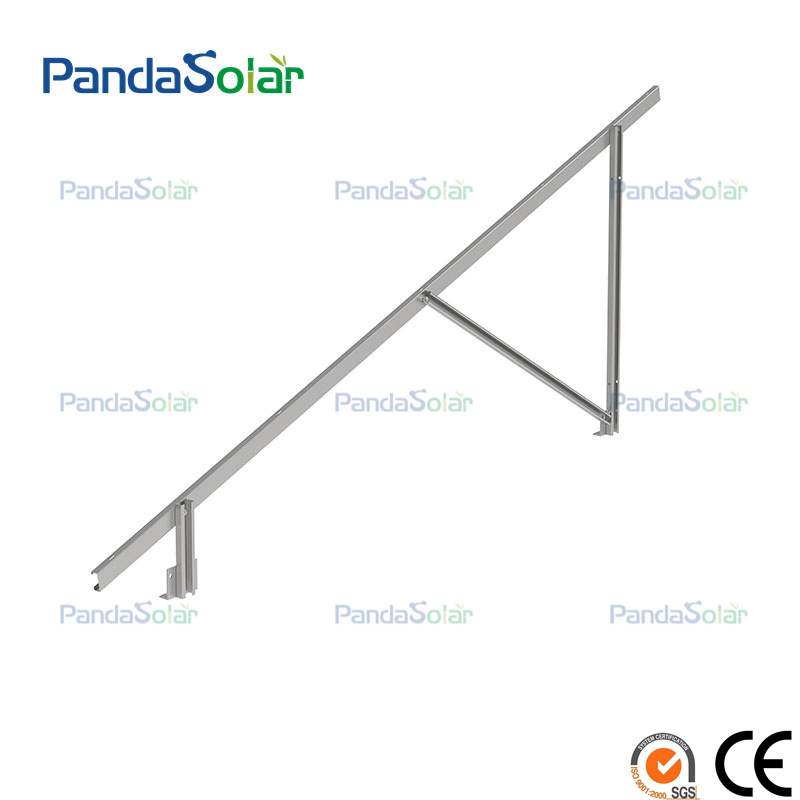

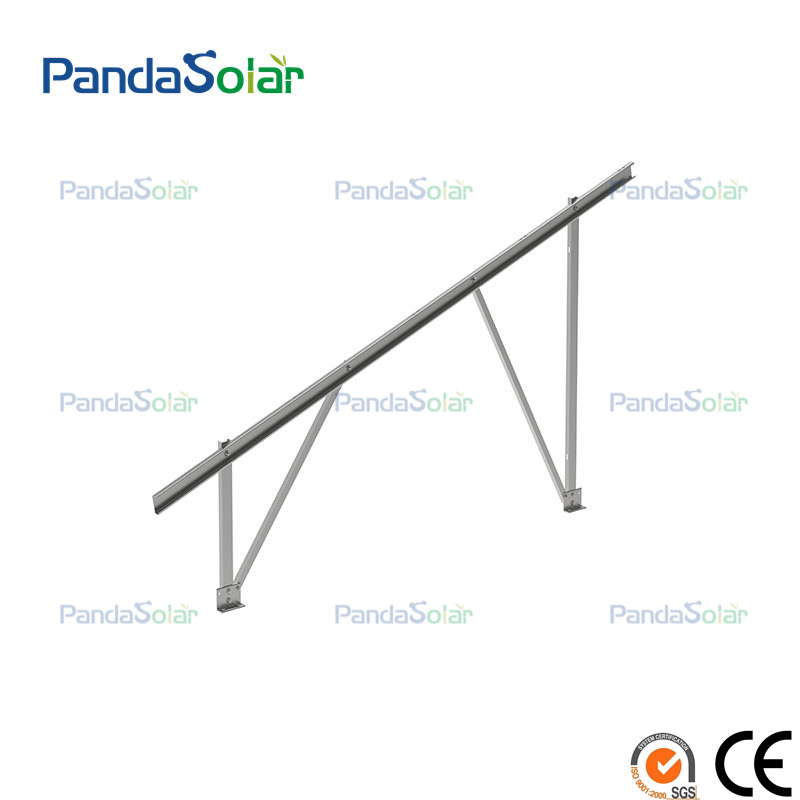

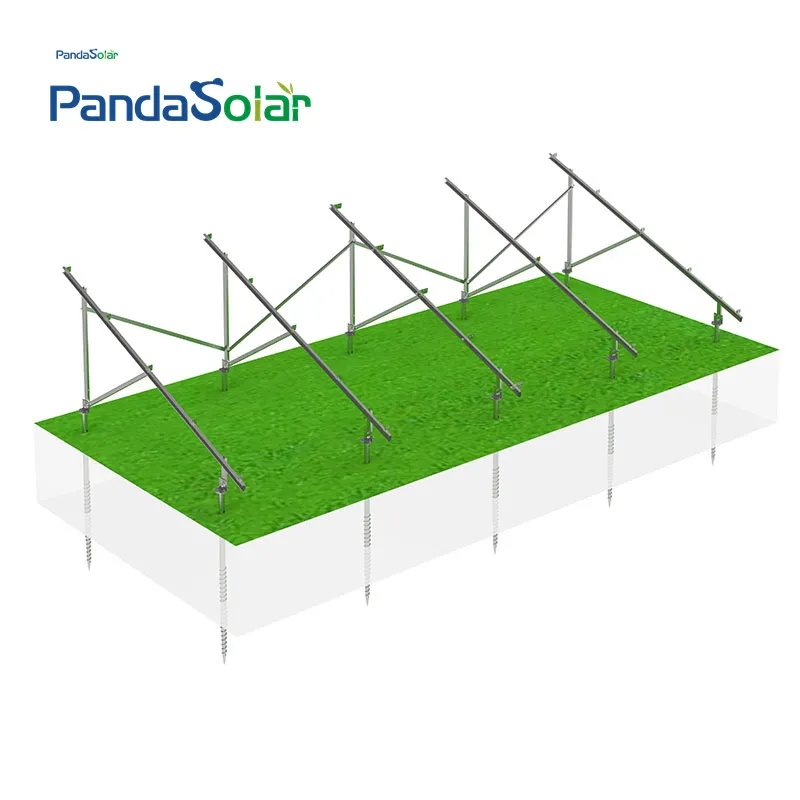

GM4 double column can be ground bolt column or piling column. Ground screw posts allow for precise height adjustments, while piling columns offer higher strength for projects requiring extreme accuracy.
| Structure Material | Mg-Al-Zn & AL-6005-T5 (Anodized) |
|---|---|

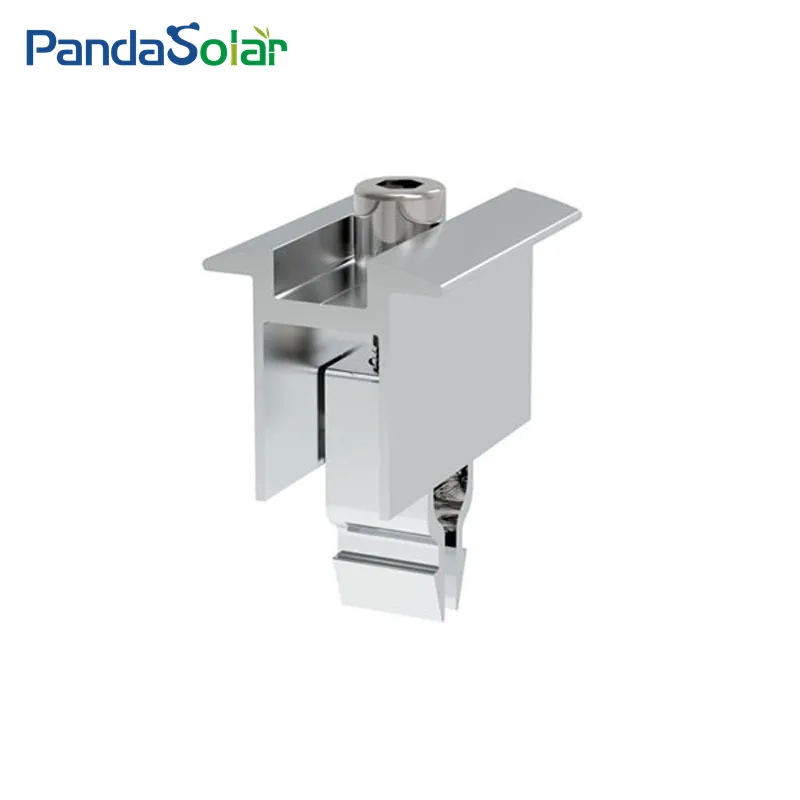

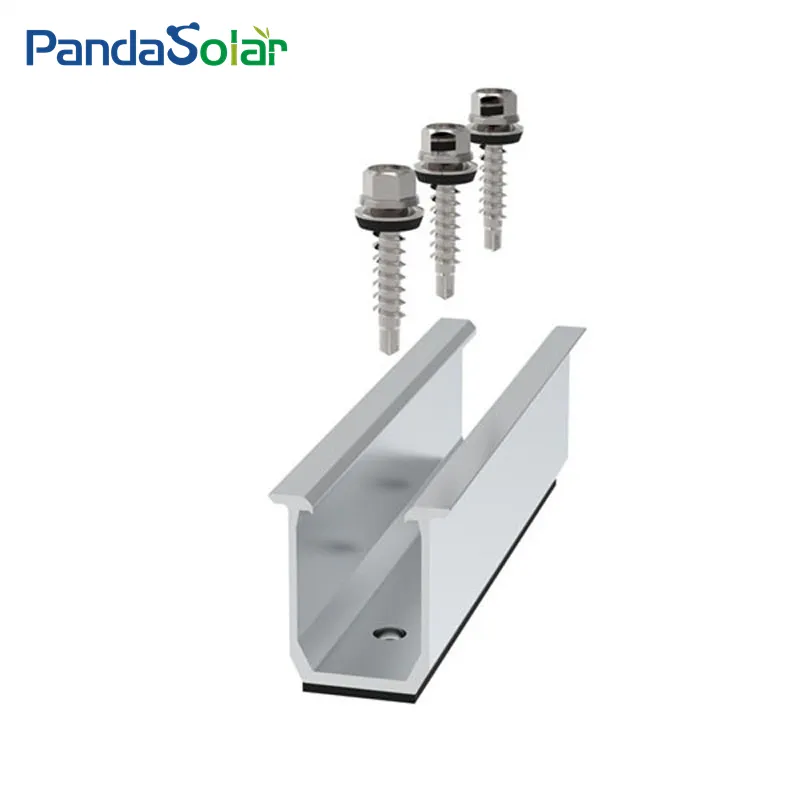

| Components | SUS304 & AI6005-5 (Anodized) |
| Tilt Angle | 0-60° |
| Ground Clearance | 0-1m |
| Warranty | 12 Years |

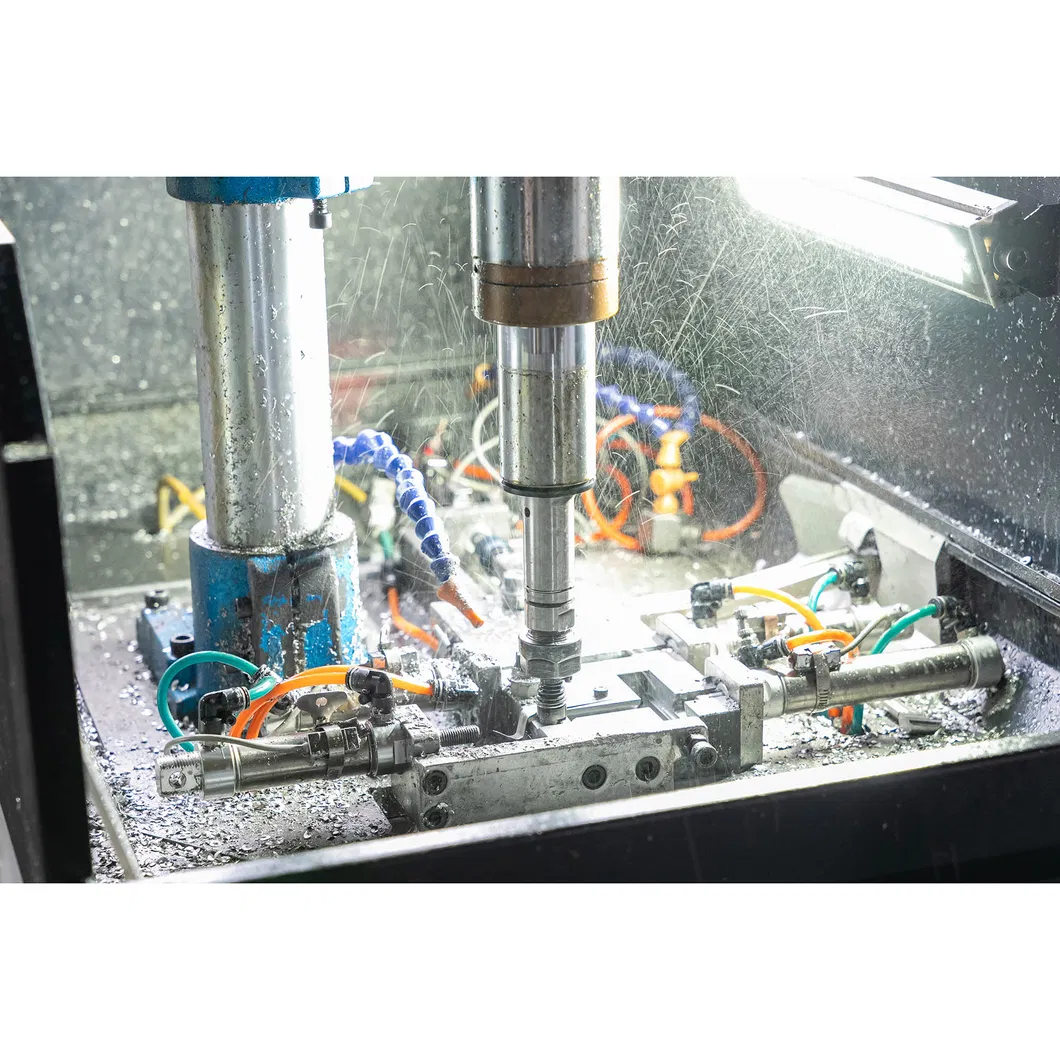

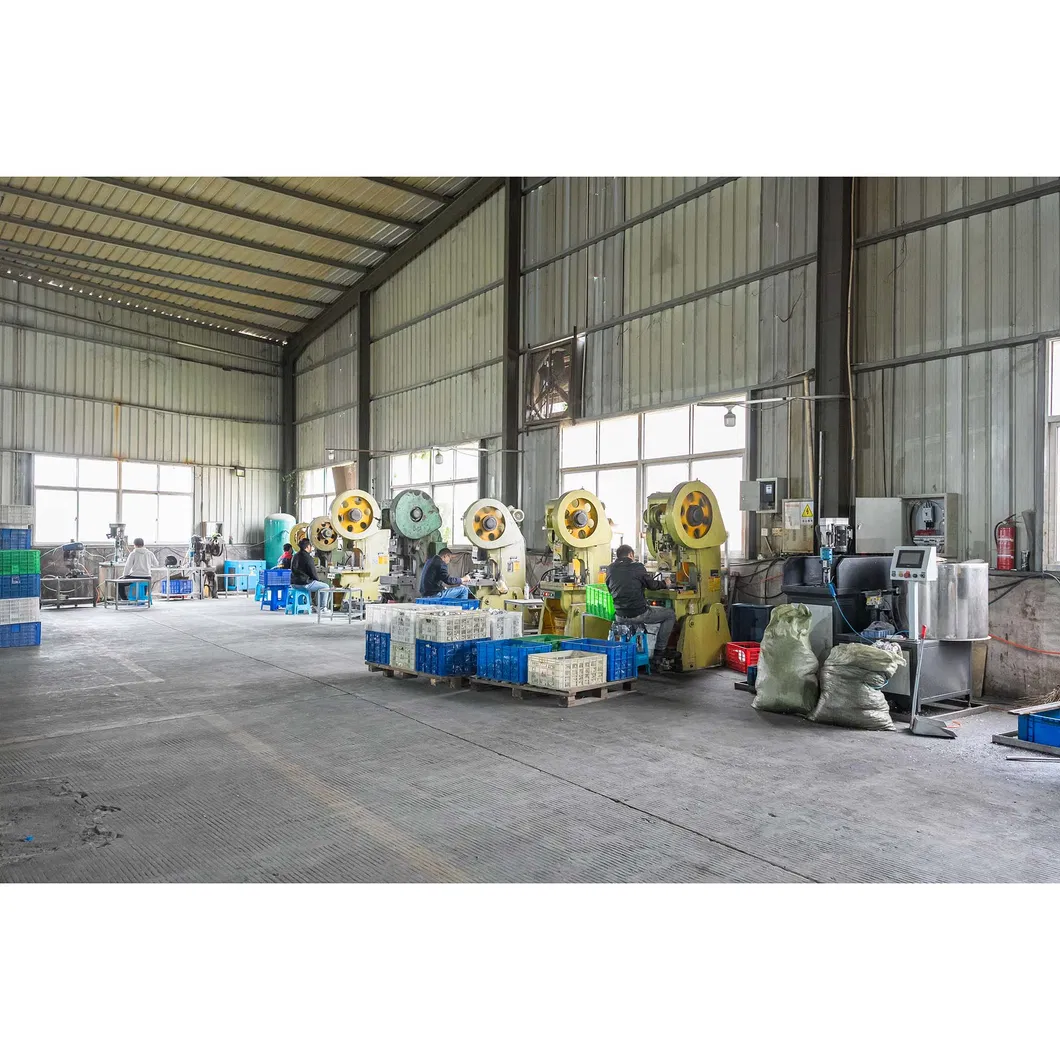

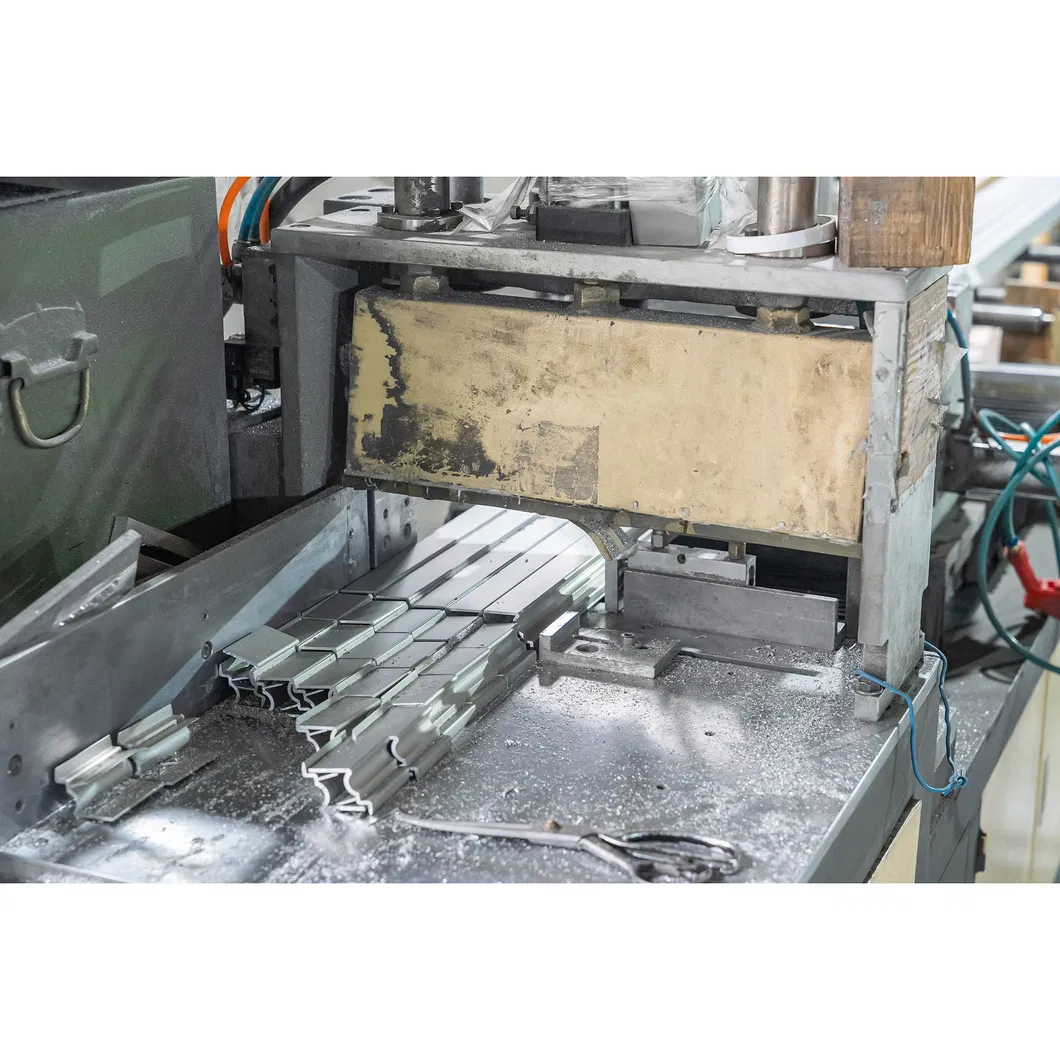

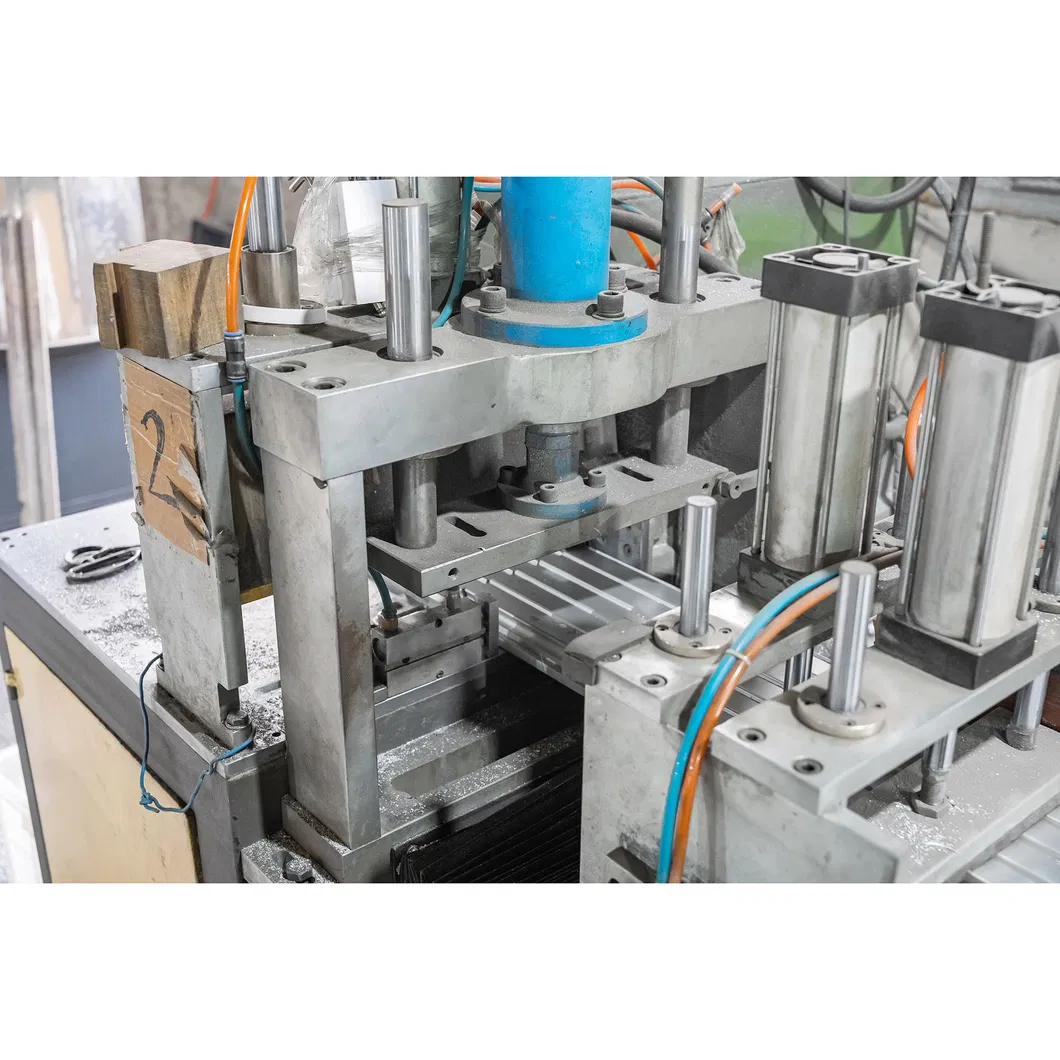

Aluminum Workshop: Professional processing including cutting, drilling, stamping, and forging completed independently for high precision.

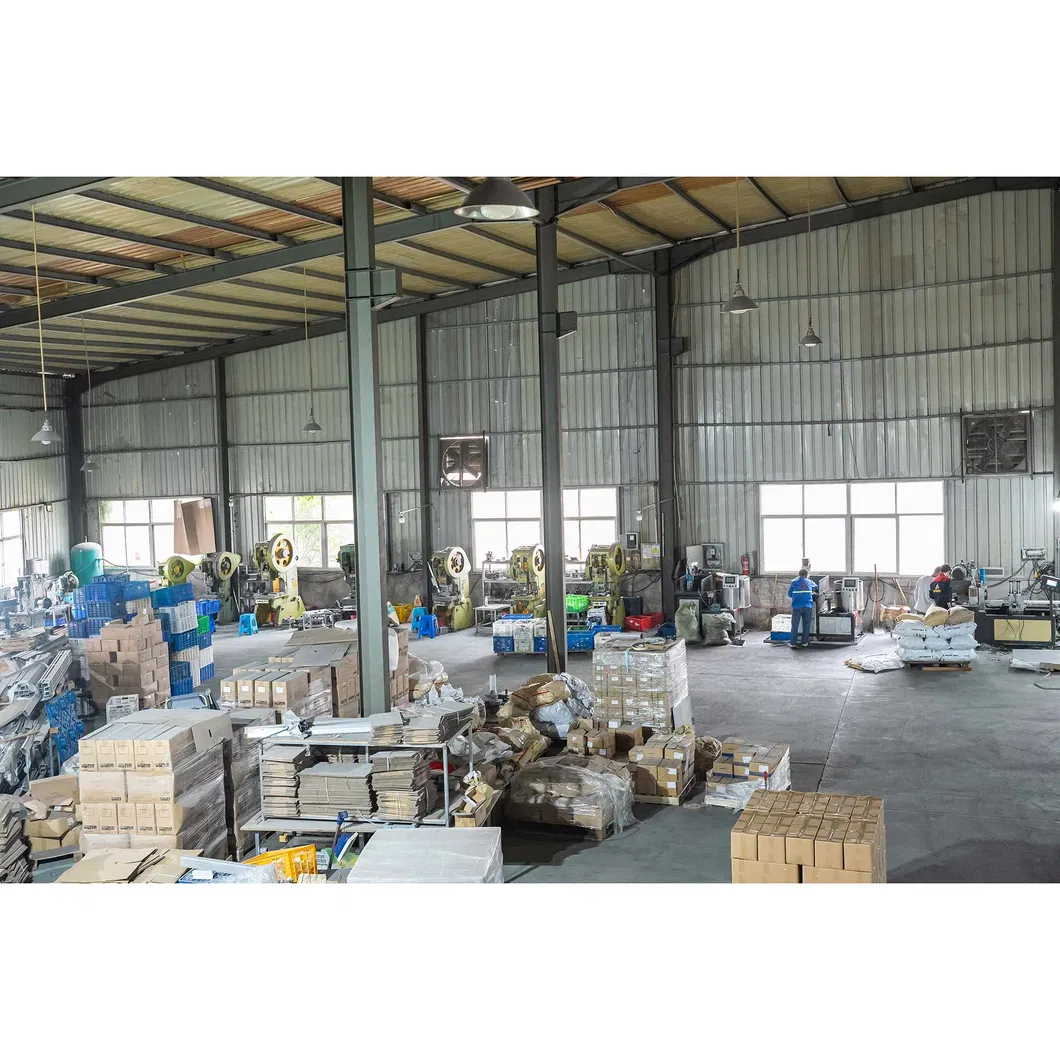

Steel Workshop: Equipped with 6 production lines for Steel, Magnesium Aluminum Zinc, and S350GD/S450GD materials, delivering a monthly capacity of 40-50MW.
