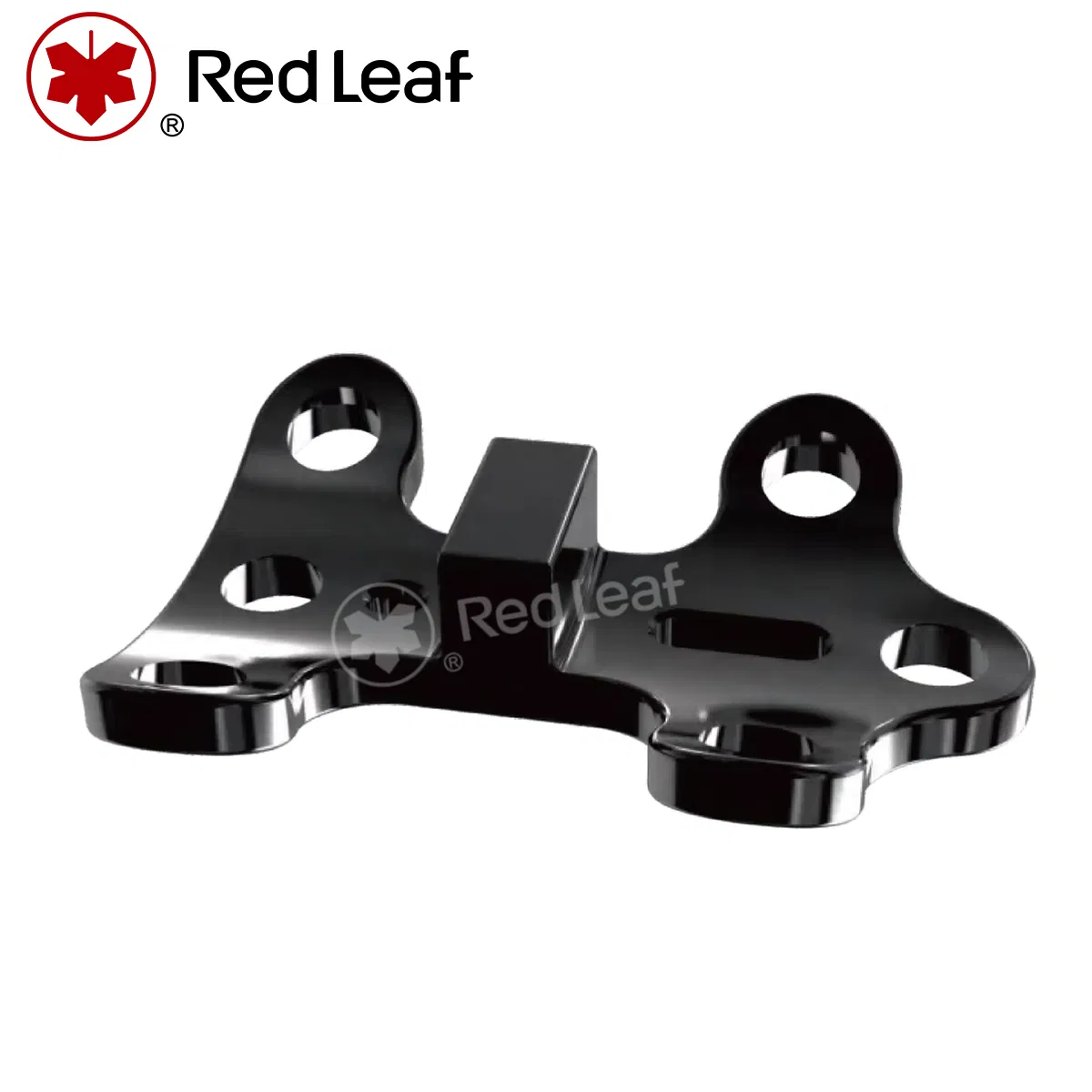

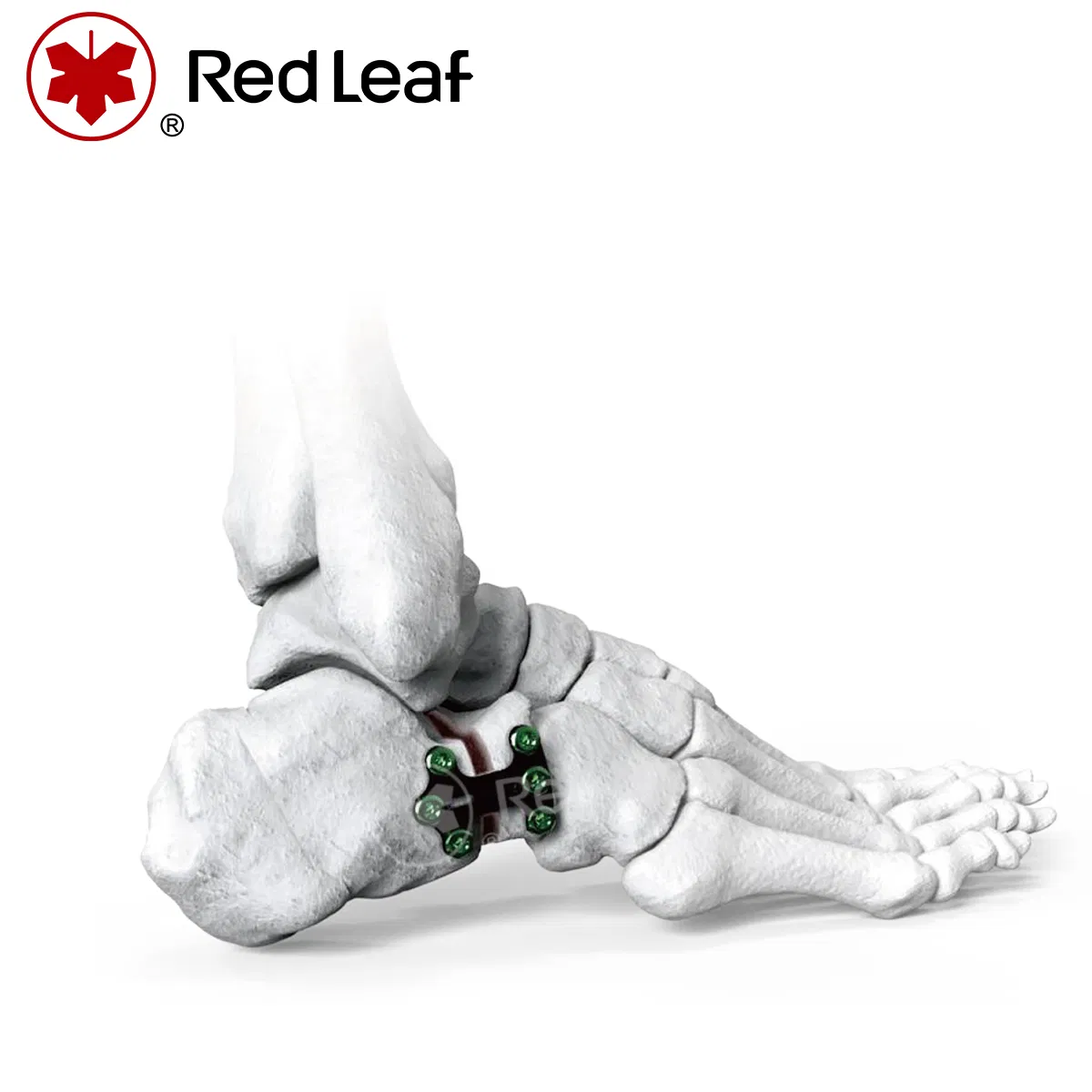

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
1 / 3
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

1

Basic Information

Model NO.
Evans
Usage
Correct Deformities, Fracture Fixation
Transport Package
Carton
Specification
30x23x2
Material
TC4 Titanium Alloy
Origin
China
2

Product Description

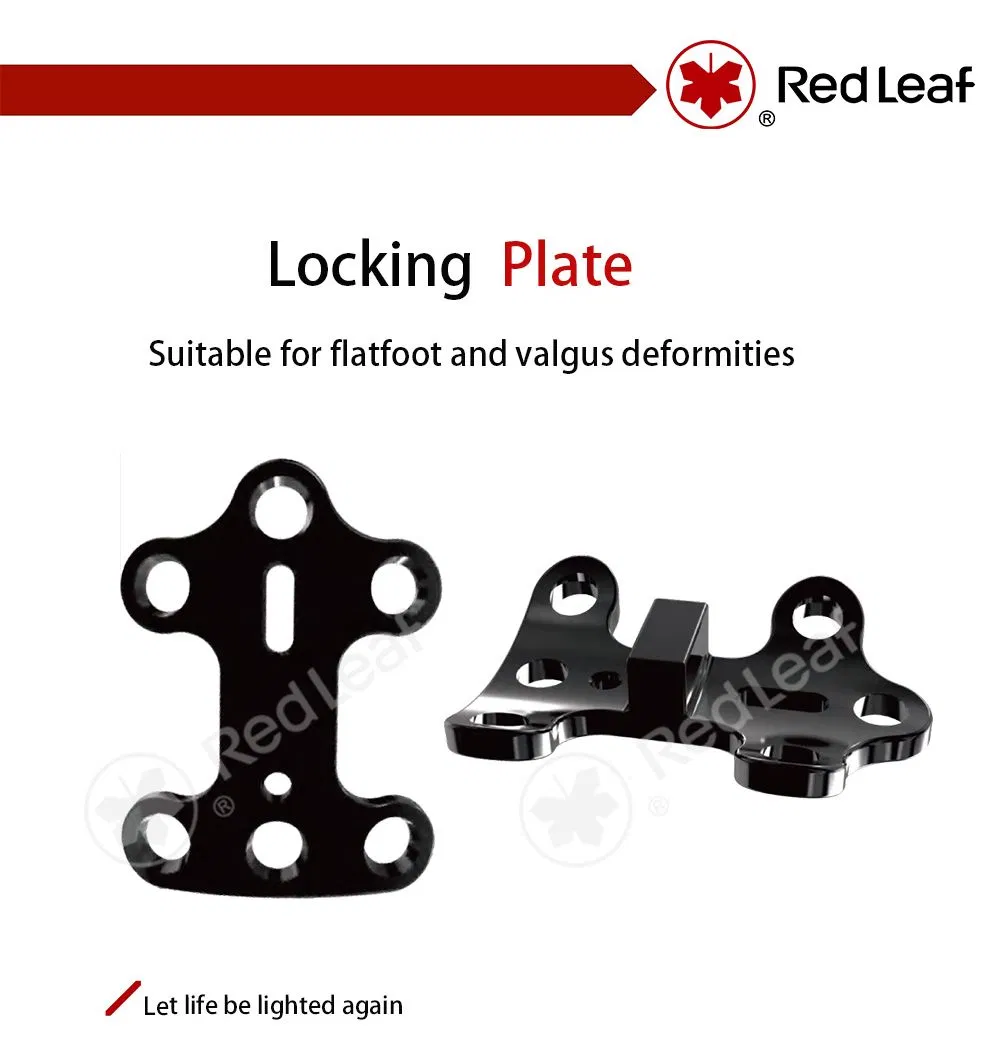

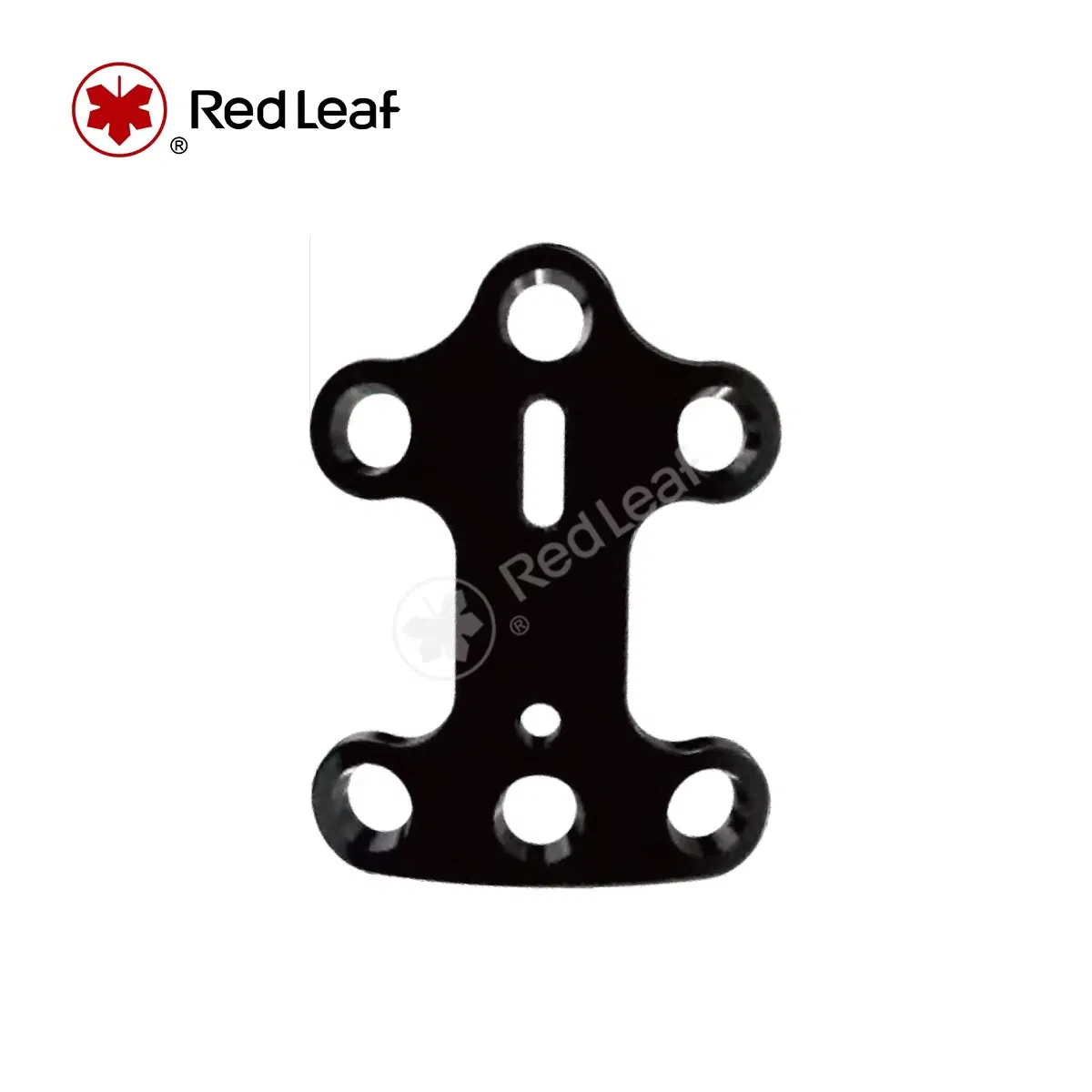

Orthopedic Osteotomy Locking Plate

Design Concept

  • Suitable for flatfoot and valgus deformities
  • Transverse osteotomy of calcaneal neck
  • The distance between the osteotomy surface and the calcaneocuboid joint surface is 10-15mm
Design Details

Key Surgical Points

  • Transverse osteotomy of the calcaneal neck, with the osteotomy surface 10-15mm away from the calcaneocuboid joint surface.
  • After cutting the inner cortex with a swing saw, slow down the cutting speed to avoid damaging the inner soft tissue.
  • Evenly spread, with parallel openings, considering bone ingrowth and preventing bone non-union.

Screw Information

  • Matching screw: 3.5 self tapping locking screw
  • Length: 6-40mm, one specification per 2mm
  • Kirschner wire: 1.9mm
3

Product Parameters

Specifications Length (mm) Width (mm) Thickness (mm) Step width Cushion block height
Big 36.0 23.0 2.0 6/8/10 6/8/10
Middle 30.0 23.0 2.0 4/6/8 4/6/8
Small 26.0 23.0 2.0 2/4/6 2/4/6
Parameter Diagram 1
Parameter Diagram 2
Application Case 1
Application Case 2
Application Case 3
?

Frequently Asked Questions

Are you a factory or trading company?
We are a professional manufacturer specializing in orthopedic implants, emergency stretchers, and rehabilitation therapy products.
What is your typical lead time for orders?
The lead time is normally within 15-25 days after the deposit is received, depending on the order volume and specifications.
What are your standard payment terms?
Our standard terms include T/T (30% deposit after order confirmation, 70% balance paid against bill of lading) or L/C.
What quality certifications do your products hold?
Our products are fully certified with FSC, CE, FDA, ISO9001, ISO13485, and EN1865 standards to ensure global quality compliance.
How is your after-sales service and warranty handled?
We offer a 12-month warranty from the date of receipt. During this period, we provide free spare parts and technical guidance. Beyond the warranty, we provide parts at cost with continued technical support.
Which shipping port do you primarily use?
Our primary shipping port is Shanghai, China, which allows for efficient international distribution.
