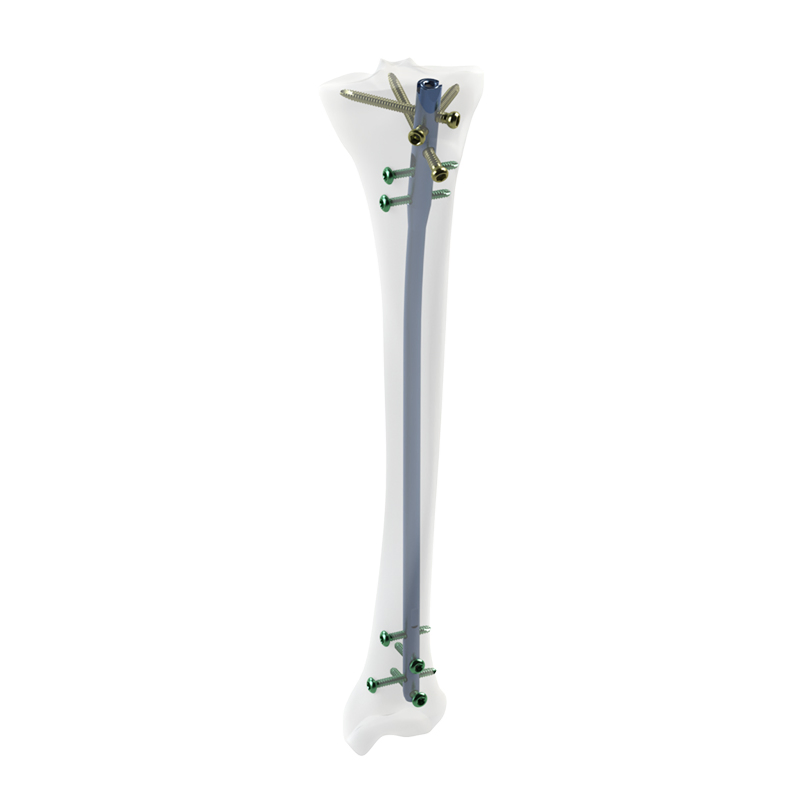

Multi-Screw Hole Tibial Intramedullary Nail

1 / 5

Multi-Screw Hole Tibial Intramedullary Nail

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Condition

New

Usage

Fracture Fixation

Using Site

Tibia Femur

Type

Trauma

Implant Type

Intramedullary Nail

Specification

Titanium Alloy TC4

Origin

China

★

Product Introduction

Medical Background & Advantages of the Suprapatellar Approach:

Needle insertion in knee extension reduces deforming stress caused by quadriceps traction.
Easier to maintain reduction of proximal fractures.
No need for extensive manipulation of the injured limb.
Easier to identify the entry point and protects the proximal tibial cortex.
Reduces the incidence of postoperative knee pain.

⚙

Key Features

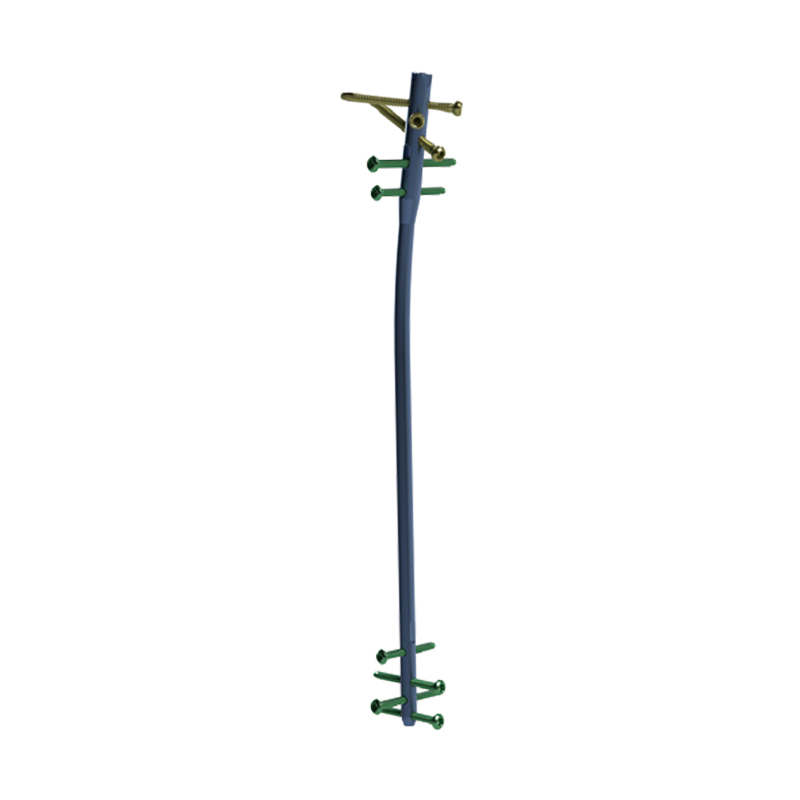

Proximal Design (14 mm):

Innovative Locking Mechanism: 5 Holes in 4 Directions.

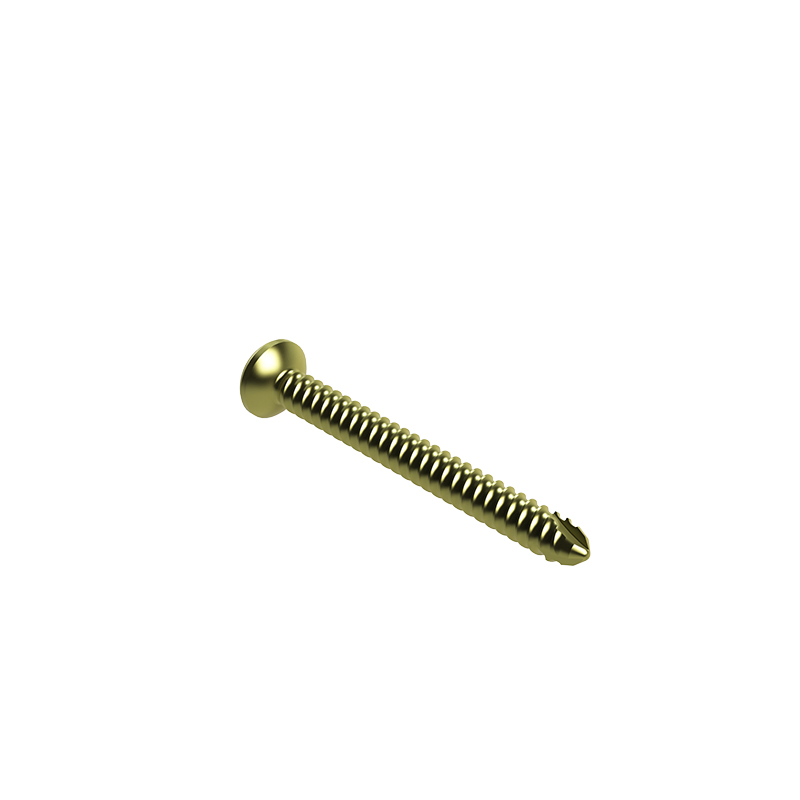

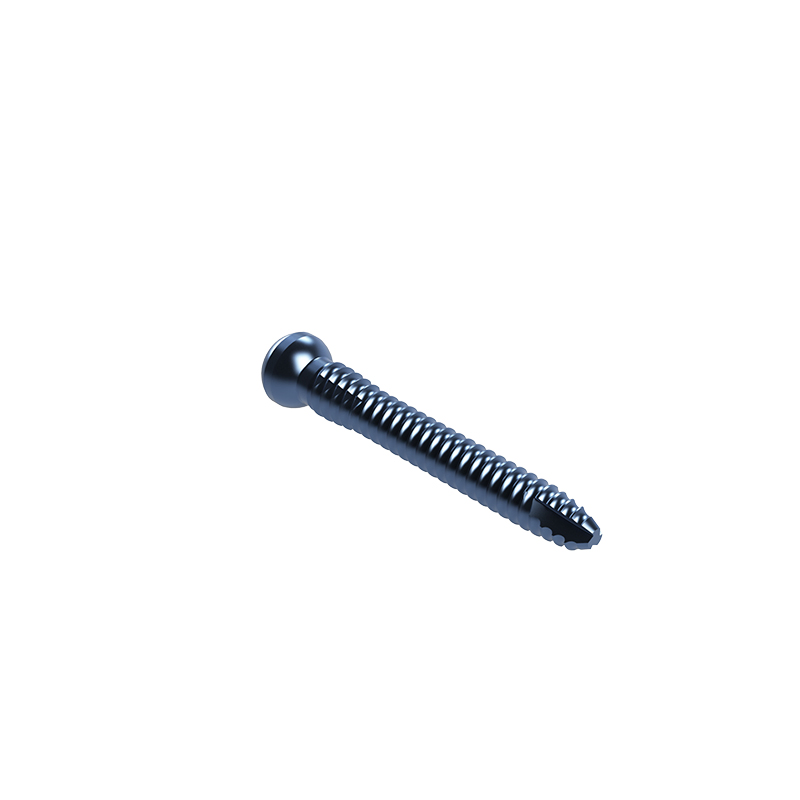

Dual-core threading on proximal locking screws increases strength.
Continuous long-curved contour matches anatomical structure.
3 cancellous bone screw holes and 2 standard interlocking holes.

Distal Design (5 mm):

Ultra-distal design ensures basic structural stability.
4 Holes in 3 Directions.
2 transverse and 1 longitudinal interlocking holes.
1 ultra-distal oblique interlocking hole (dual orientation).

✚

Application & Indications

Target Indications: Stable proximal, distal, and diaphyseal tibial fractures; Open and closed tibial shaft fractures; Malunions and nonunions of the tibia.

Clinical Precautions:

Proximal Fractures: At least 3 proximal locking screws and 2 distal locking screws.
Tibial Shaft Fractures: At least 2 proximal and 2 distal locking screws.
Distal Tibial Fractures: At least 2 proximal locking screws and 3 distal locking screws.

Frequently Asked Questions

What are the shipping methods and associated costs?

We typically utilize courier services for shipping, but can accommodate postal services upon request. Costs are determined by destination, package size, and weight. We provide detailed quotes based on specific requirements.

Are the products certified with international quality standards?

Yes, we hold the EN ISO 13485 certification, ensuring our products meet stringent safety and performance requirements for the medical device industry.

What is the minimum order quantity (MOQ)?

Our standard minimum order value is US$1000. However, sample orders are available at cost for market evaluation and testing before committing to larger orders.

Can you provide custom-made products not listed in the catalogue?

Yes, custom orders are supported. By providing pictures or samples, we can work to create similar items. Note that custom orders may require longer lead times.

Do you maintain stock for immediate delivery?

We maintain stock for most catalogue items with regular monthly production cycles. Inventory levels vary based on demand, so we recommend consulting with the sales team for real-time updates.

What is the advantage of the suprapatellar approach for this nail?

It reduces deforming stress from quadriceps traction, makes it easier to maintain fracture reduction, and significantly decreases the risk of postoperative knee pain compared to traditional methods.
