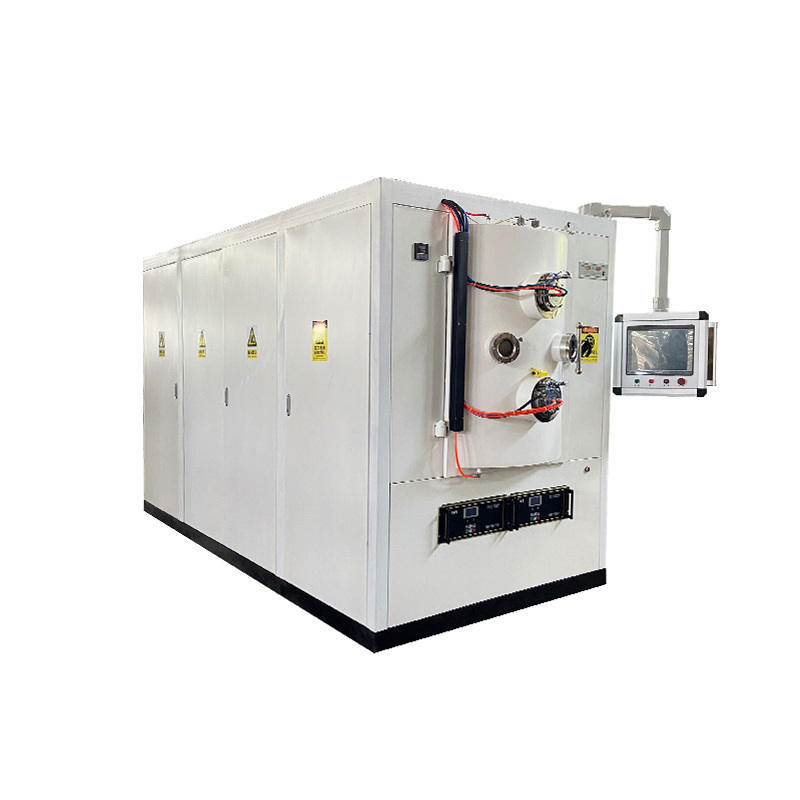

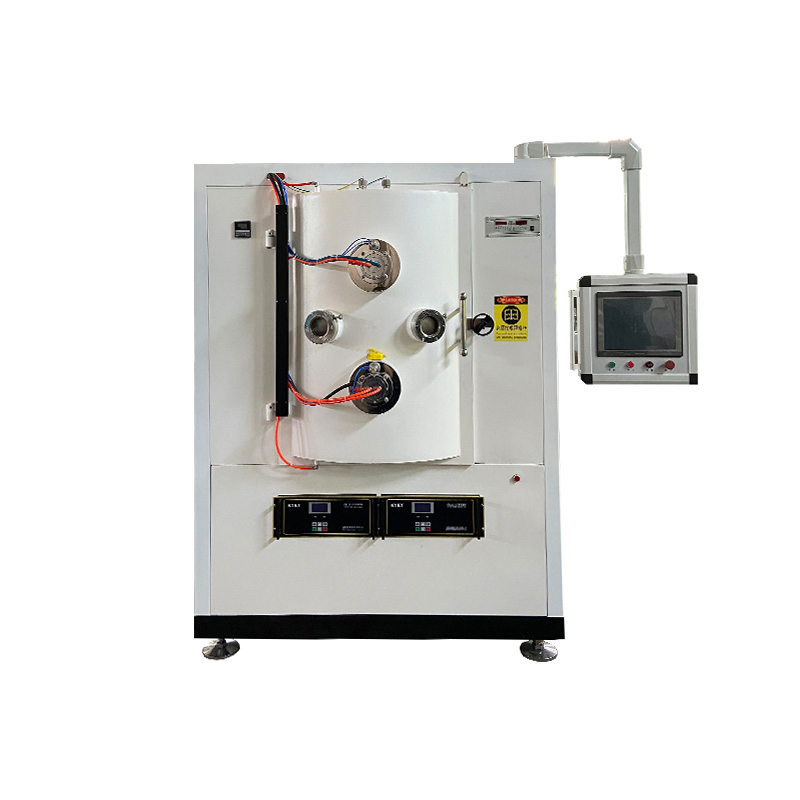

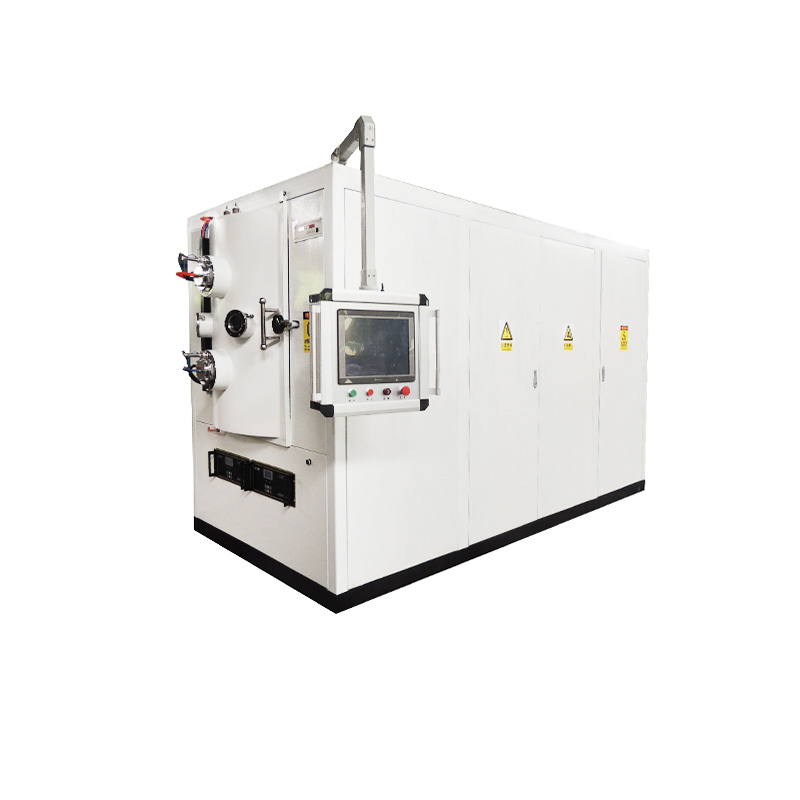

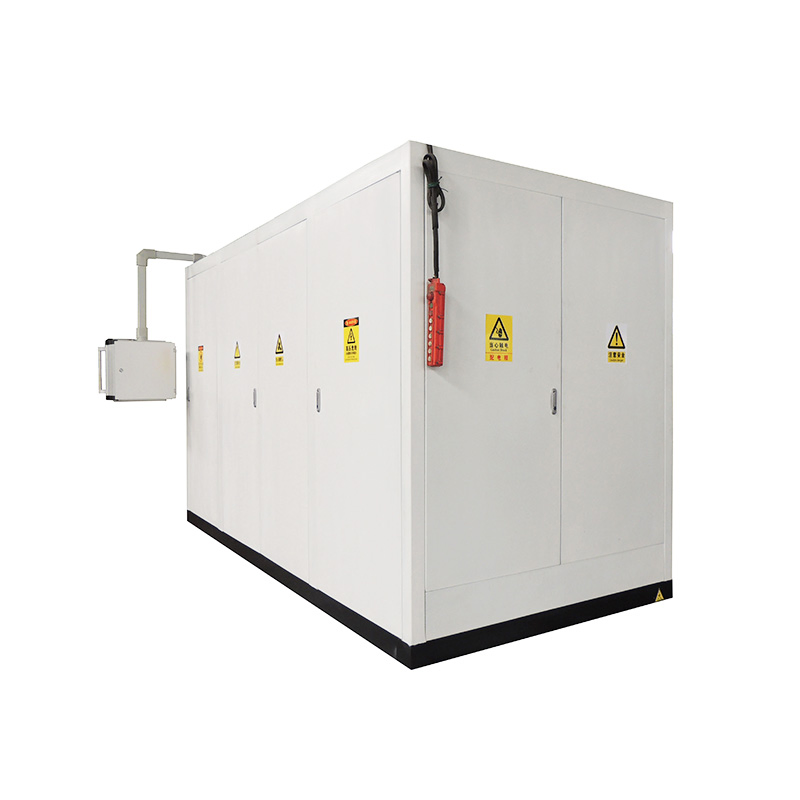

Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
1 / 5
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

Customization: Available
After-sales Service: Engineers Can Be Sent to The Worksite
Warranty: 1 Year
Send Inquiry

Product Description

Overview & Basic Info

TypeCoating Production Line
CoatingVacuum Coating
SubstrateSteel
CertificationCE
ConditionNew
Key Selling PointsLong Service Life
Equipment NameTitanium Nitride Coating Equipment
Raw MaterialChrome, Titanium, Silver, etc
Coating TechnologyMagnetron Sputtering + Arc Deposition
Coating FilmTin, Tic, Crn, Zrn, Ticn
Production Capacity50 Sets Per Year
VoltageCustomers Local Voltage

ARC Series Product Description

Titanium Nitride Coating Equipment is a high-tech environmentally friendly system for metal, glass, and surface coating. Utilizing advanced arc deposition technology, it significantly improves workpieces' hardness, wear resistance, and corrosion resistance. The resulting film enhances both the functional durability and aesthetic appeal of the products.
Titanium Nitride Coating Equipment

Key Features

✔ Chamber size: φ 600mm-φ1800mm (Fully Customizable)
✔ 3-point vacuum level and 2-point temperature measuring systems
✔ High power ion source achieving uniform, large-area ion deposition
✔ Multi-arc sources for depositing various metal and alloy layers
✔ Fully automated auto-deposition control system
✔ Selection of center-driving or planetary substrate domes

Technical Specifications

ModelARC Series
Vacuum ChamberSUS304, φ600mm-1200×600-1200mm (H)
Substrate Dome SizeCustomized to client needs
Rotation Speed10 rpm to 50 rpm (Variable)
Arc Evaporation Source2 to 16 sets
Vacuum SystemRoughing Pump, Diffusion/Turbo Molecular Pump + Mechanical pumps

Performance Data

Ultimate Pressure5.0×10-4 Pa or lower
Pump Down Rate25 minutes (Atm. to 5.0×10-3 Pa)
Substrate HeaterUp to 550°C (max)

Utility Requirements

Layout Dimensions5000mm (W)×6500mm (D)×3500mm (H) approx.
Power Requirements3-phase, 380V, 50/60Hz, 100-180kVA
Cooling Water Flow140L/min or greater
Compressed Air0.5MPa or higher
Gross Weight8500kg approx.

Industry Applications

This equipment is widely used in the watch industry, ceramics, hardware, architecture, precision molds, automotive components, and medical tools to provide protective and decorative PVD hard coatings.

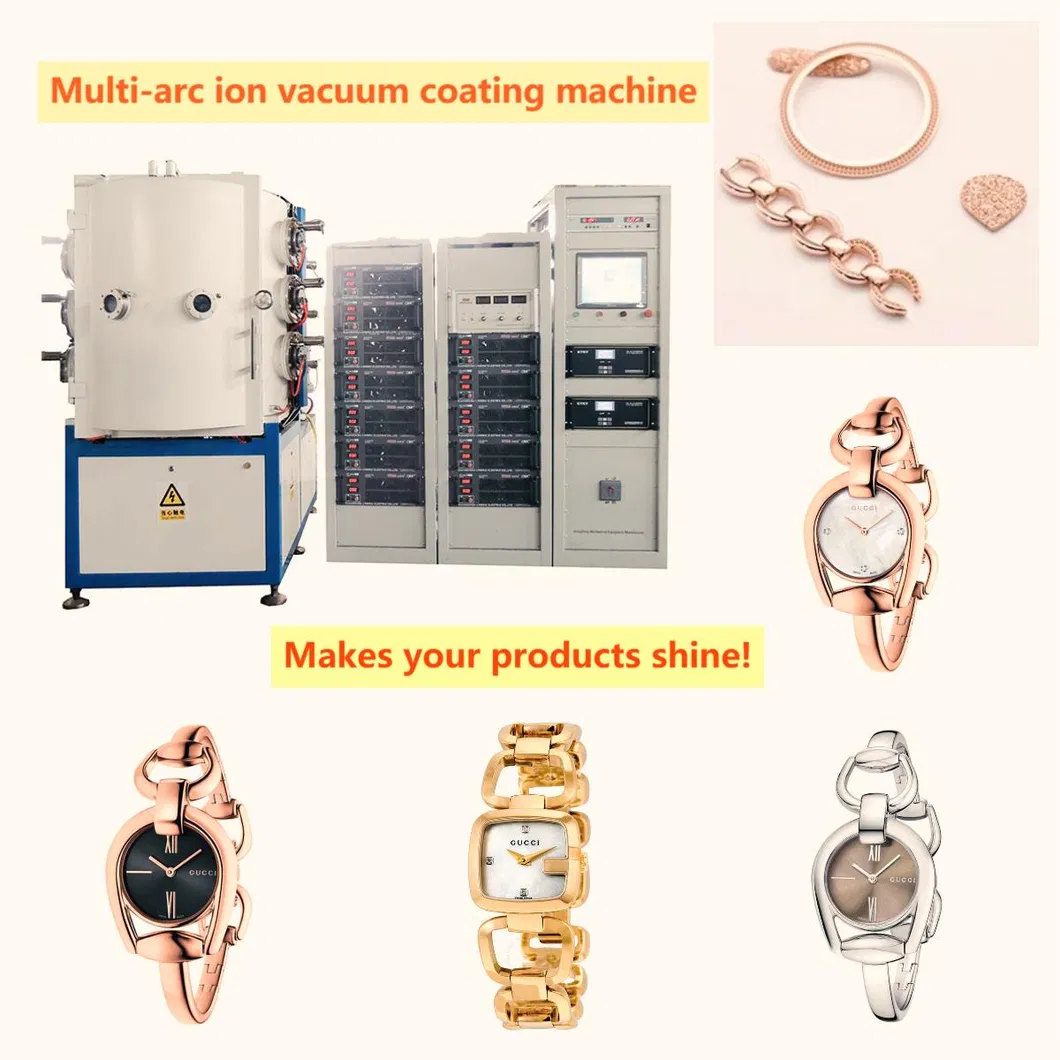

Application Gallery 1
Application Gallery 2

Inquiry Guide

To assist you in selecting the most suitable PVD coating system, please prepare the following information:
  • What is your specific product and its maximum dimensions?
  • What is the base material and your required daily production capacity?
Processing material and dimensions

Frequently Asked Questions

What materials can be coated with this equipment?
The system is designed for a wide range of substrates including metals (steel, alloys), glass, and ceramics. It is ideal for tools, hardware, and decorative items.
What are the main benefits of the PVD ARC coating?
It significantly improves surface hardness, provides excellent wear resistance, increases corrosion resistance, and allows for a variety of decorative colors.
Is the vacuum chamber size customizable?
Yes, the chamber size can be customized ranging from φ 600mm to φ 1800mm to suit different workpiece sizes and production volumes.
What kind of coatings can be produced?
The ARC series can deposit functional hard coatings such as TiN, TiC, CrN, ZrN, and TiCN, which are standard for industrial tools and high-end hardware.
What is the typical cycle time for the vacuum process?
The pump-down rate from atmospheric pressure to 5.0×10⁻³ Pa is approximately 25 minutes, though total cycle time depends on the specific coating process and thickness.
What support is provided for machine operation?
The system features a fully automated control system, and technical support via video is available to assist with operation and troubleshooting.
