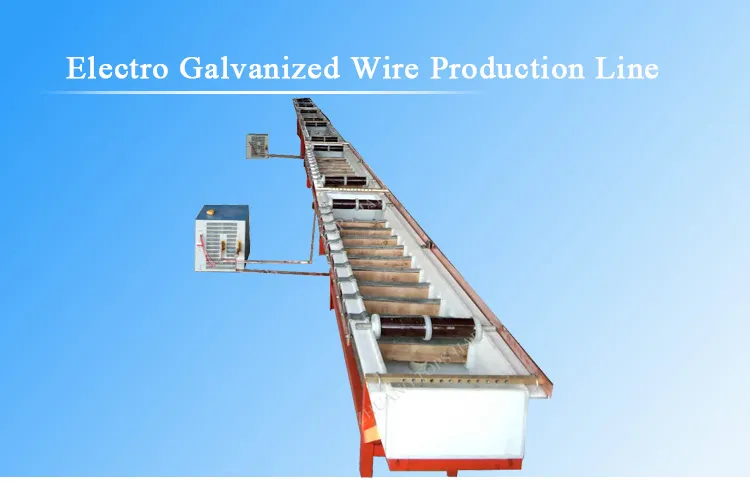

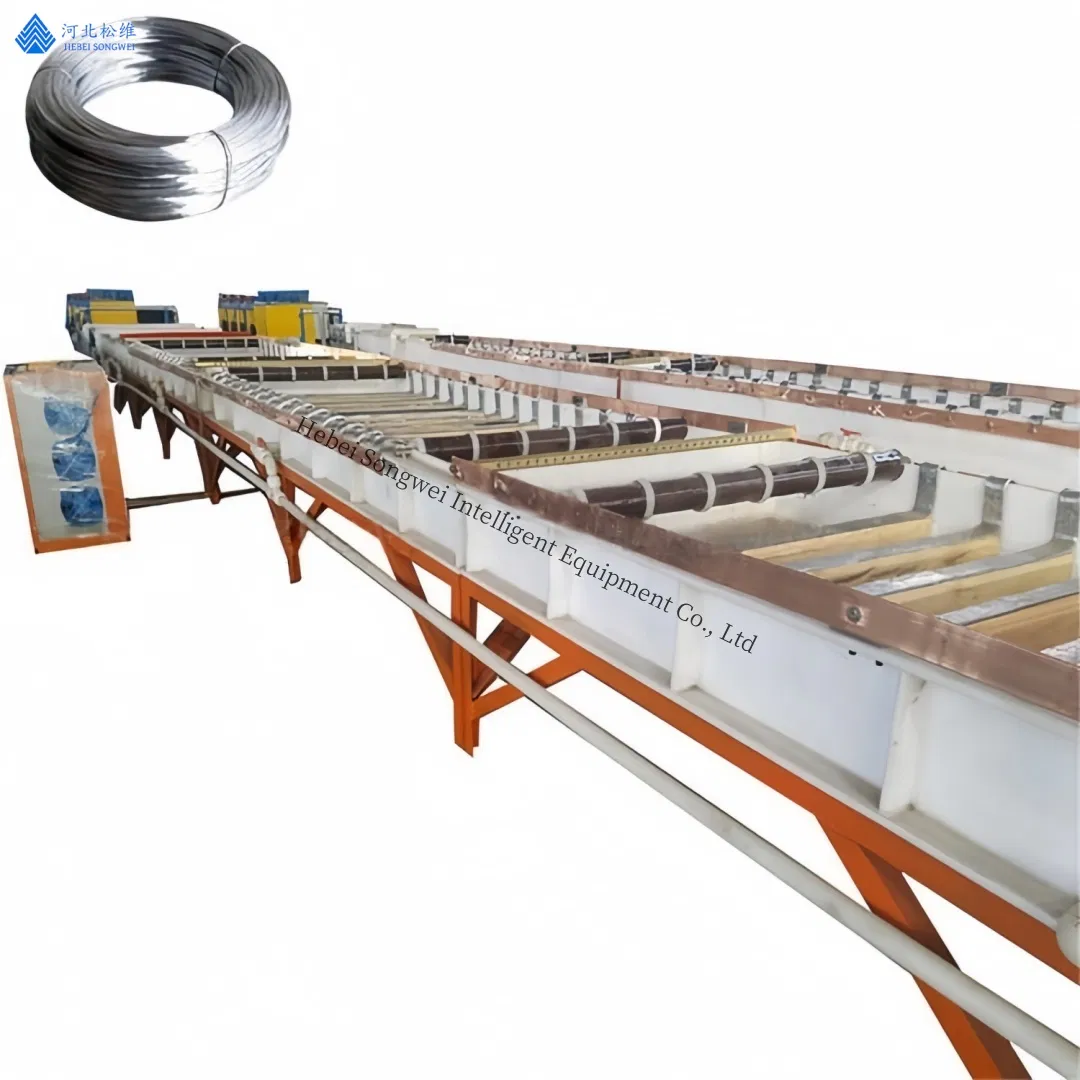

This electro galvanized wire production line is designed for zinc plating on black iron wire and black annealing wire. Using advanced technology and a sealed acid pickling process, the equipment ensures minimal acid odor and environmental protection.
The finished electro galvanized wire features a shining surface with no dezincification. It is widely used in construction, handicrafts, wire mesh, highway fences, and daily civilian products.
| Parameter | Specification Details |
|---|---|
| Wire Diameter | 0.6mm-1.6mm and 1.6mm-4.5mm |
| Zinc Coating Thickness | 10--30 g/m² |
| Number of Wires | 8, 10, 20 wires or customized |
| Raw Material | Carbon steel wire, iron wire |
| Tank Material | High anticorrosive PP material |
| Working Hours | 24 hours, automatic control |
| Output | 545kgs per hour (for 2.0mm wire) |

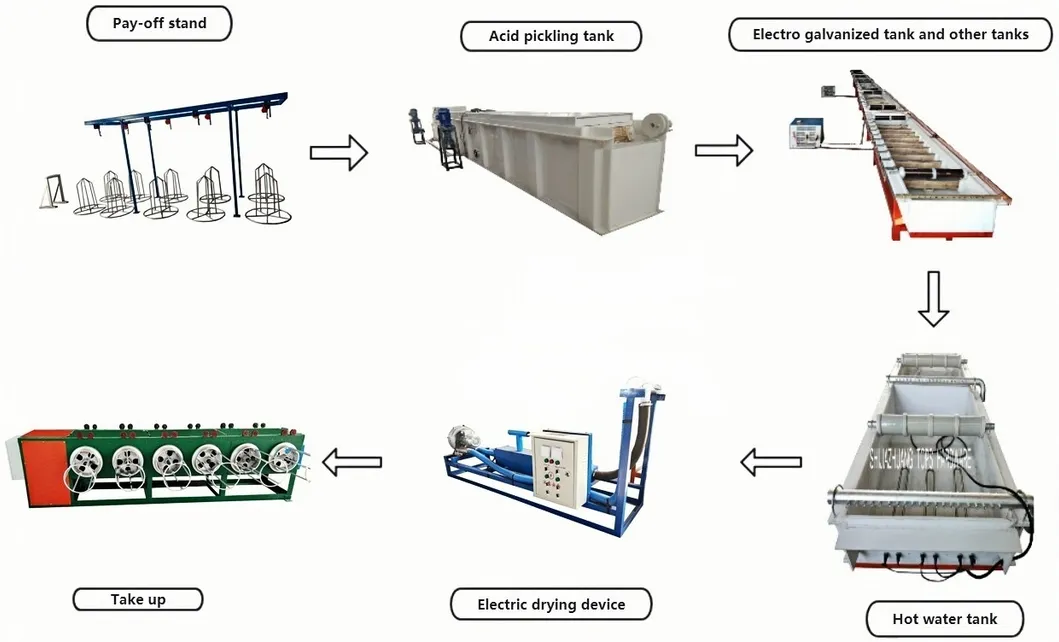

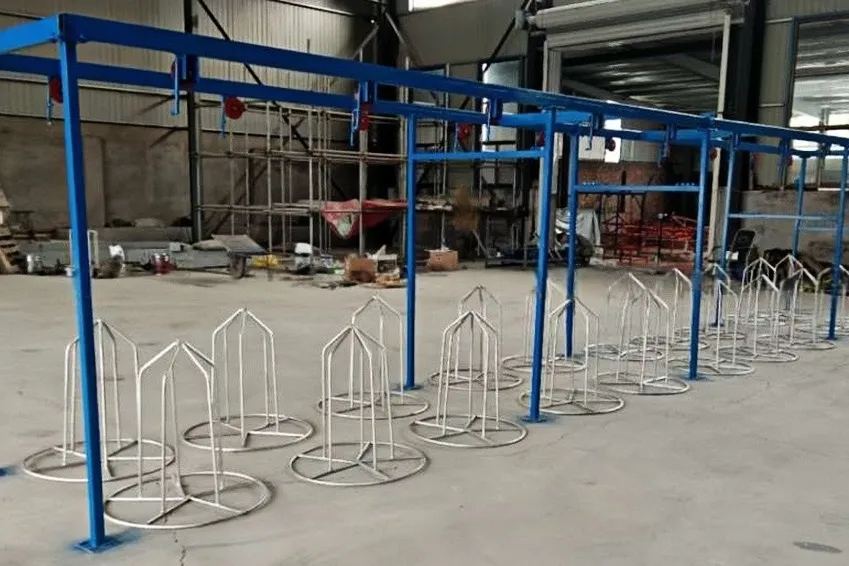

Wire Paying Off Stand
Matches the quantity of the take-up system.

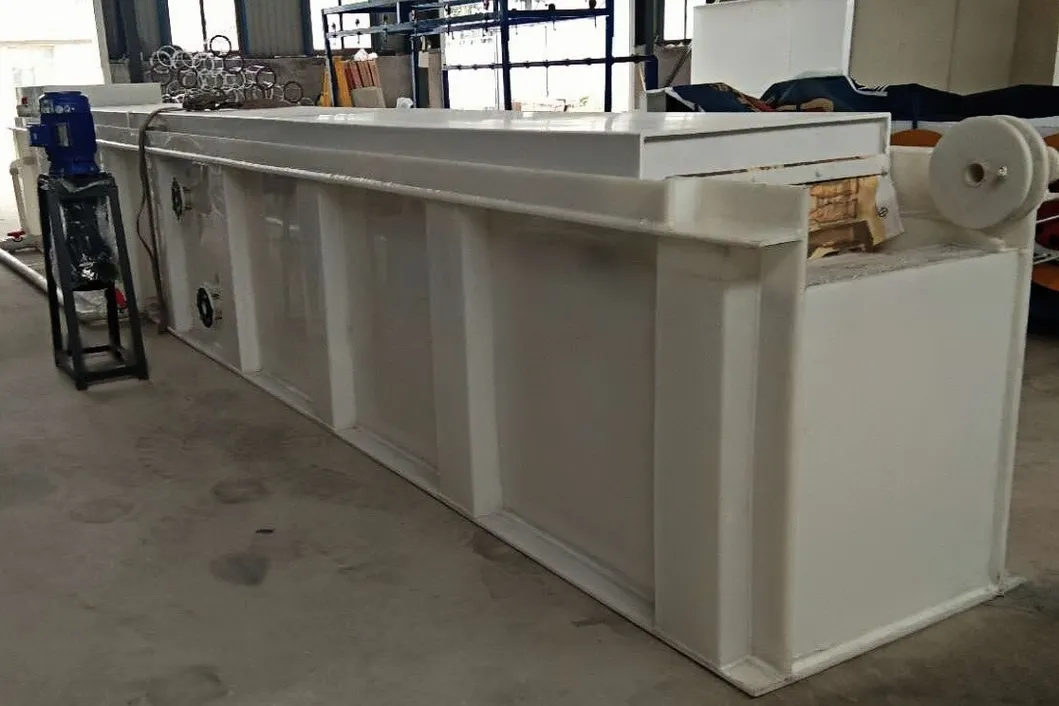

Acid Pickling Tank
Includes acid pump and water pump (1.1kw each).

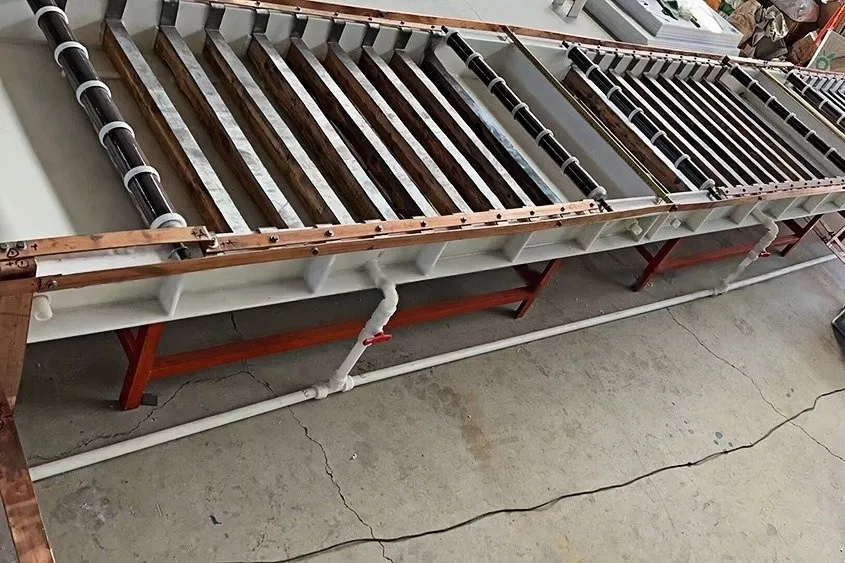

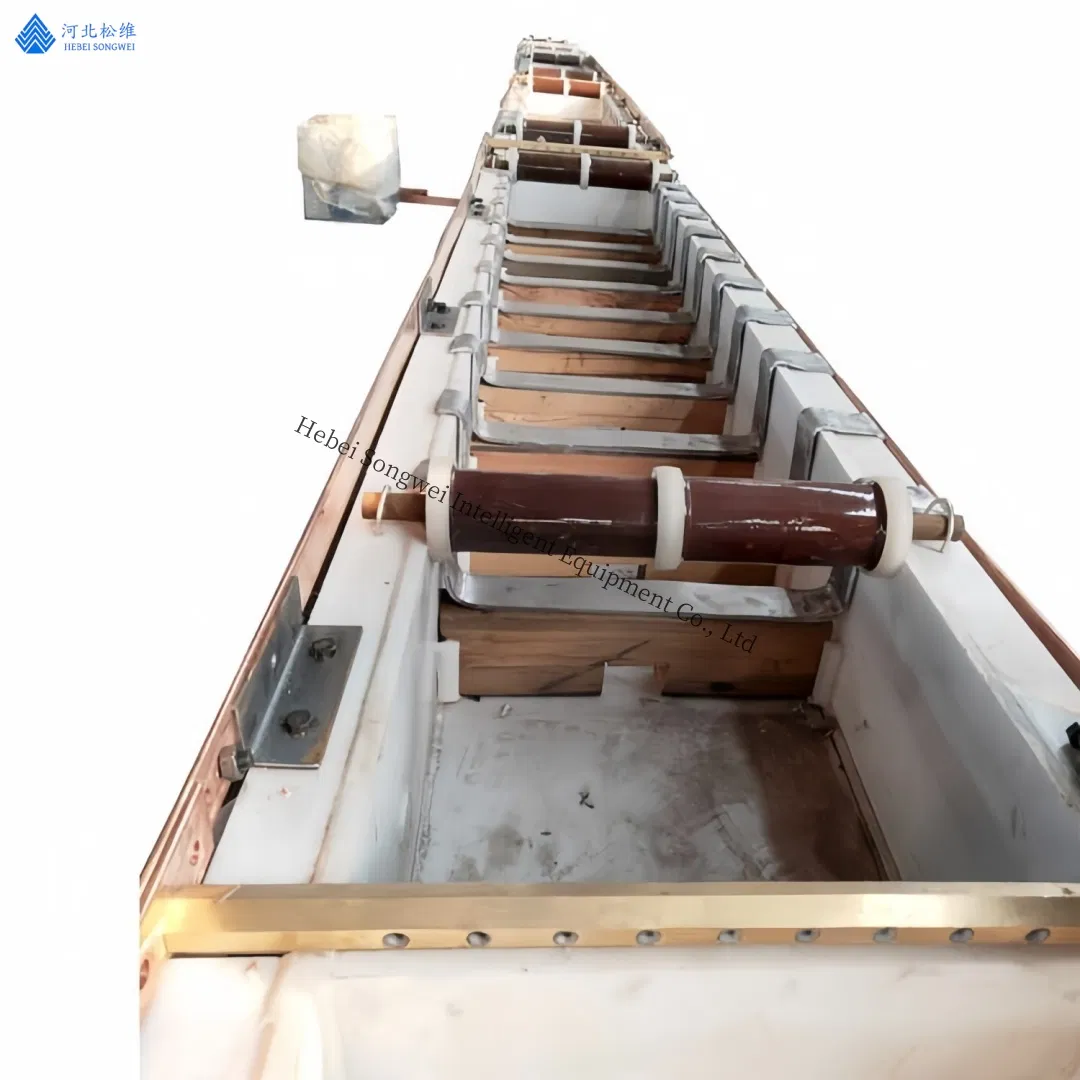

Electro Galvanized Tank
Total 16m length with high frequency inverter.

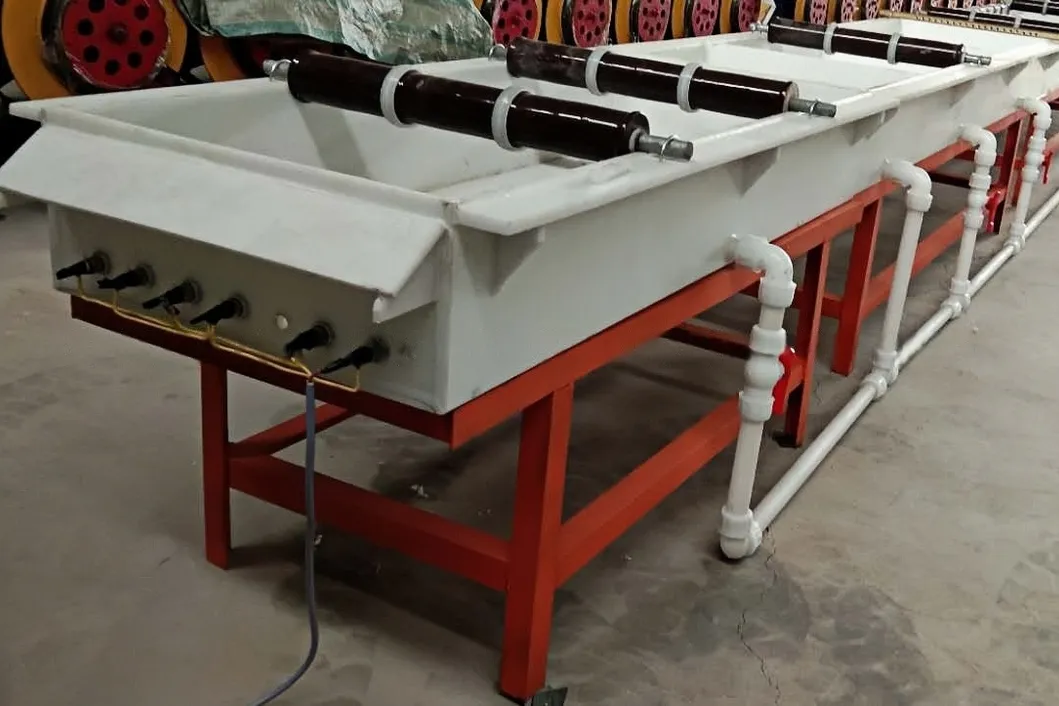

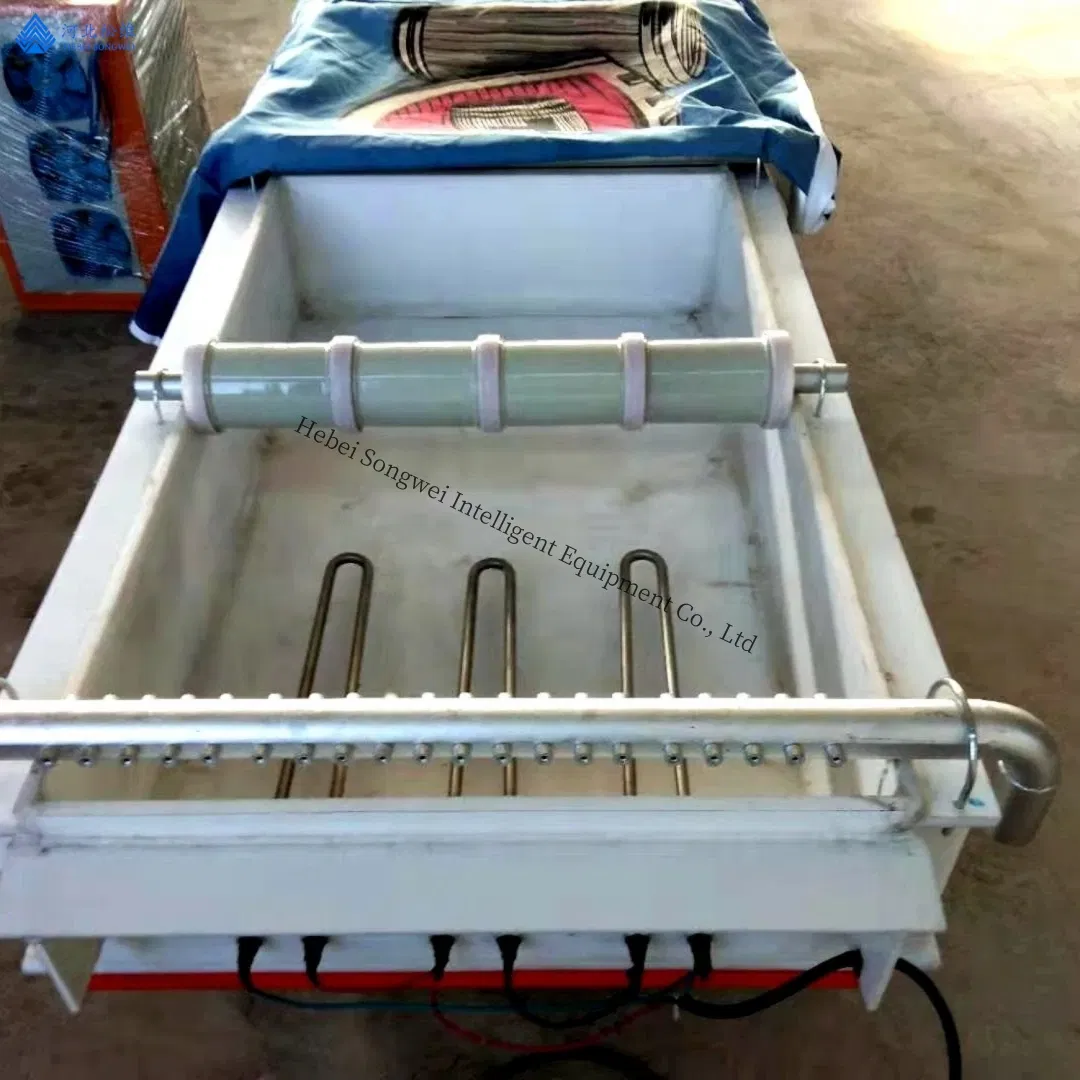

Water Cleaning Tank
Includes air blowing and hot water cleaning.

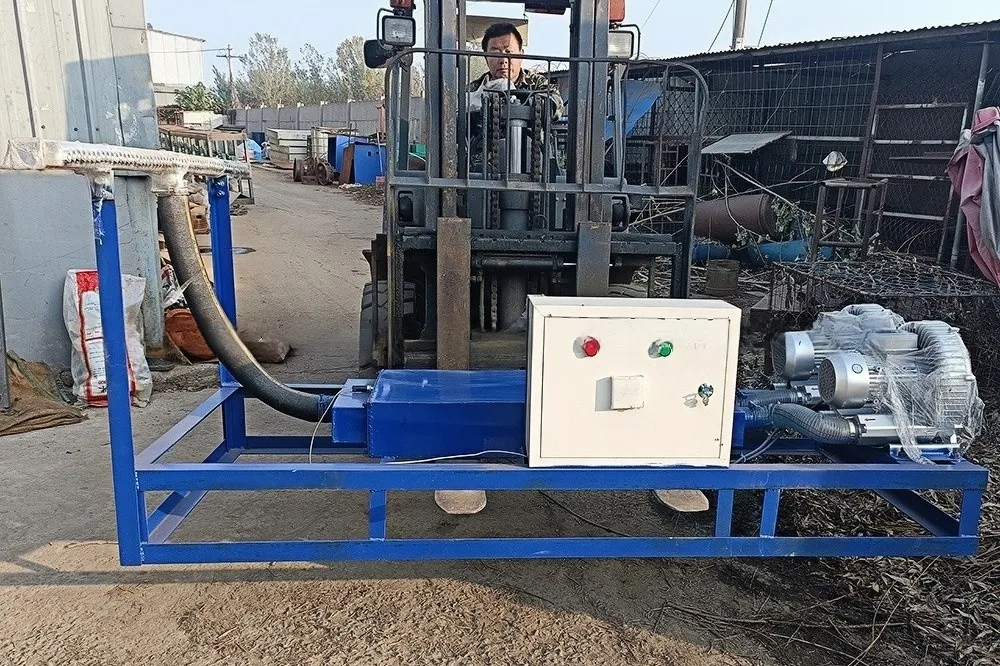

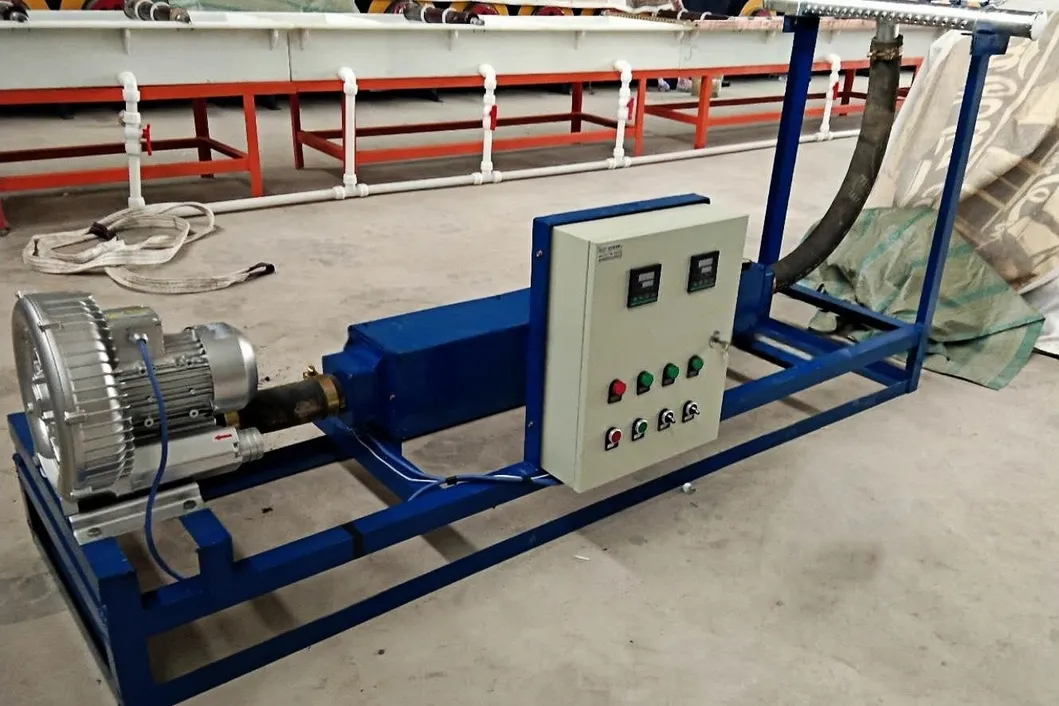

Electric Drying Device
Far infrared heating (2KW) with air-blowing.

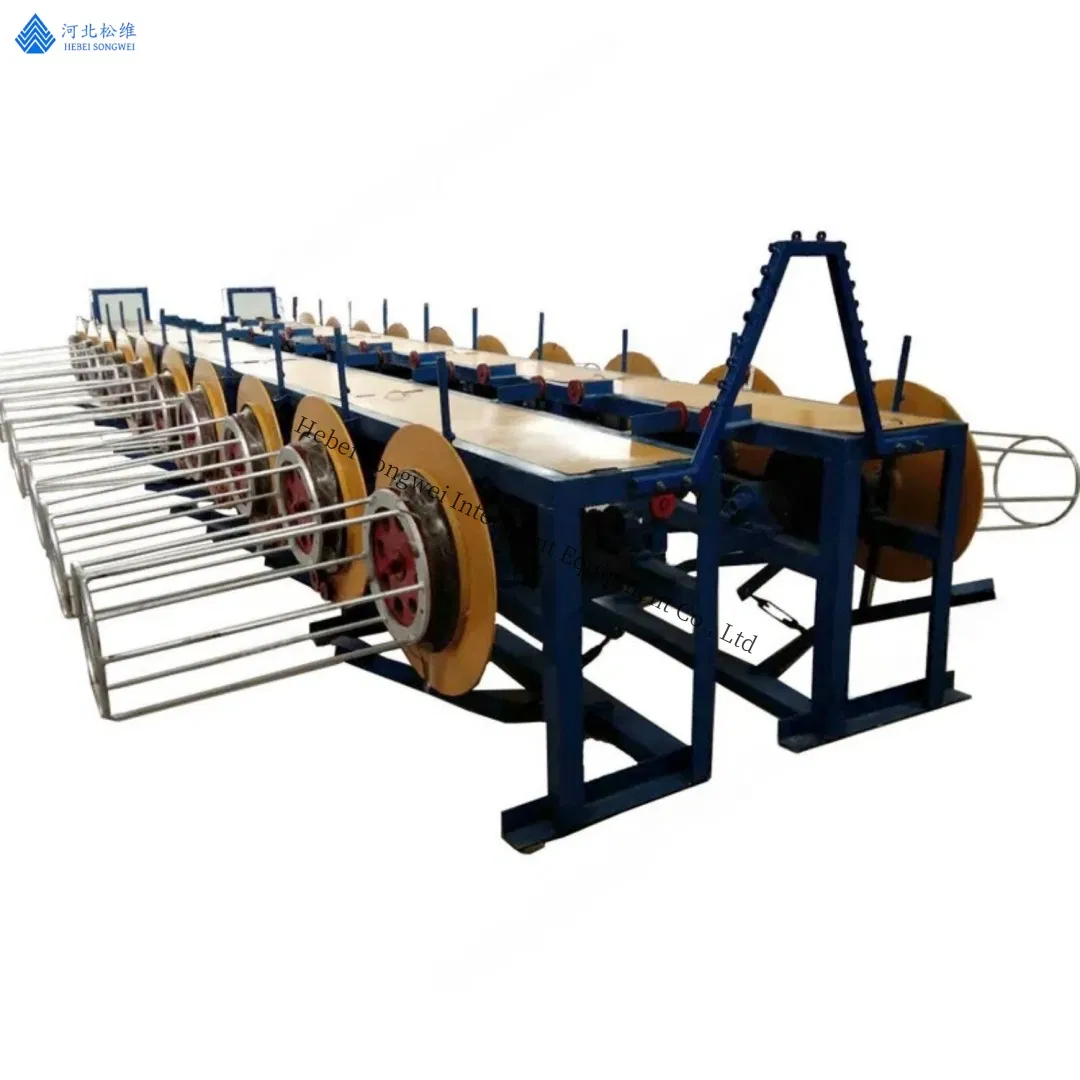

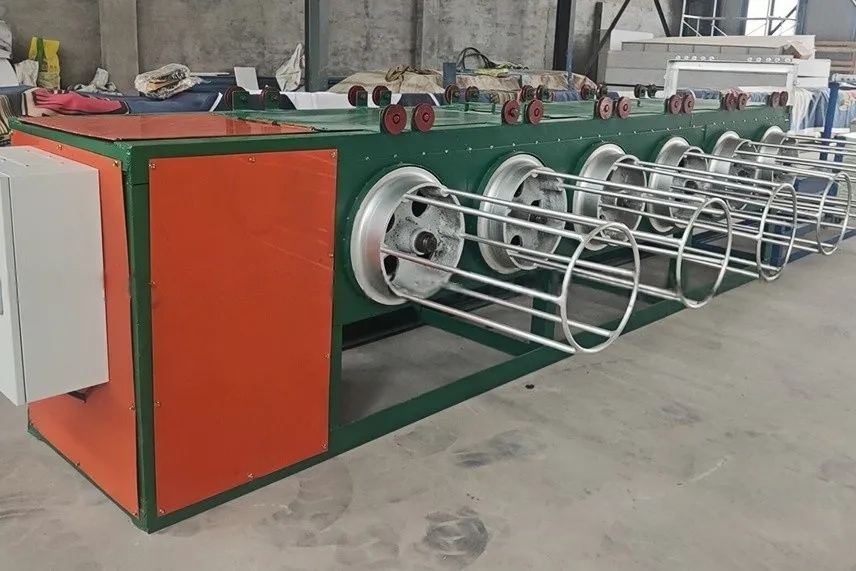

Wire Taking Up Machine
Frequency speed control with gear rack.
All key spare parts are independently produced to control processing accuracy and quality, extending mechanical service life. We have passed ISO9001:2008 and EU CE safety certifications. Our equipment is exported to more than 100 countries including Romania, Turkey, Russia, Egypt, Vietnam, and Brazil.

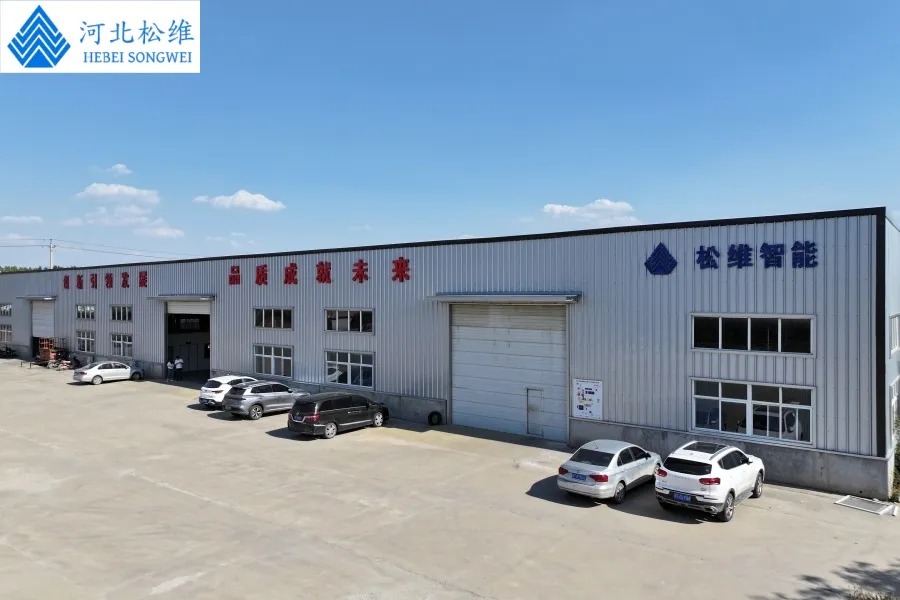

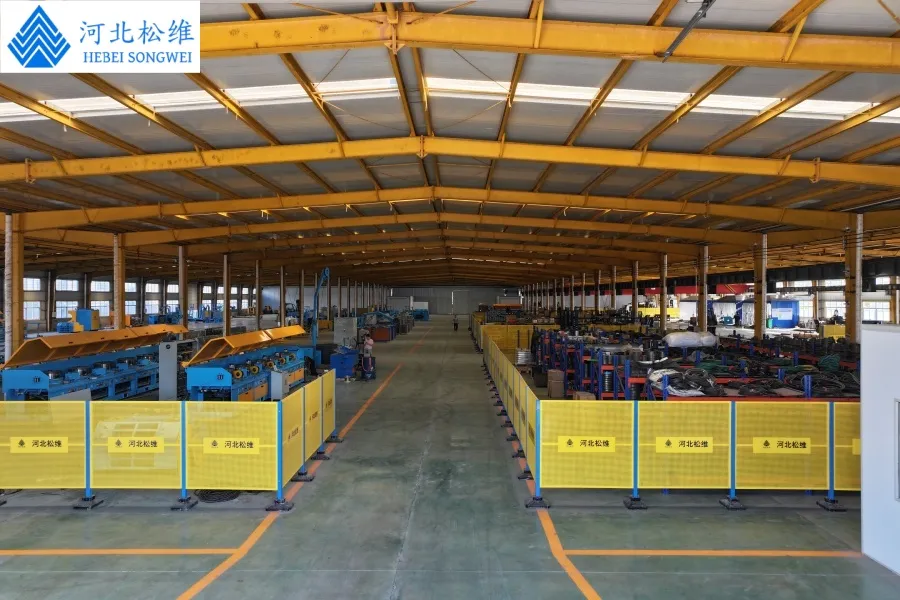

With three production factories and eight specialized workshops across 30,000 square meters, we utilize advanced plasma welding, CNC lathes, and precision machining to build leading steel processing equipment.
