Titanium nitride gold PVD ion plating equipment, Vacuum gold plating system
PVD Ion plating equipment is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: PVD Ion plating equipment can be used to coat metal film, titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
PVD Ion plating equipment is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.

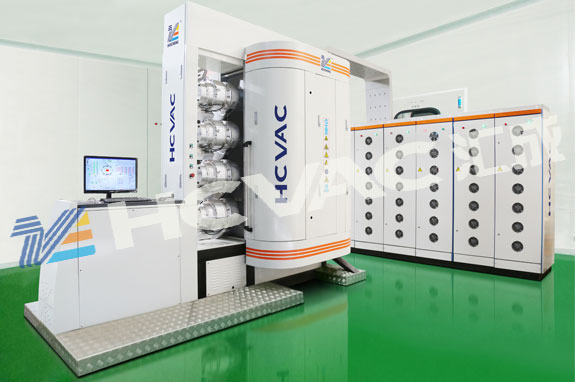

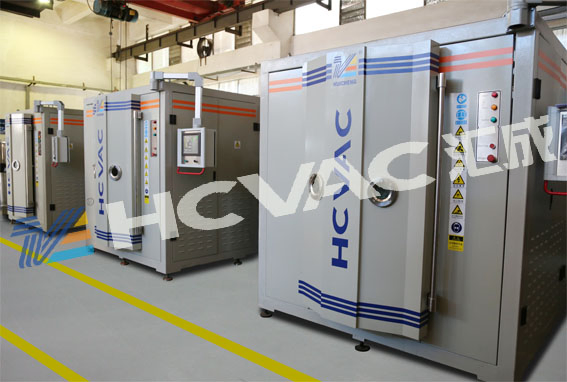

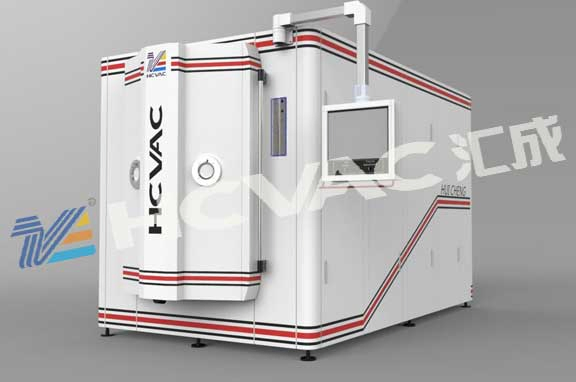

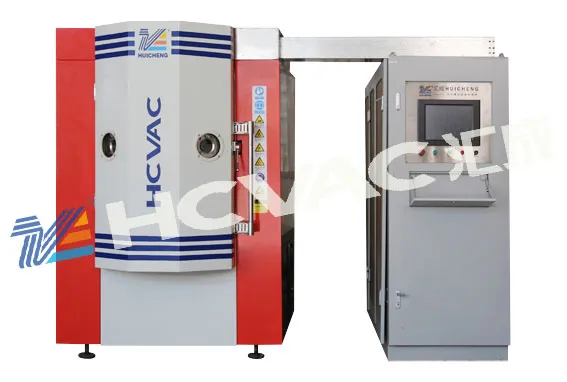

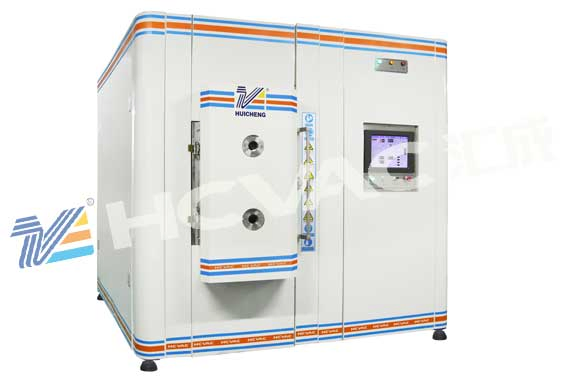

Equipment Display:

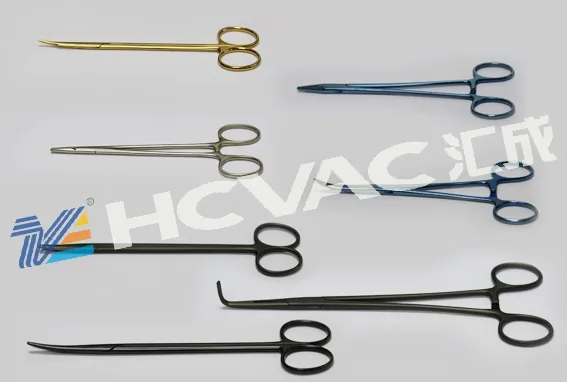

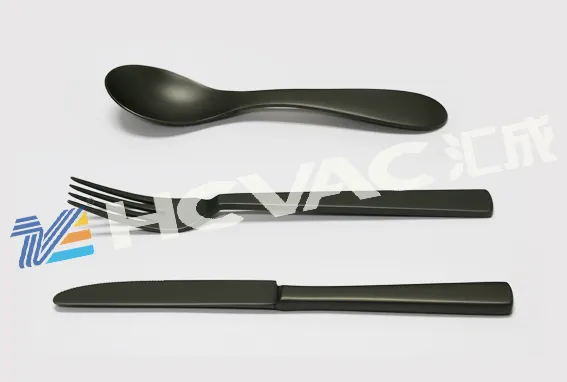

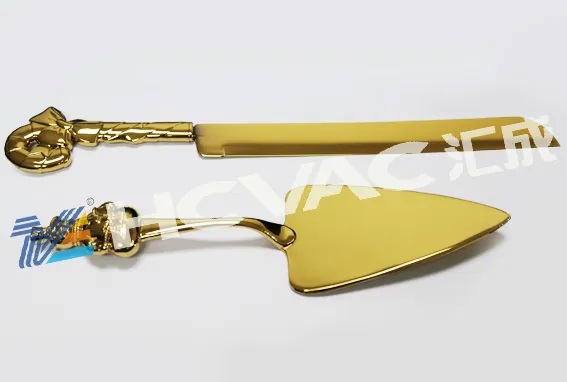

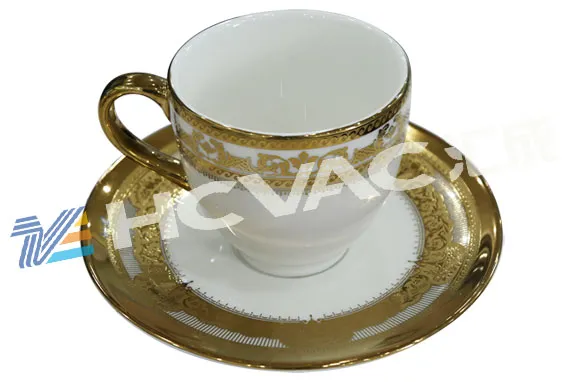

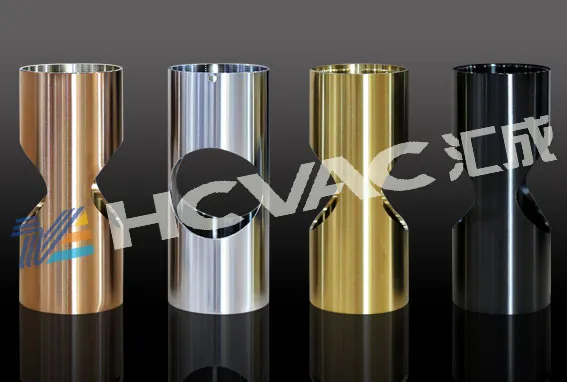

Samples coated by our machine:
| Mode Dimension | LH-800 800*1000mm |
LH-1250 1200*1500mm |
LH-1416 1400*1600mm |
LH-1618 1600*1800mm |
| Coating mode and main configuration | Eight multi-arc targets | Twelve multi-arc targets | Fourteen multi-arc targets | Twenty multi-arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply | |||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | |||
| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling | |||
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa) or Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) | |||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | |||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | |||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa | |||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | |||
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. | |||
