Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail
Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail
Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail
Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail
Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail
1 / 5
Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail
Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail
Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail
Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail
Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail

Gama Medical Surgical Bone System Pfn Titanium Orthopedic Trauma Surgery Femoral Intramedullary Implants Pfna Proximal Femur Interlocking Nail

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

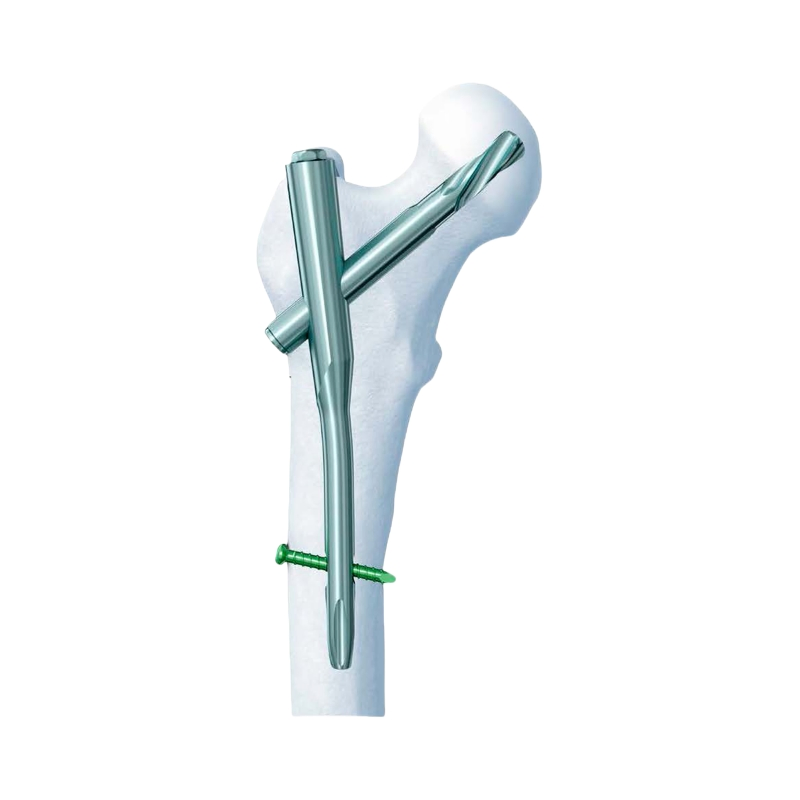

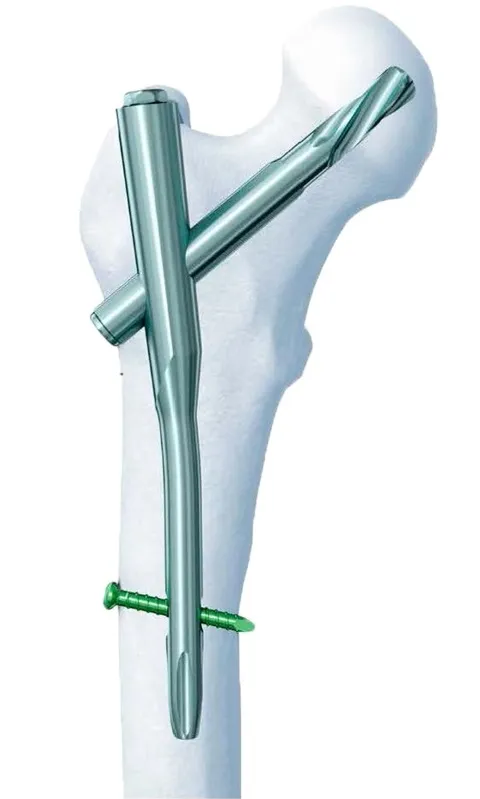

Proximal Femoral Nail System

Model: SGM-IIK
Application: Orthopedic Surgery
Material: Titanium Alloy
Indications: Proximal Femoral Fracture

◈ Product Features:

  • Medial-lateral angle of 5°, allowed to be placed from the top of the greater trochanter.
  • The flattened proximal lateral design makes it easier for nail insertion.
  • Optimal stress distribution.
  • The elastic tip and groove design make it easier to insert the nail and avoid stress concentration at the far end.
Proximal Femoral Nail System
📋 Product Specifications
Product Name Specification Details

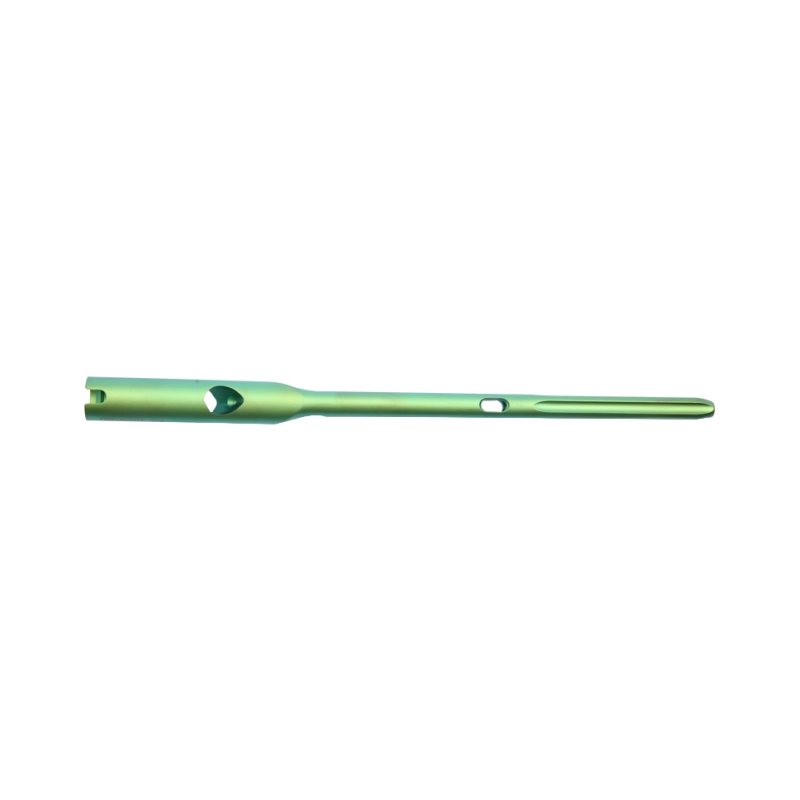

Proximal Femoral Nail Diameter: 9.0/10.0/11.0/12.0mm | Angle: 130° | Length: 170-240mm
Proximal Femoral Nail, Long Diameter: 9.0/10.0/11.0mm | Angle: 130° | Left/Right | Length: 320-420mm

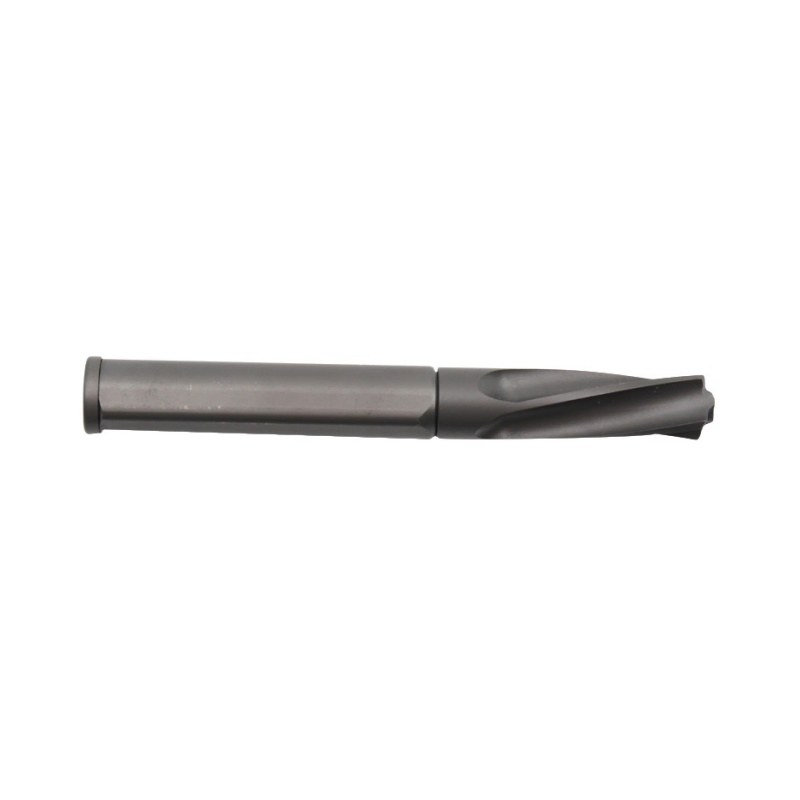

Helical Blade Diameter: 10.5mm | Length: 70-120mm

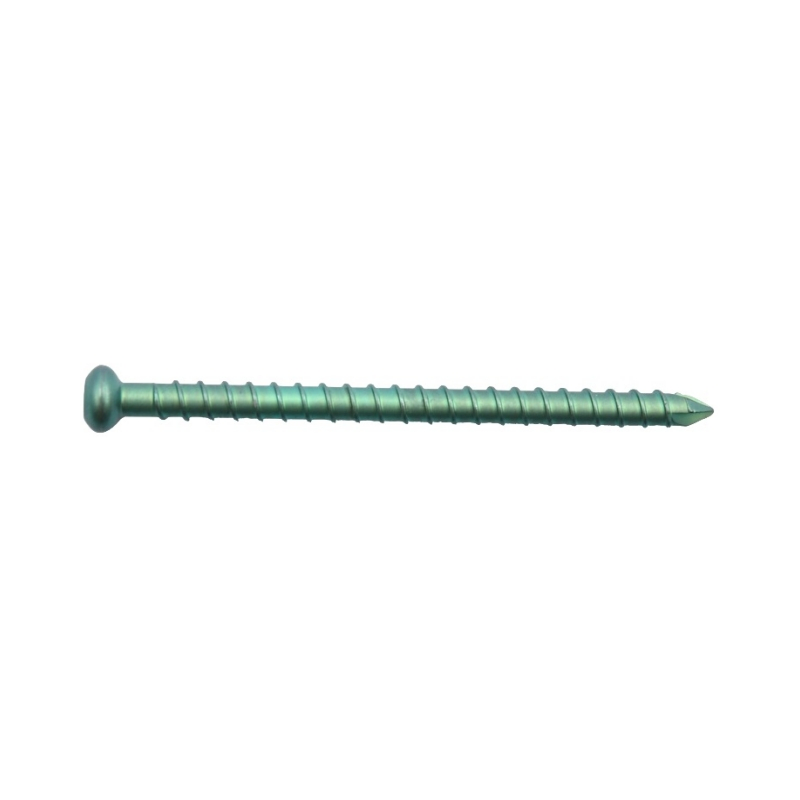

Locking Bolt Diameter: 4.9mm | Length: 30-72mm
End Cap Diameter: 10mm | Length: 15-35mm
🩺 Indications

PFNA Standard:

  • Intertrochanteric fracture (31-A1, 31-A2)
  • Reverse intertrochanteric fracture (31-A3)
  • High position Subtrochanteric fracture

PFNA Long:

  • Low and extended subtrochanteric fractures
  • Ipsilateral trochanteric fracture
  • Multiple fractures in the proximal femur
  • Pathological fracture
🖼️ Product Details Display

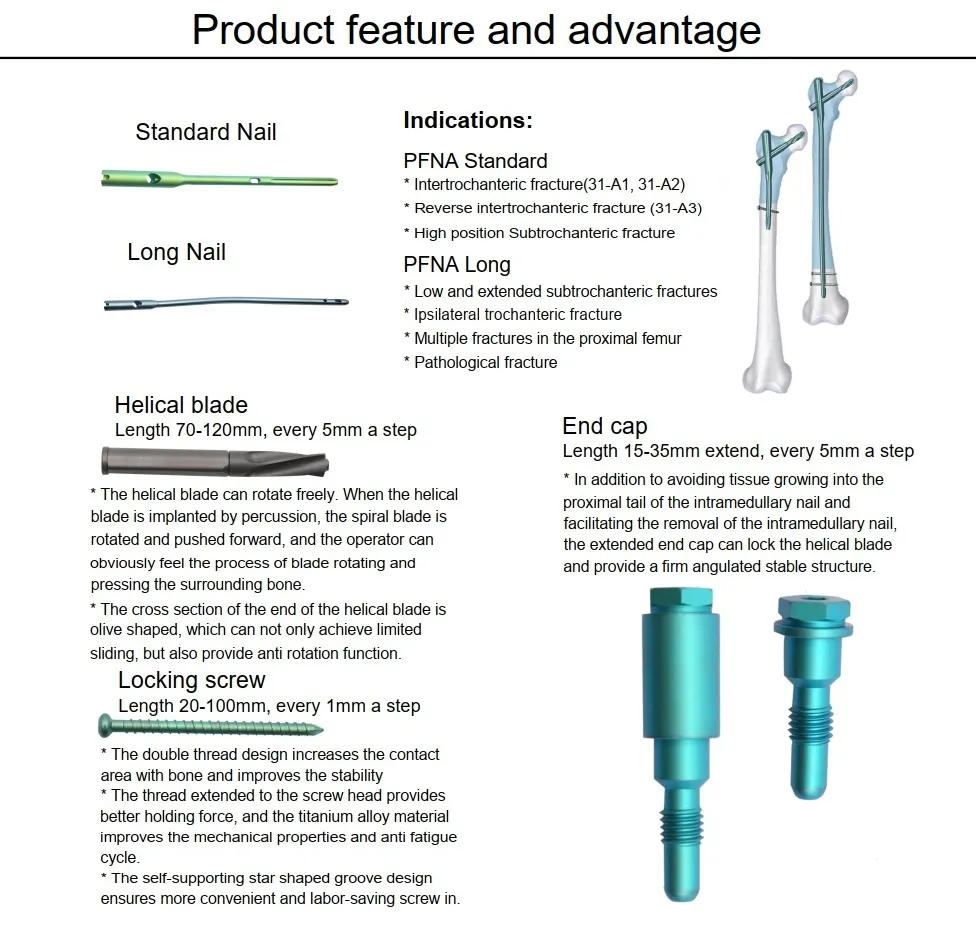

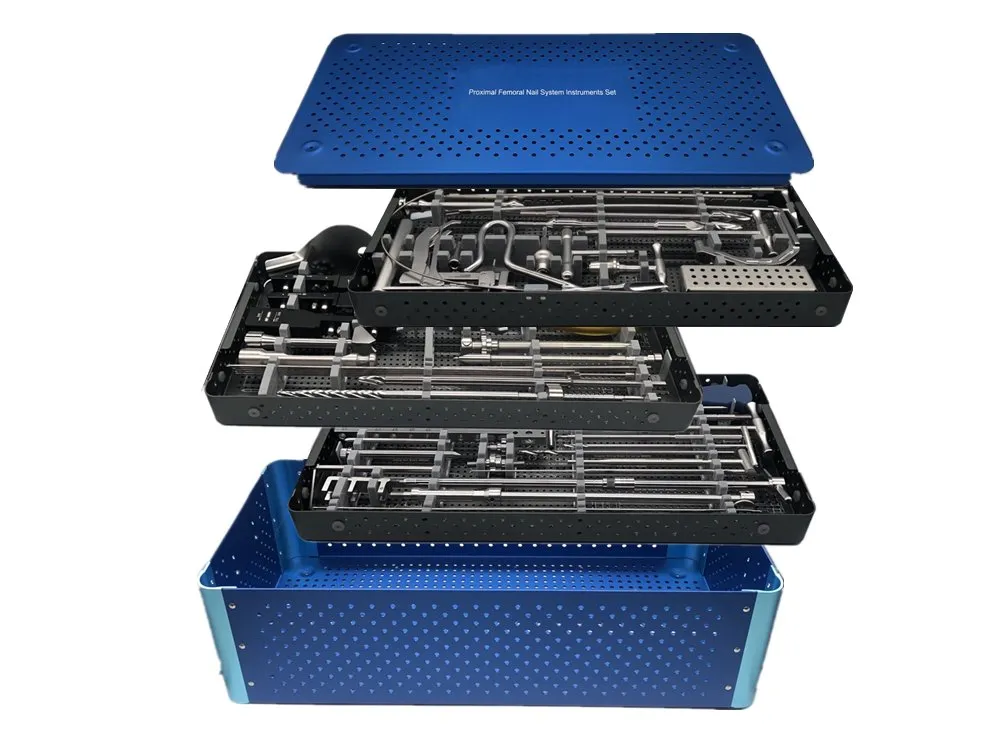

PFNA Details 1 PFNA Details 2
📦 Packing & Delivery

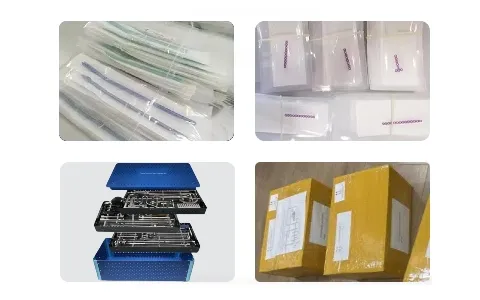

Packing 1 Packing 2

Packing Details:

  • Implants: Inner plastic bag + outer carton box.
  • Instruments Set: Inner instruments box + outer carton box.
  • Customized packing design service also available.

Delivery Way:

  • By air, DHL, UPS, FedEx etc.
  • Shipping Time: 3-5 Working Days for stock items.
🏭 Factory & Production

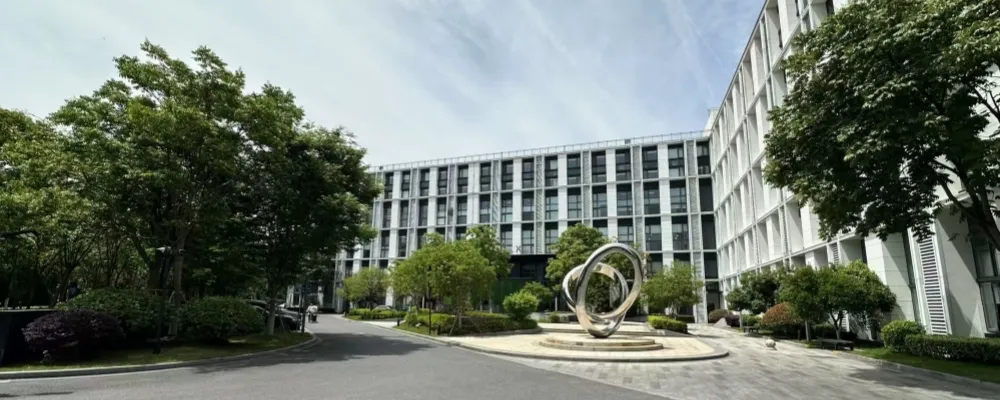

Factory Overview

Focus: One-stop orthopedic product solution provider since 2016.

Capacity: 10,000 units/month with exports to Southeast Asia, Middle East, Latin America, Africa, and Europe.

Factory Advantages: 30,000 square meters area equipped with high-end CNC machining equipment from the USA and advanced quality detection systems from Japan.

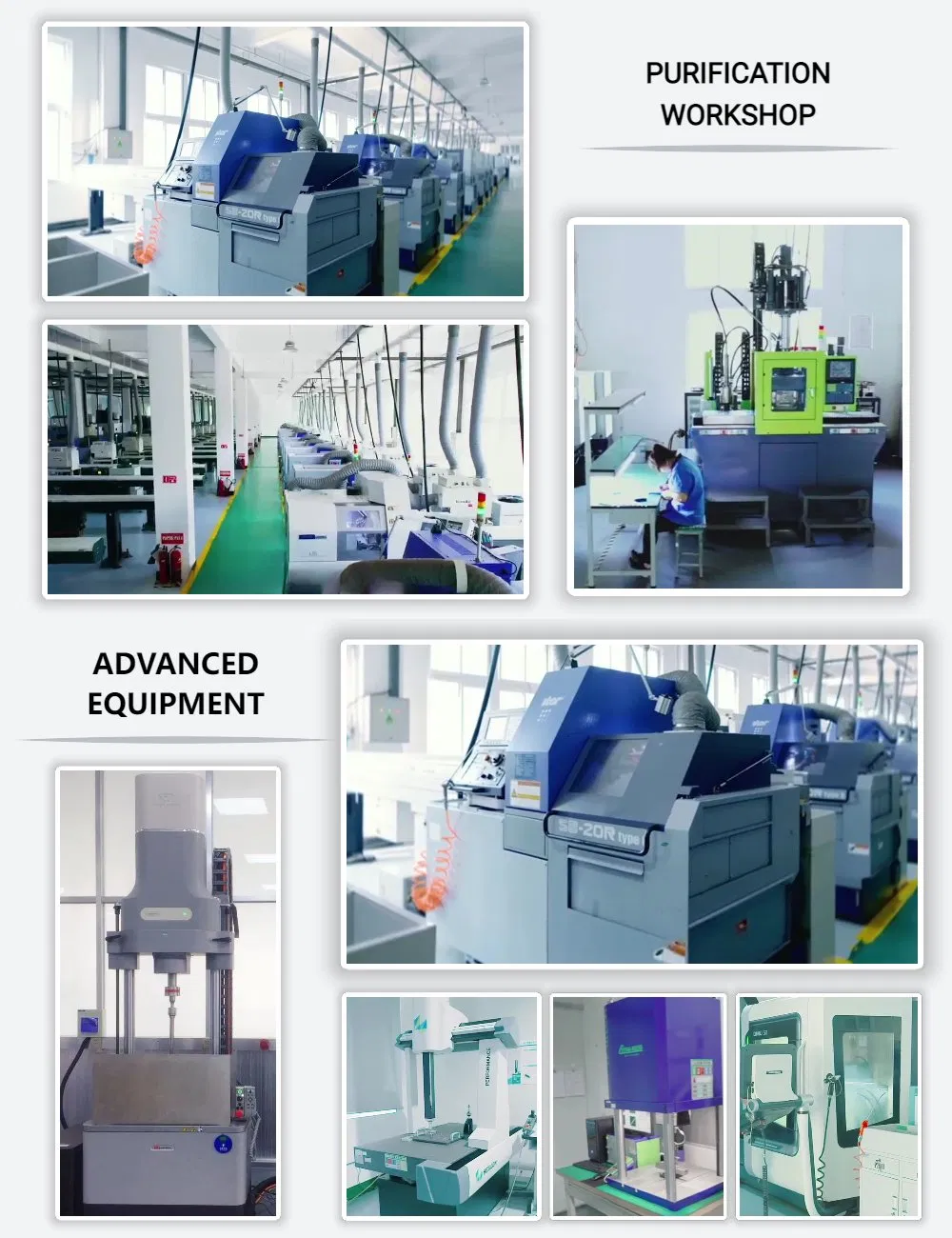

Machinery
🏆 Certifications & Exhibitions
Certifications Exhibitions
❓ FAQ
Q: Do you hold international quality certifications? A: Yes, we are an ISO 9001:2015 and EN ISO 13485:2016 Certified Company.
Q: What are the shipping modes and delivery times? A: We typically ship via DHL, UPS, or FedEx. Stock items take 15-30 days, while non-stock items take 30-60 days depending on the quantity.
Q: Are samples available for testing? A: Yes, samples can be provided, though they may carry an extra cost.
Q: Do you offer OEM/ODM services? A: Yes, OEM and ODM customization services are available to meet specific surgical requirements.
Q: What is the return policy for defective products? A: For any defective goods, please provide clear photos for confirmation. Once verified, we will provide a replacement.
Q: What materials are used for the implants? A: Our Proximal Femoral Nail System is primarily manufactured from high-grade Titanium Alloy for optimal biocompatibility and strength.
