Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
1 / 5
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.
Continuous Feed Blasting System for Steel Plating.

Continuous Feed Blasting System for Steel Plating.

Customization: Available
After-sales Service: 1 Year Warranty and Consult Forever
Warranty: 12 Months From Date of Commissioning Completion.
Send Inquiry

Product Description

📋 Overview

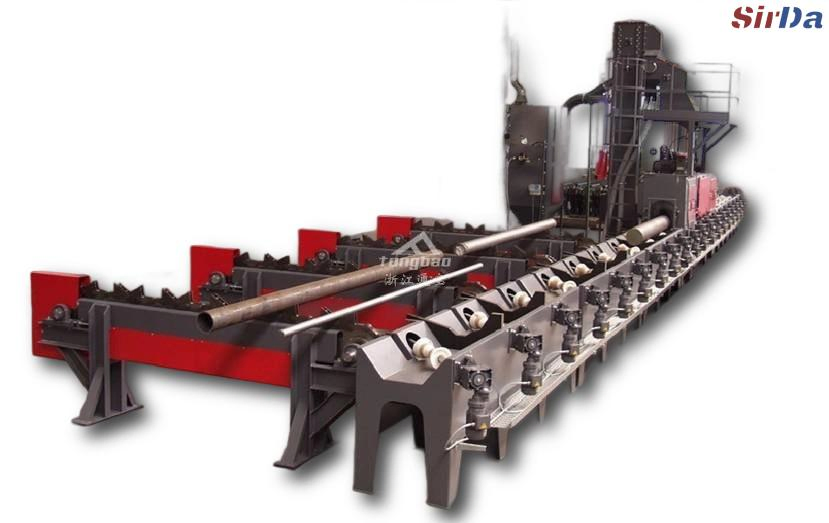

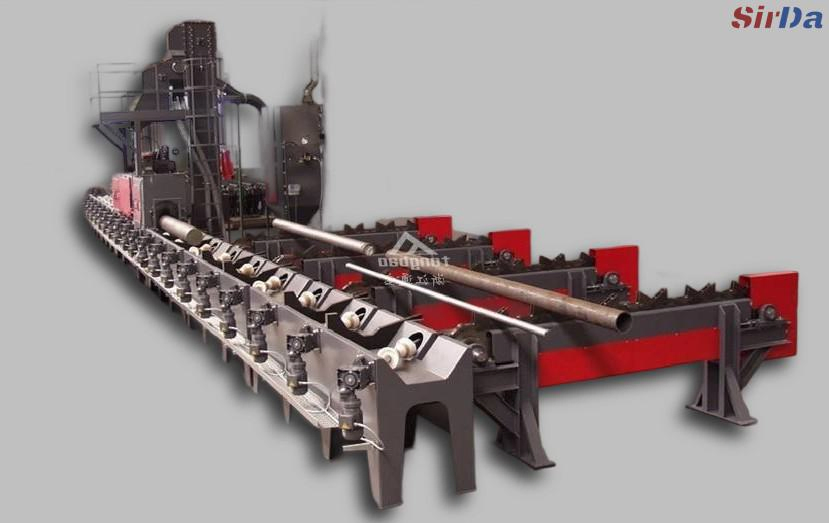

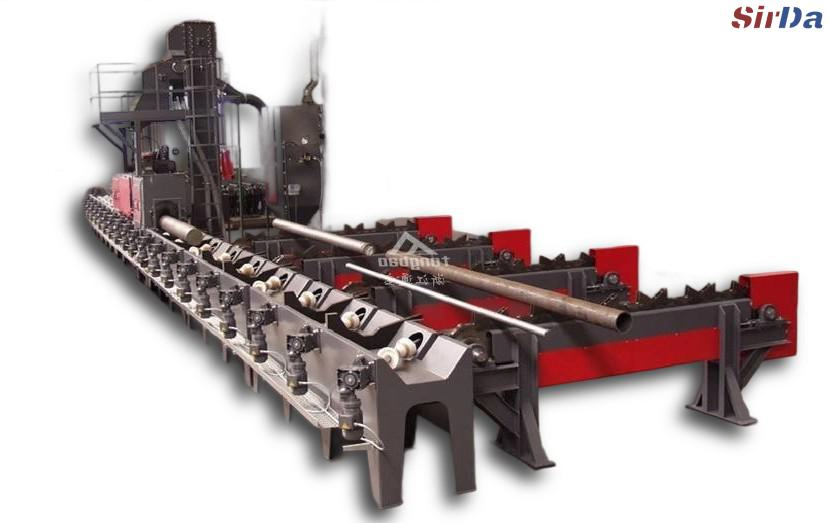

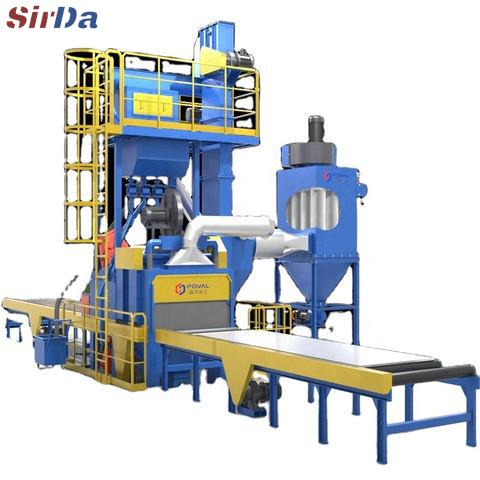

Q69 Series Roller Conveyor Type Shot Blasting Machine

The Q69 series roller conveyor type shot blasting machine is engineered to clean the external surfaces of steel pipes, round bars, drilling rods, and more. It efficiently removes rust, oxide layers, and paint films while intensifying the metal surface.

🎯
Scale Removal
Removing scale and rust from metal profiles and sheet metal components.
🏗️
Surface Treatment
Ideal for H-beams, steel plates, profiles, angle steel, and pipes.
⚙️
Complex Structures
Sandblasting cleaning of complex welded structures including top/bottom plates and ribs.
💡 Basic Specifications
Model NO.Q69 Shot Blast Machine
ApplicationSteel Plate Pre-Treatment
FuelElectric
AutomationAutomatic
CleanlinessHigh Cleanliness (SA 2.5)
CertificationCE, RoHS
Core PartsPLC, Engine, Bearing, Gearbox, Motor
Cleaning TypeClean-in-Place (CIP)
🔧 Technical Components

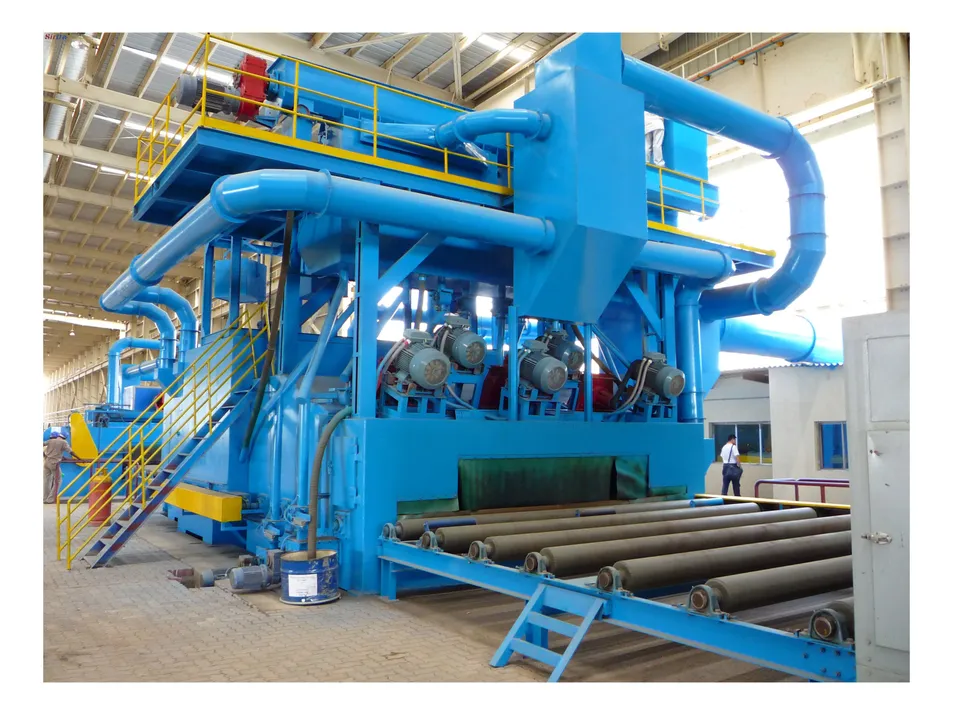

Shot Blast Cabinet

Roller Conveyor System

  • Components: Feed roller, intermediate rollers, discharge roller.
  • Load Capacity: 2 tons/meter.
  • Roller Speed: 0.5–4 meters/minute (Variable-speed).
  • Protection: Rollers protected by special alloy sleeves (>4,000 hours life).

Blast Chamber Design

  • Structure: Main blast chamber + two auxiliary chambers.
  • Sealing: Four layers of rubber curtains in auxiliary chambers.
  • Protection: Walls lined with SPMn13 and 65Mn protective lining for easy replacement.
  • Electrical: PLC Controlled (Siemens/Omron) with Emergency Stops.
Blast Chamber
Abrasive Removal Unit

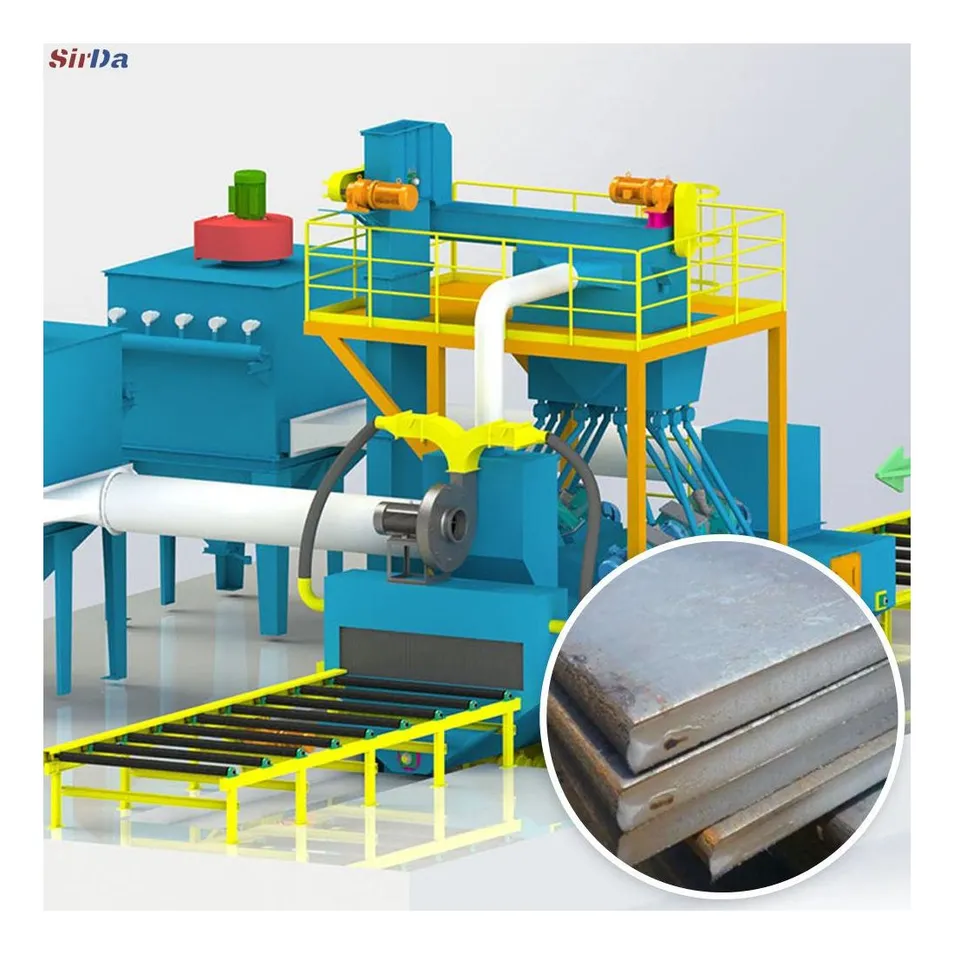

Abrasive Removal Unit

Features a rotating brush with interchangeable segments to clean spent media off workpieces. Includes a screw conveyor for media circulation and a high-pressure blow-off station for a final clean finish.

⭐ Key Advantages
🛡️ High Stability: Mature technology with low failure rates.
🌿 Eco-Friendly: Advanced dust removal (80g/m³ emission).
🛠️ Customizable: Tailored to specific steel dimensions.
⚡ Efficiency: Integrated cross-feeding system support.
📜 Certified: Full CE certification for global standards.
📦 Production: Prompt delivery with rigorous quality inspection.
📊 Technical Parameters

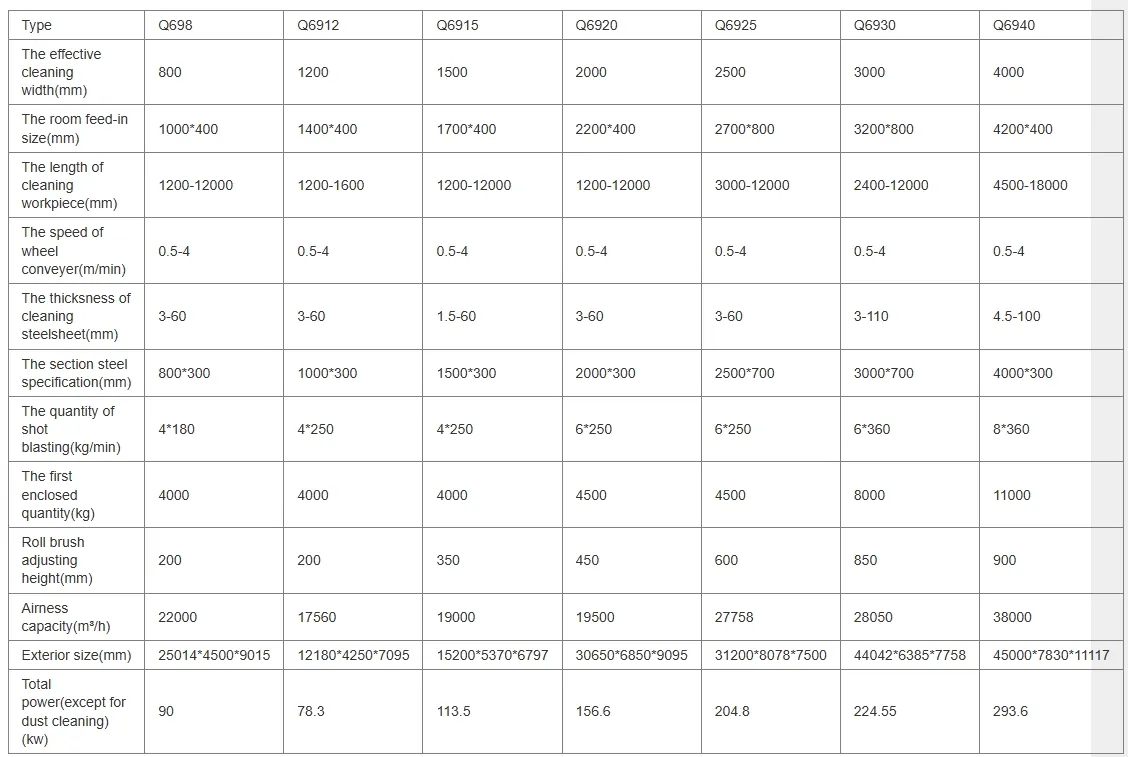

Parameters Table
📜 Quality Certifications
Cert 1
Cert 2
🚢 Packaging & Shipping

Packaging: 40'HQ container

Lead Time: Approximately 30-50 days

Shipping
Frequently Asked Questions
How long is the production lead time?
Standard machines may be in stock for immediate delivery. Specially designed or customized equipment typically requires 30 to 50 days from engineering design to completion.
How do you ensure the quality of the machinery?
We prioritize quality control at every stage. Each machine is fully assembled and undergoes rigorous testing before shipment to ensure perfect working condition.
What is the warranty period for your equipment?
We provide a one-year quality guarantee. We utilize world-renowned brand components (such as Siemens and Omron) to maintain high performance and reliability.
Do you offer overseas installation and training?
Yes, we provide overseas service. We can dispatch technicians to assist with installation, commissioning, and staff training. The duration varies from 5 days for small units to 30+ days for large systems.
What documentation is provided with the machine?
We supply comprehensive English documentation, including foundation drawings, operation manuals, electrical wiring diagrams, and maintenance guides.
Can the machine be customized for specific workpiece sizes?
Absolutely. We specialize in designing and manufacturing non-standard steel pretreatment equipment based on the specific dimensions and requirements you provide.
