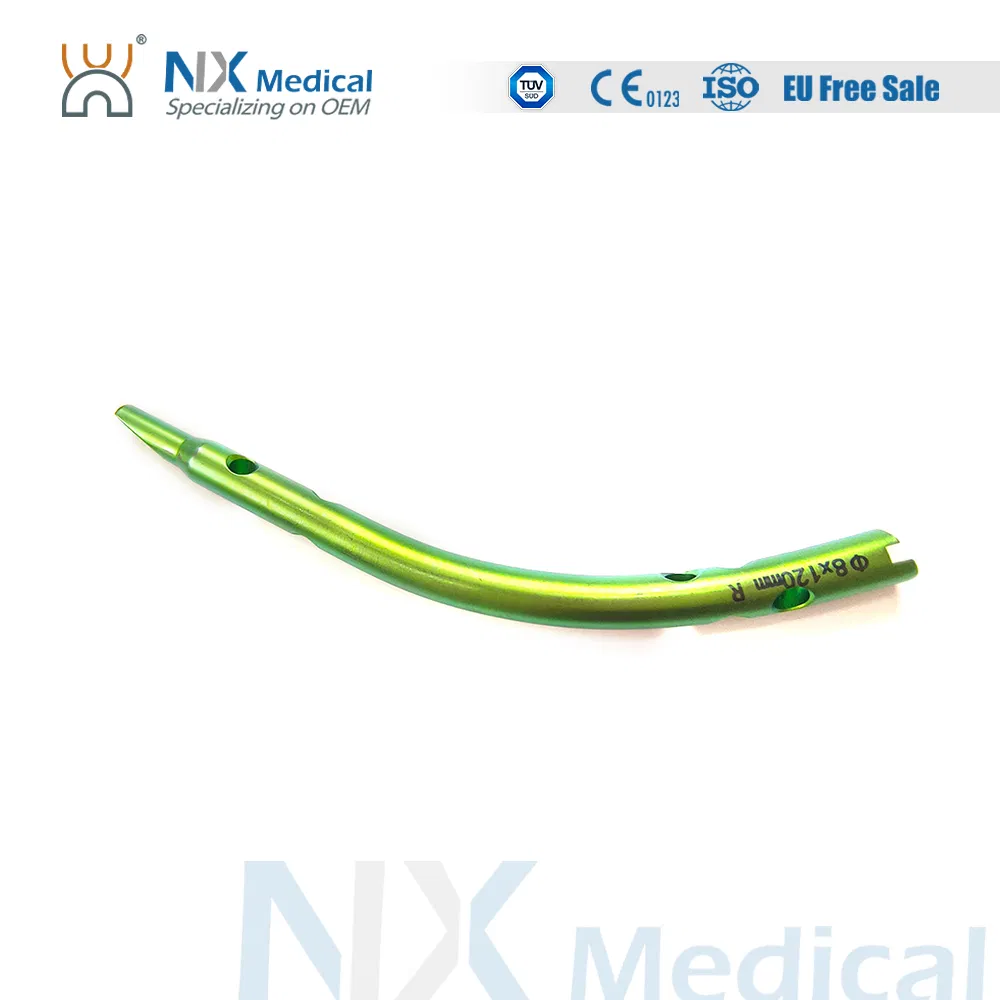

China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail

Still deciding? Get samples of $ !
Request Sample

Product Description

📋
Basic Information
Model NO.:
NXGGK01
Usage:
Fracture Fixation
Using Site:
Tibia
Certification:
ISO, CE
Material:
Titanium (TA)
Guarantee:
Two Years
Group:
Adult
Sterilization:
Non-Sterilized Package

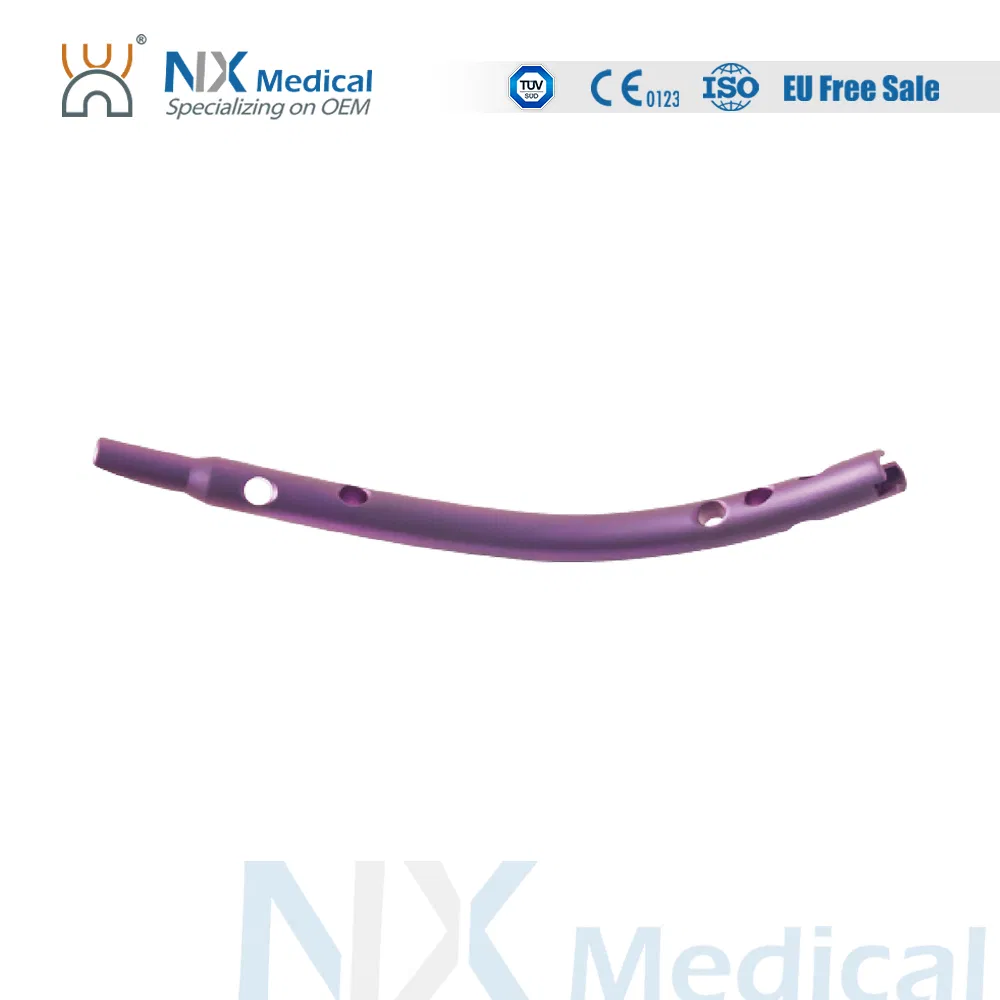

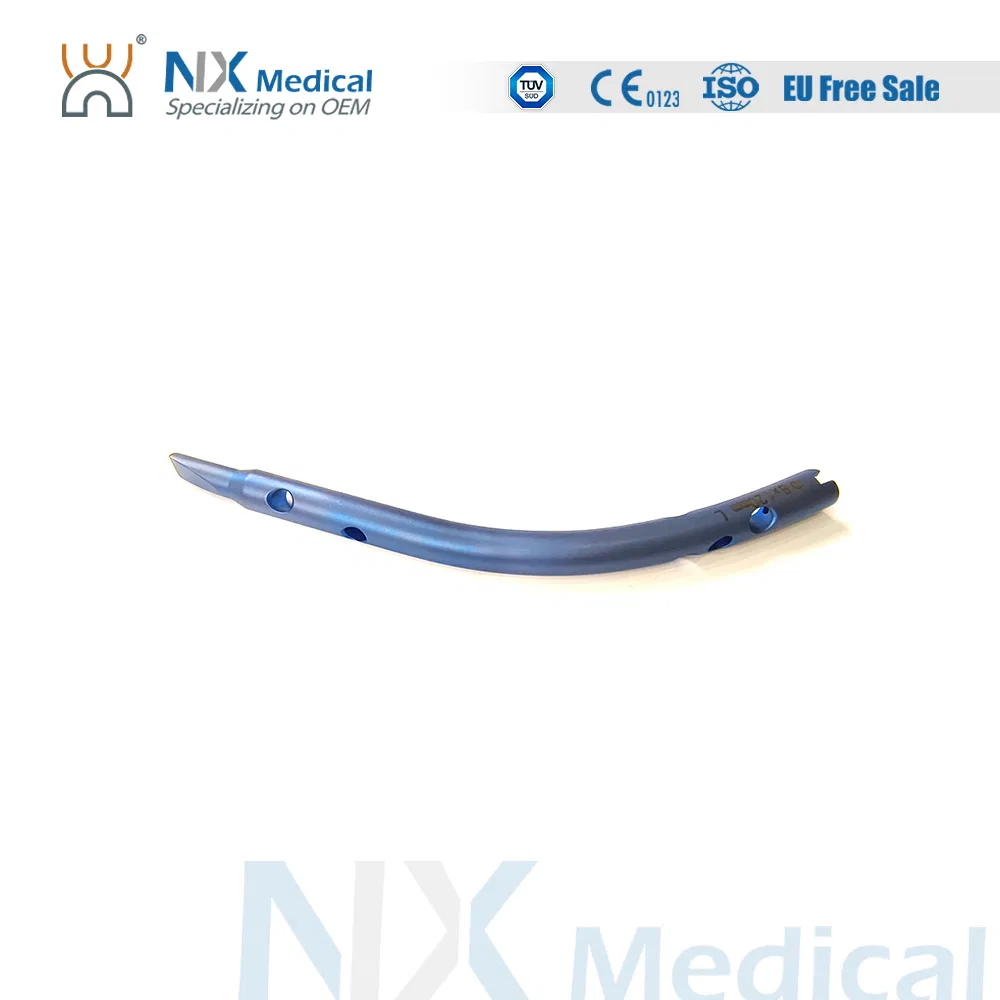

Titanium Retrograde Tibial Intramedullary Nail
Orthopedic Trauma Implant
⚙️
Retrograde Tibial Nail System

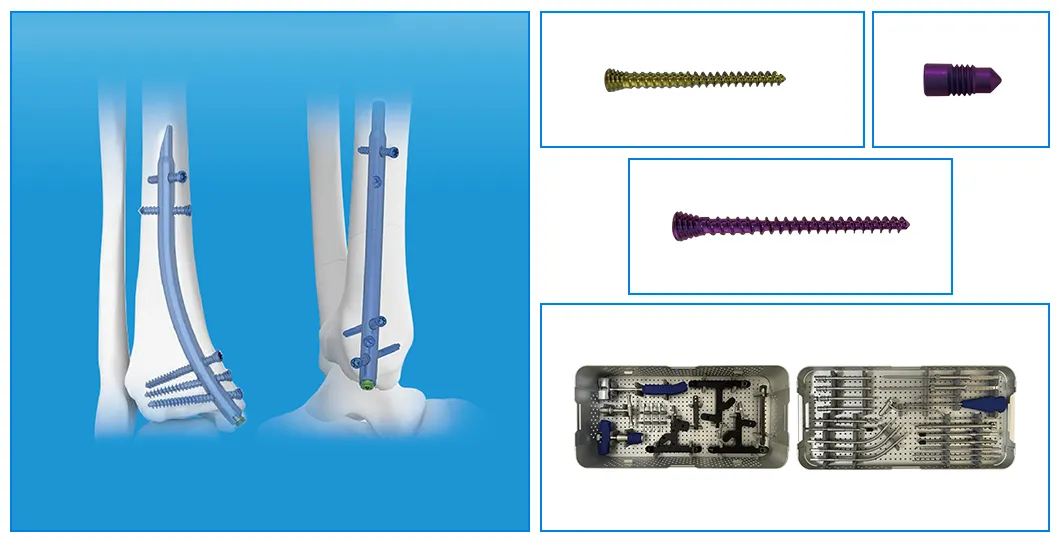

Retrograde Tibial Nail Features
Key Features and Benefits:
Colour coding to easily differentiate nail sizes

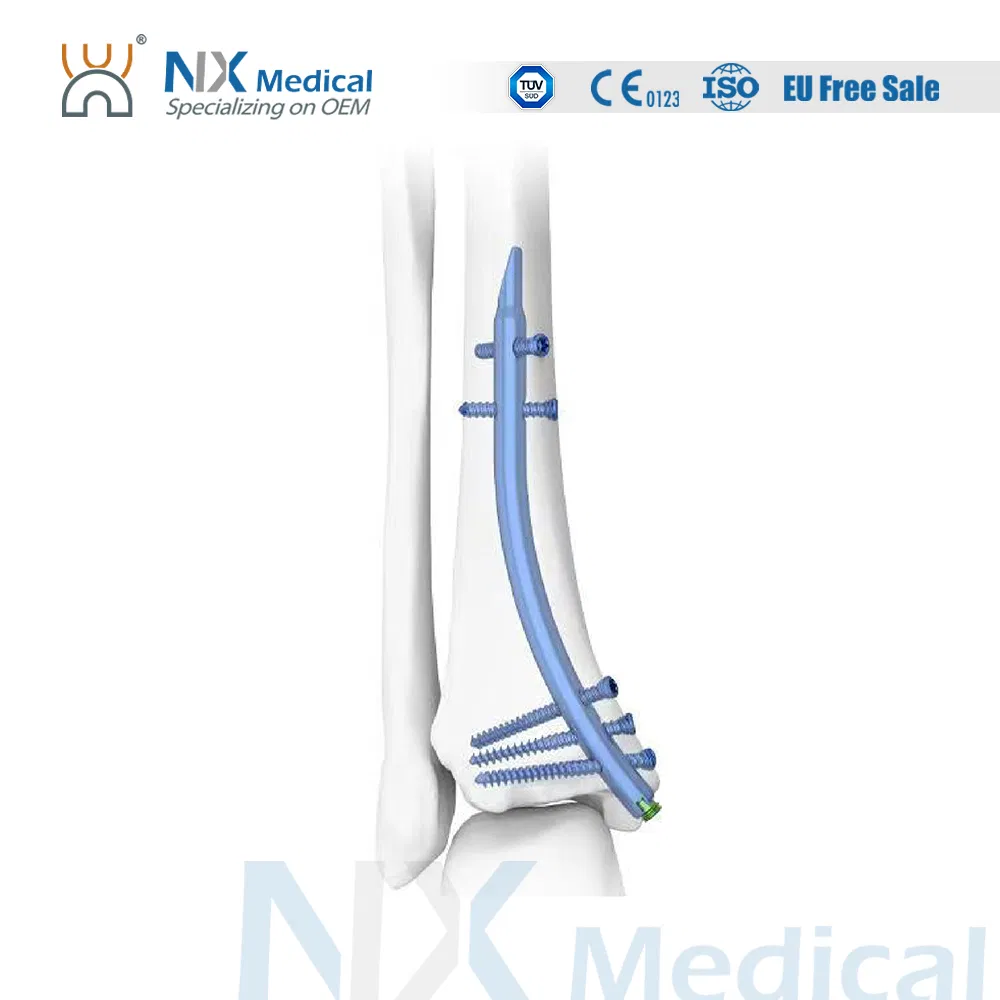

Proximal oblique cutting design reduces irritation to soft tissues of medial malleolus
Two proximal interlocking screws avoid fracture rotation and displacement
Distal flat cutting design avoides the insertion difficulties
Three distal divergent locking screws provides effective support and fixation
Advanced user-friendly instruments facilitate precise nail insertion
Carbon fiber jigs facilitate first distal screw insertion position preparation
📊
Product Specifications
Product Size / Length (mm) Material
Retrograde Tibial Nail 7 x 110 / 8 x 120 / 8 x 140 TA (Titanium)
Interlocking Cancellous Screw (φ3.5mm) 30 - 52 (2mm increments) TA (Titanium)
Interlocking Cortical Screw (φ3.5mm) 18 / 20 / 22 / 24 / 26 / 28 TA (Titanium)
Interlocking Cortical Screw (φ4.0mm) 24 / 26 / 28 / 30 / 32 / 34 TA (Titanium)
Retrograde Tibial Nail End Cap Standard / 5mm TA (Titanium)
🏢
Company Profile

Our company is one of the leading Orthopedic product manufacturers located in the East of China. We provide a comprehensive range of cost-effective surgical and reliable therapeutic solutions to Orthopedic surgeons and patients. We offer superior and various kinds of Orthopedic trauma implants, spinal implants, and surgical instruments worldwide.

Our major trauma categories include locking plates, Intramedullary nails, cannulated headless screws, and cable systems. For spinal systems, we offer cervical plates, pedicle screws, PEEK cages, and expandable cages. All our products are in compliance with ISO13485, and certified by TUV CE0123 and NMPA.

Manufacturing Facility

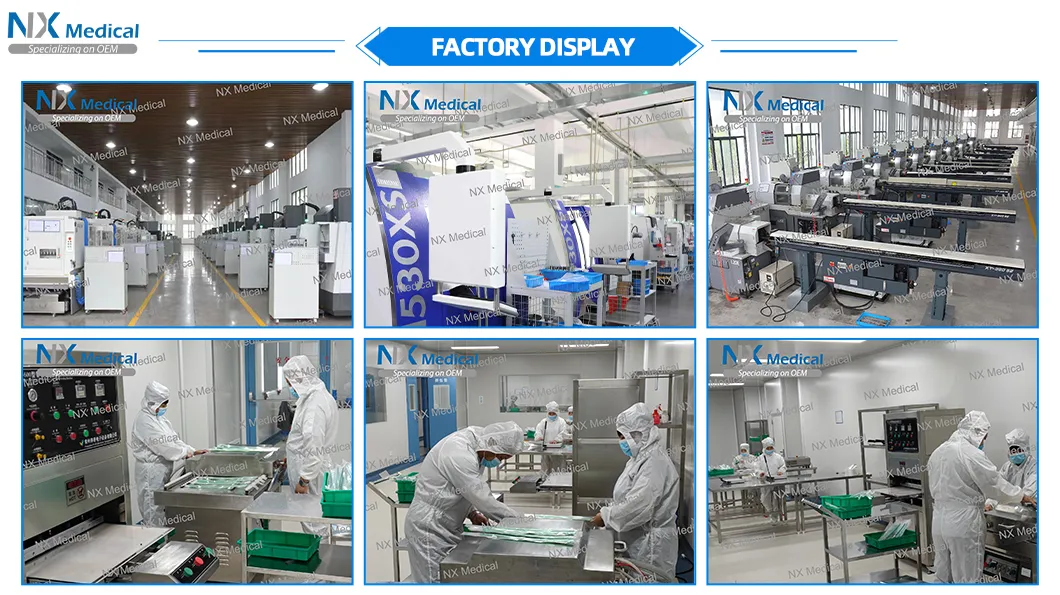

Production Line

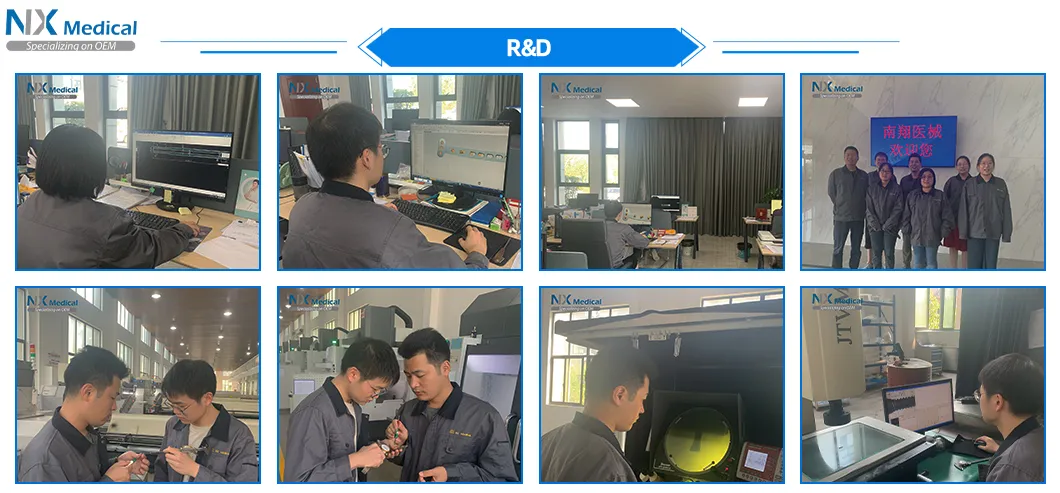

Quality Control
📜
Certifications

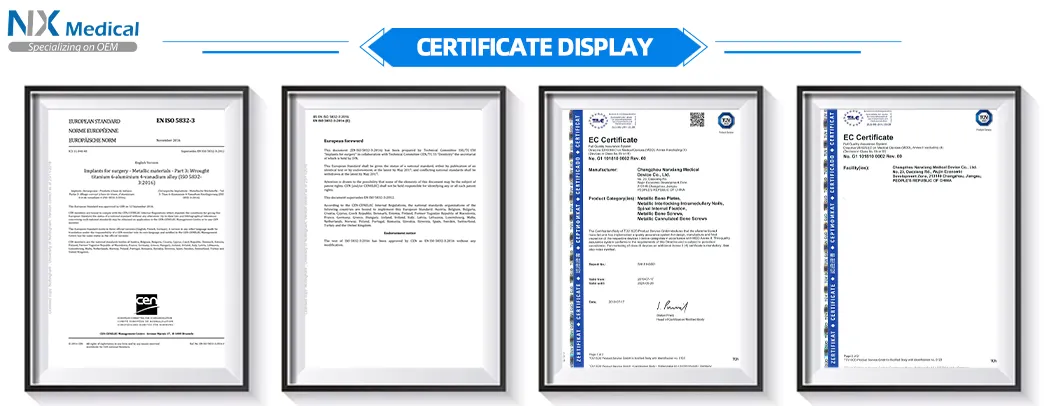

ISO and CE Certifications
Frequently Asked Questions
Q1. Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. Can you accept customized products?
Yes, we have a complete design and drawing department and CNC machines. We can provide high-precision customized services based on your requirements.
Q3. How to proceed with an order?
Firstly, let us know your requirements. Secondly, we quote according to your needs. Thirdly, the customer confirms the samples and places a deposit. Fourthly, we arrange the production.
Q4. What is the sample lead time?
For existing items, samples are ready within 3 days. For OEM/customized products, it usually takes approximately 2 weeks.
Q5. Can you brand products with our logo?
Yes, we can print your logo on both the products and the packaging once our MOQ requirements are met.
Q6. How do you ensure product quality?
We conduct strict sampling inspections before shipment and ensure all product packaging is intact and secure.
